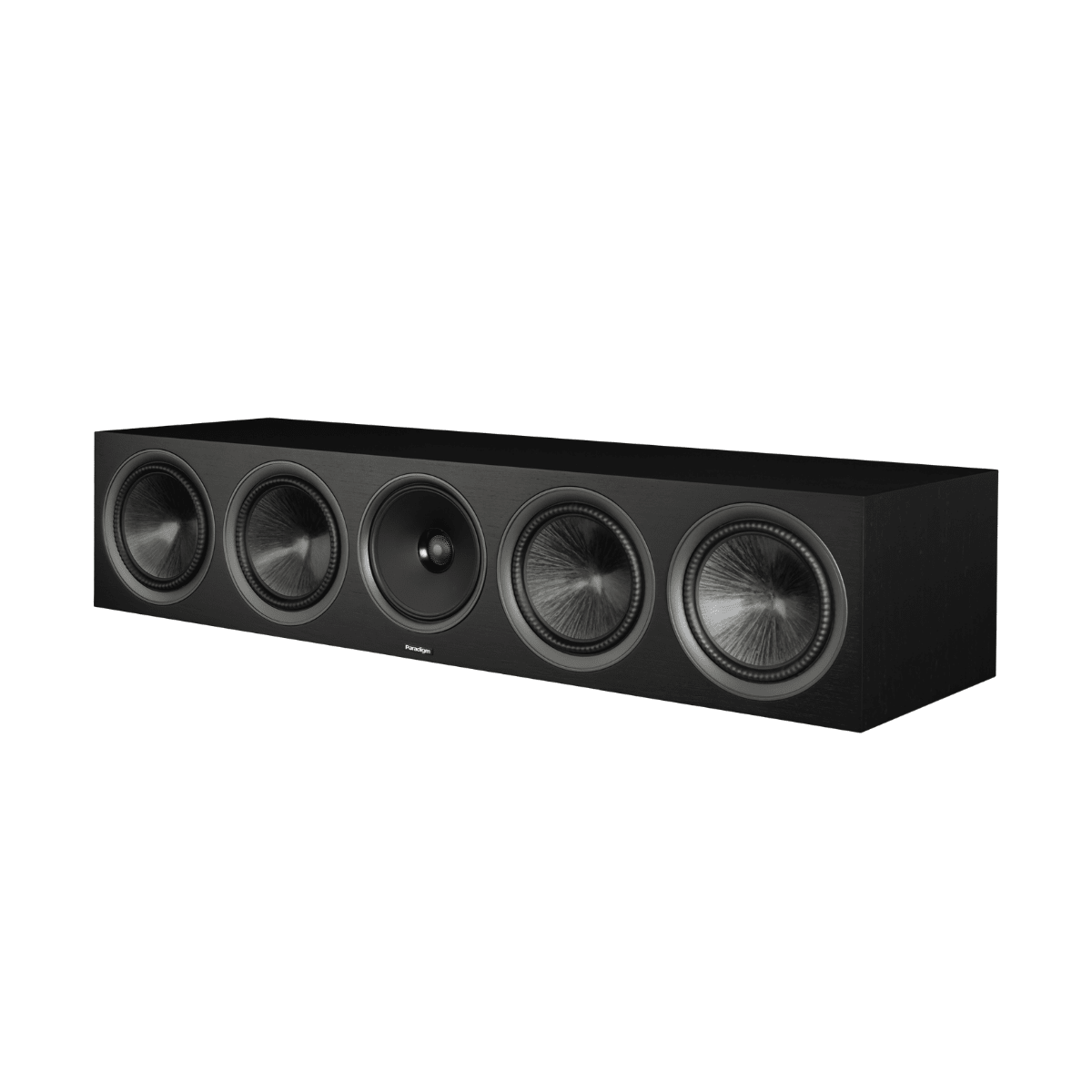

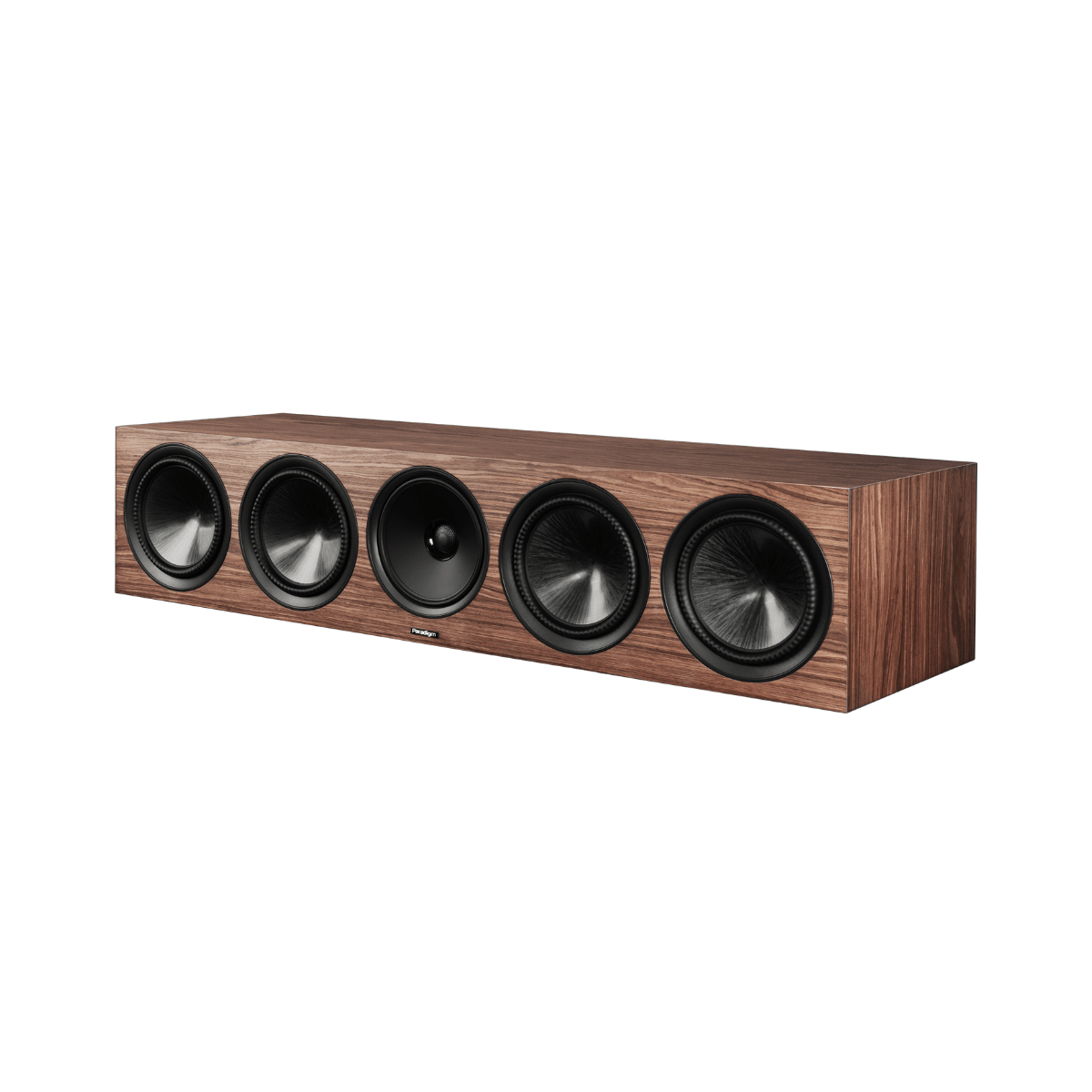

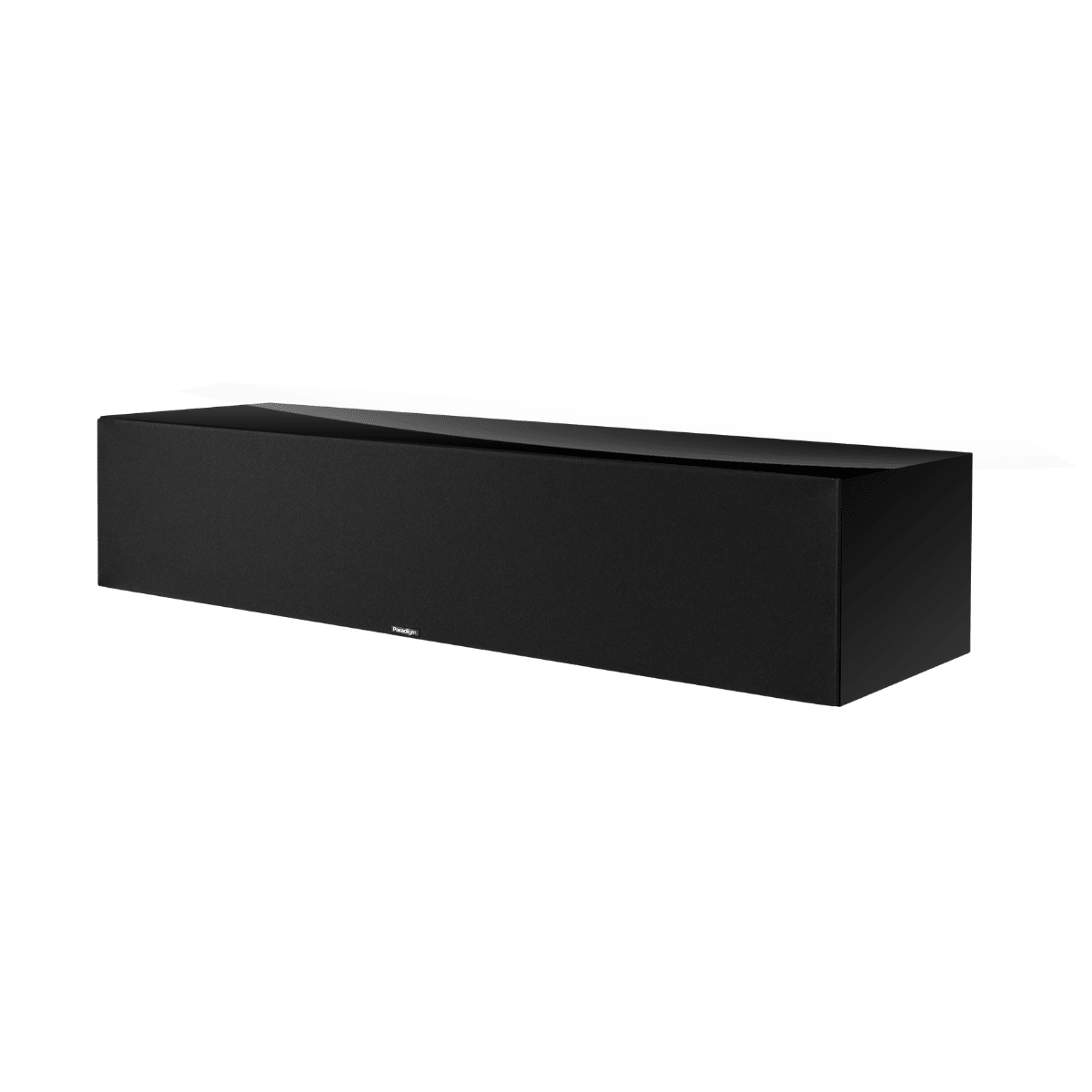

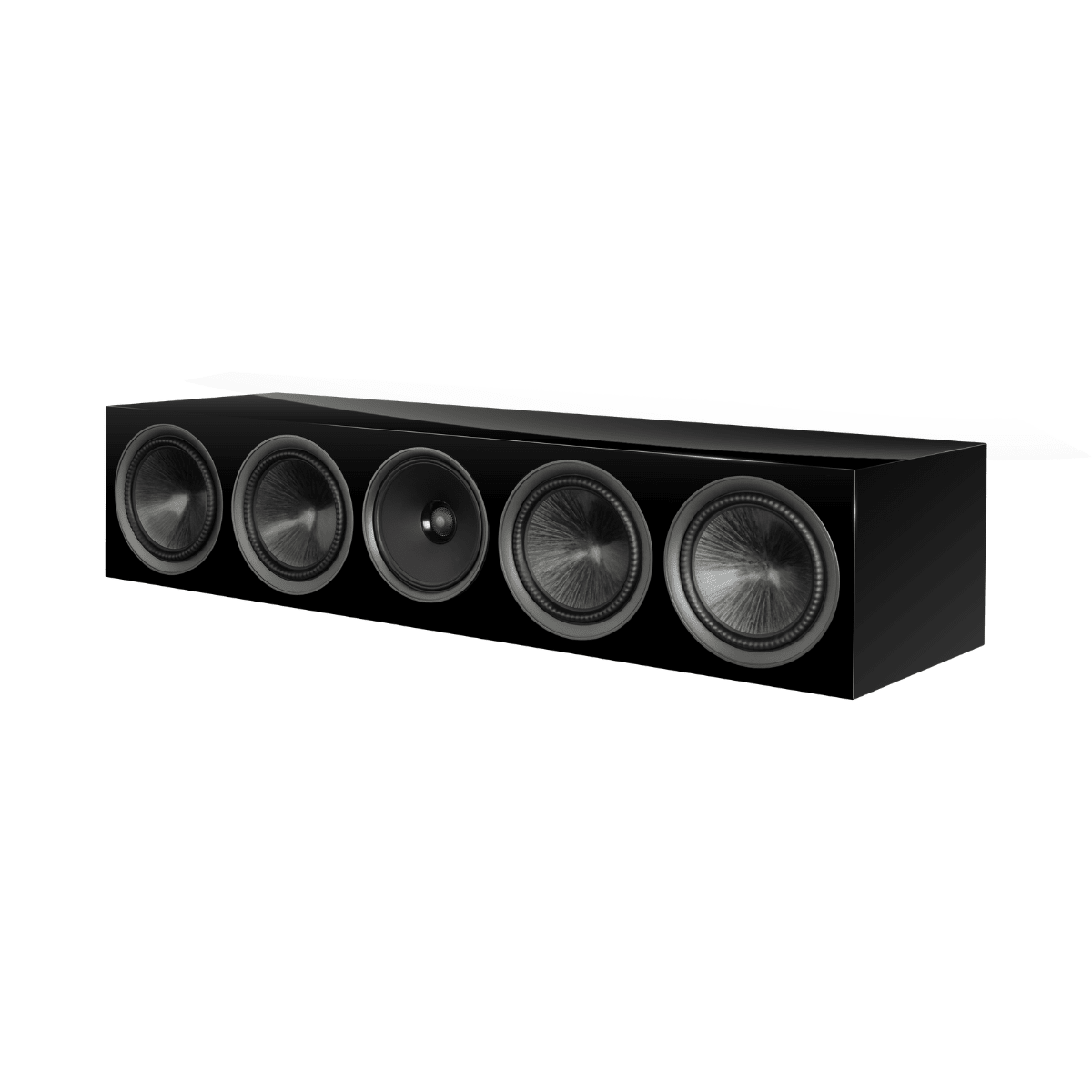

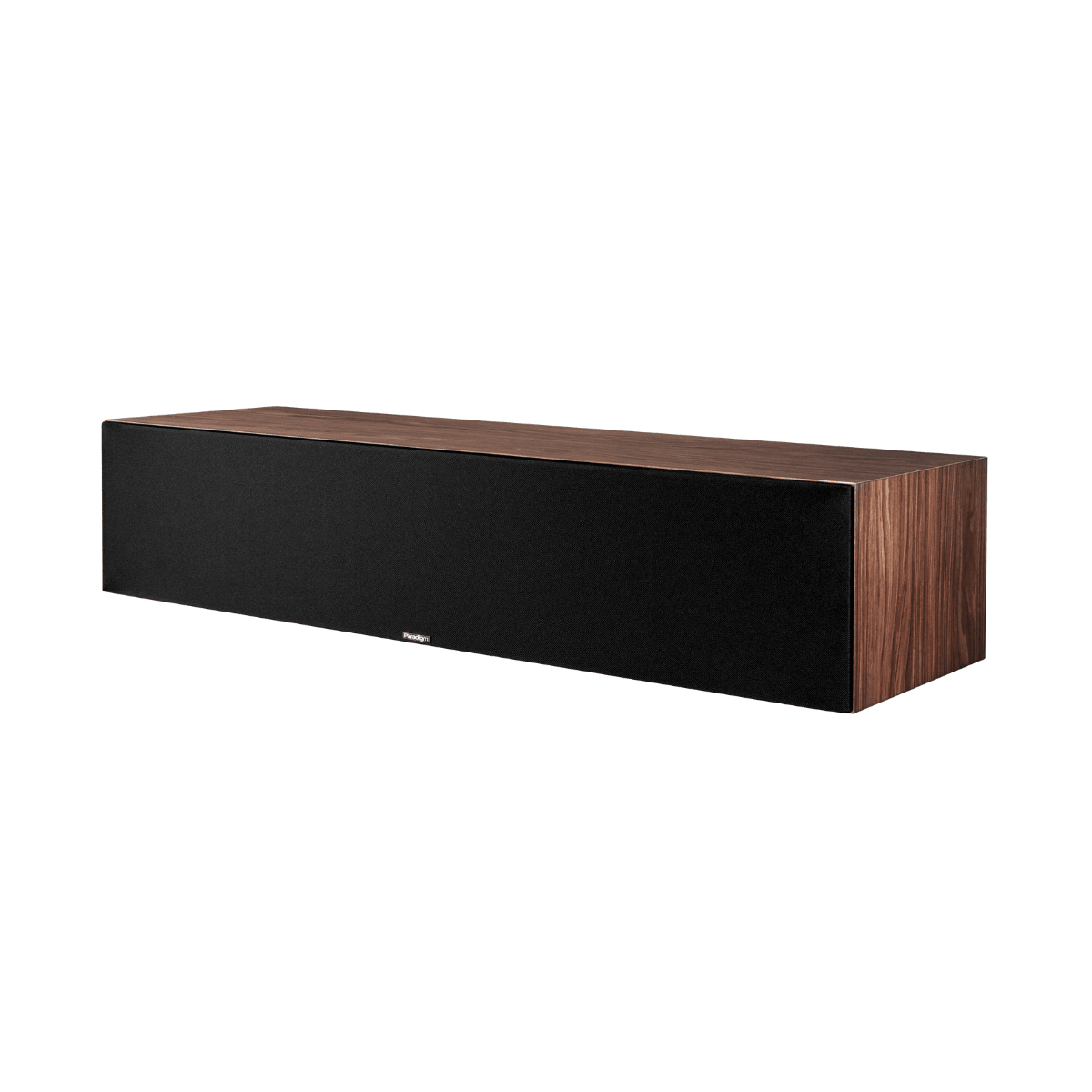

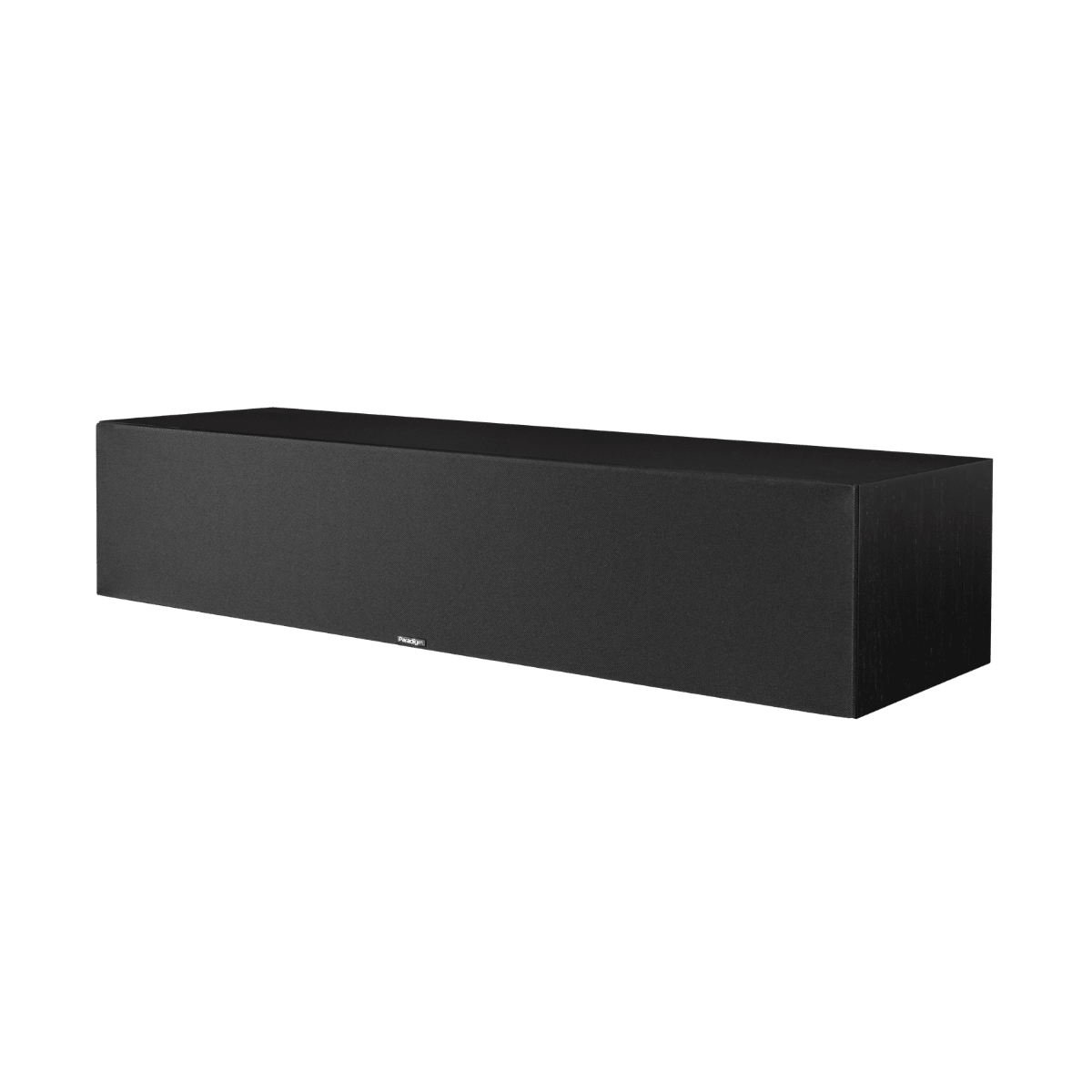

Designed for large-scale cinema, the 620C v2 is the ultimate center channel. It utilizes a 4-driver array supported by dual passive radiators to deliver deep, impactful low-end while maintaining the sealed cabinet benefits for cabinet placement. This configuration ensures crystal-clear dialogue and an authoritative presence that anchors the largest home theater systems.
The Premier v2 features an elite suite of “trickle-down” technologies—innovations developed for higher-tier ranges and now refined for this series. By integrating these proven, high-end components, the series delivers exceptional performance and a clear expression of Paradigm’s advanced engineering pedigree.
-
AL-MAC™ High-Frequency Drivers: A sophisticated blend of aluminum, magnesium, and ceramic that is lightweight, rigid, and resistant to resonance for detailed, lifelike high frequencies
-
AL-MAG™ Midrange Drivers: Crafted from aluminum and magnesium to provide the agility and precision required for natural vocals and instruments.
-
Carbon-X™ Unibody Bass Drivers: Single-piece unibody cones designed for maximum strength and minimal mass, delivering deep and controlled bass even at high volumes.
OSW™ Waveguide
The Oblate Spherical Waveguide precisely shapes output to focus sound on the listening area while reducing unwanted room reflections. By focusing the sound directly on the “sweet spot” and minimizing ceiling and wall reflections, you get a clear, focused image regardless of your room’s acoustics.
Patented PPA™ Lens
The Perforated Phase-Aligning (PPA™) lens ensures all frequencies reach the listener simultaneously, significantly enhancing realism and detail. It functions as both a physical shield and an acoustic filter, blocking out-of-phase frequencies. The result is a noticeable improvement in the three-dimensionality of the soundstage.
Specifications
Design
4-driver, 2-passive radiator, 3-way sealed center channel speaker with AL-MAC, AL-MAG, Carbon-X, OSW™, and PPA™
Crossover
2nd Order Electro-acoustic at 1.7kHz (tweeter/midrange)2nd Order Electro-acoustic at 750Hz (midrange/woofer)
High-Frequency Driver
1” (25mm) AL-MAC™ Ceramic Dome with Oblate Spheroid Waveguide (OSW™) and Perforated Phase-Aligning (PPA™) Tweeter Lens, ferro-fluid damped / cooled
Mid Frequency Driver
Coaxial 6” (152mm) AL-MAG™ Cone, a 2” high-temp multi-layered voice coil with Apical™ former, Patented Dual-Sync™ Continuous Flux Motor
Bass Frequency Driver
Two 7” (177mm) Ultra-High Excursion CARBON-X™ Unibody Cone, Gen3 Active Ridge Technology (ART™) with Vertical Mounting System, and a 1” high-temp multi-layered voice coil with ventilated Apical™ former
Passive Radiator
Two 7” (177mm) Ultra-High Excursion CARBON-X™ Unibody Passive Radiators with Gen3 Active Ridge Technology (ART™) and Vertical Mounting System
Frequency Response (On-Axis)
±3dB from 49Hz – 23kHz
Frequency Response (30° Off-Axis)
±3dB from 49Hz – 20kHz
Low Frequency Extension
33Hz (DIN)
Sensitivity (Room / Anechoic)
93dB / 90dB
Recommended Amplifier Power
15 – 180 Watts
Maximum Input Power
120 Watts
Impedance
Compatible with 8 ohms
Weight
48.1 lbs (21.8 kg) each
Dimensions (H x W x D)
8.9” x 41” x 13.7”
(22.6 x 104.1 x 34.8 cm)
Finish Options
Piano Black, Black Walnut, Walnut
