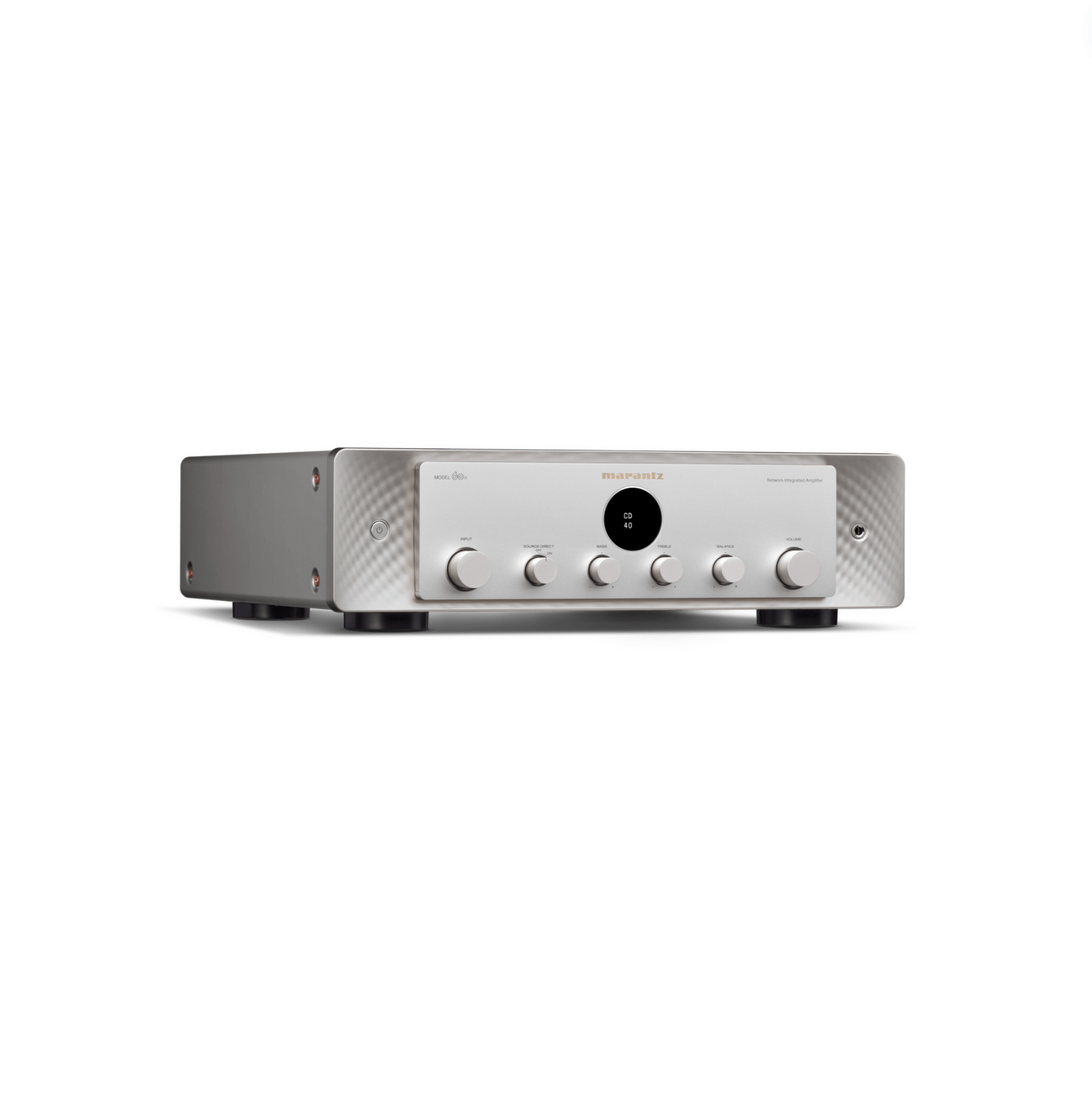

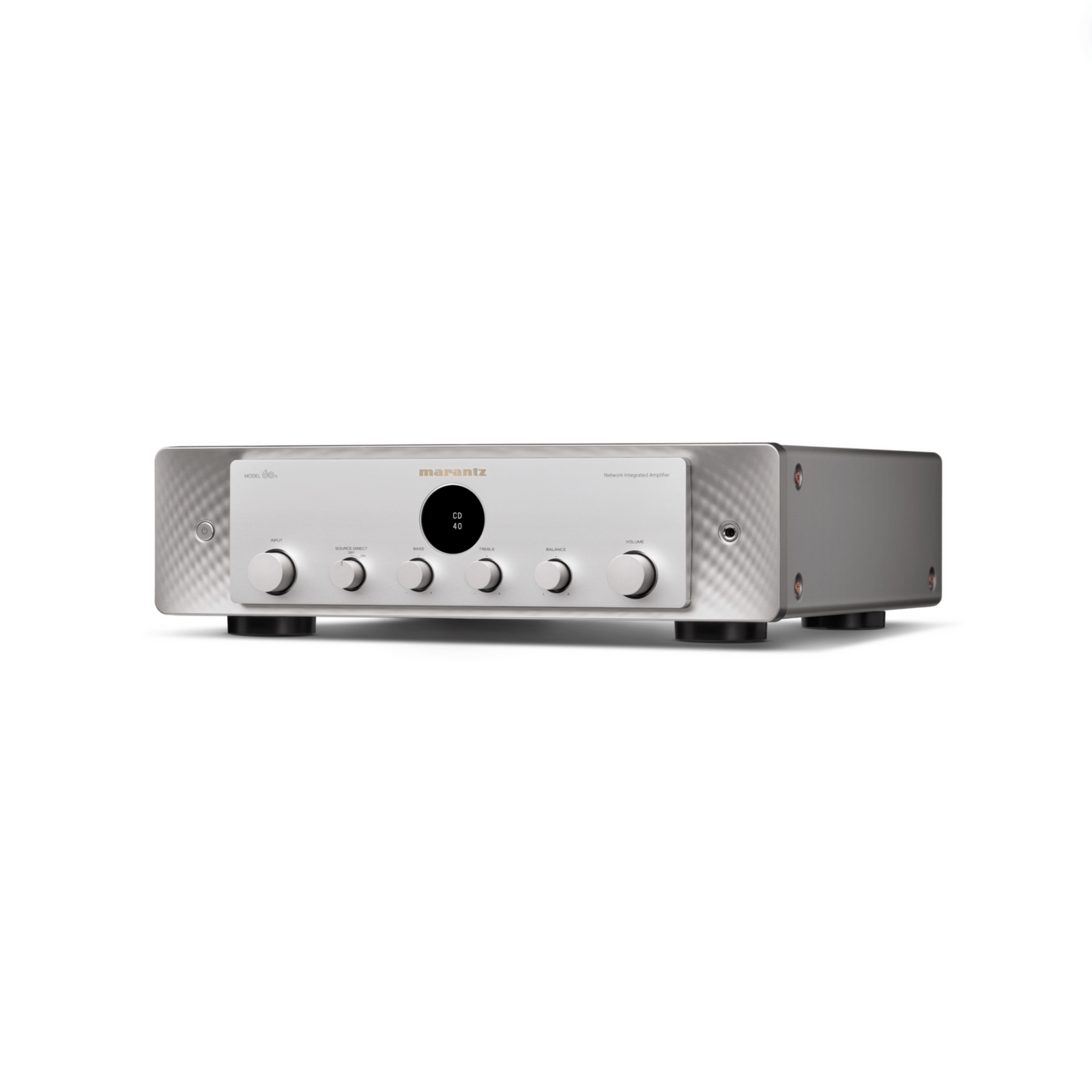

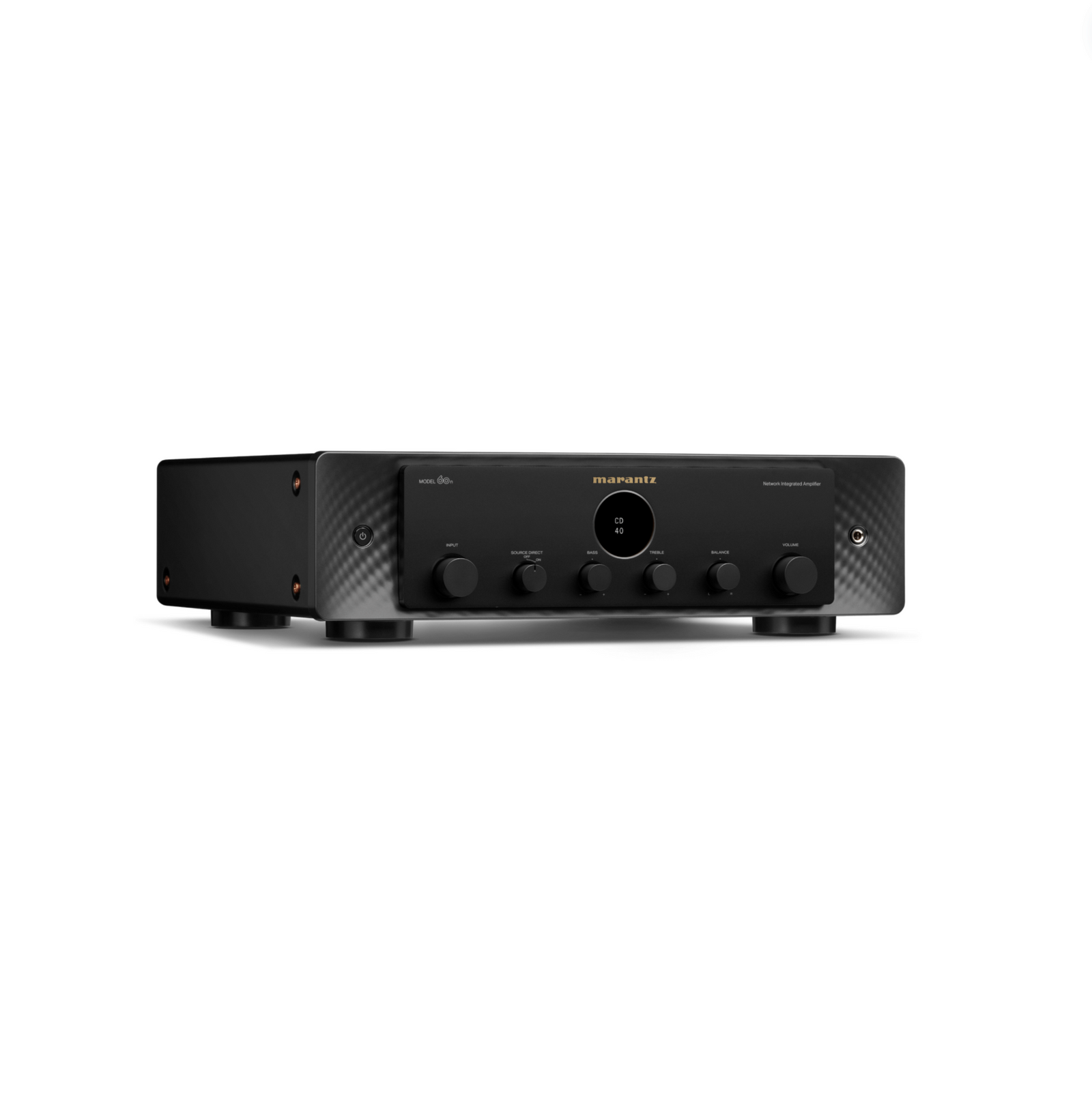

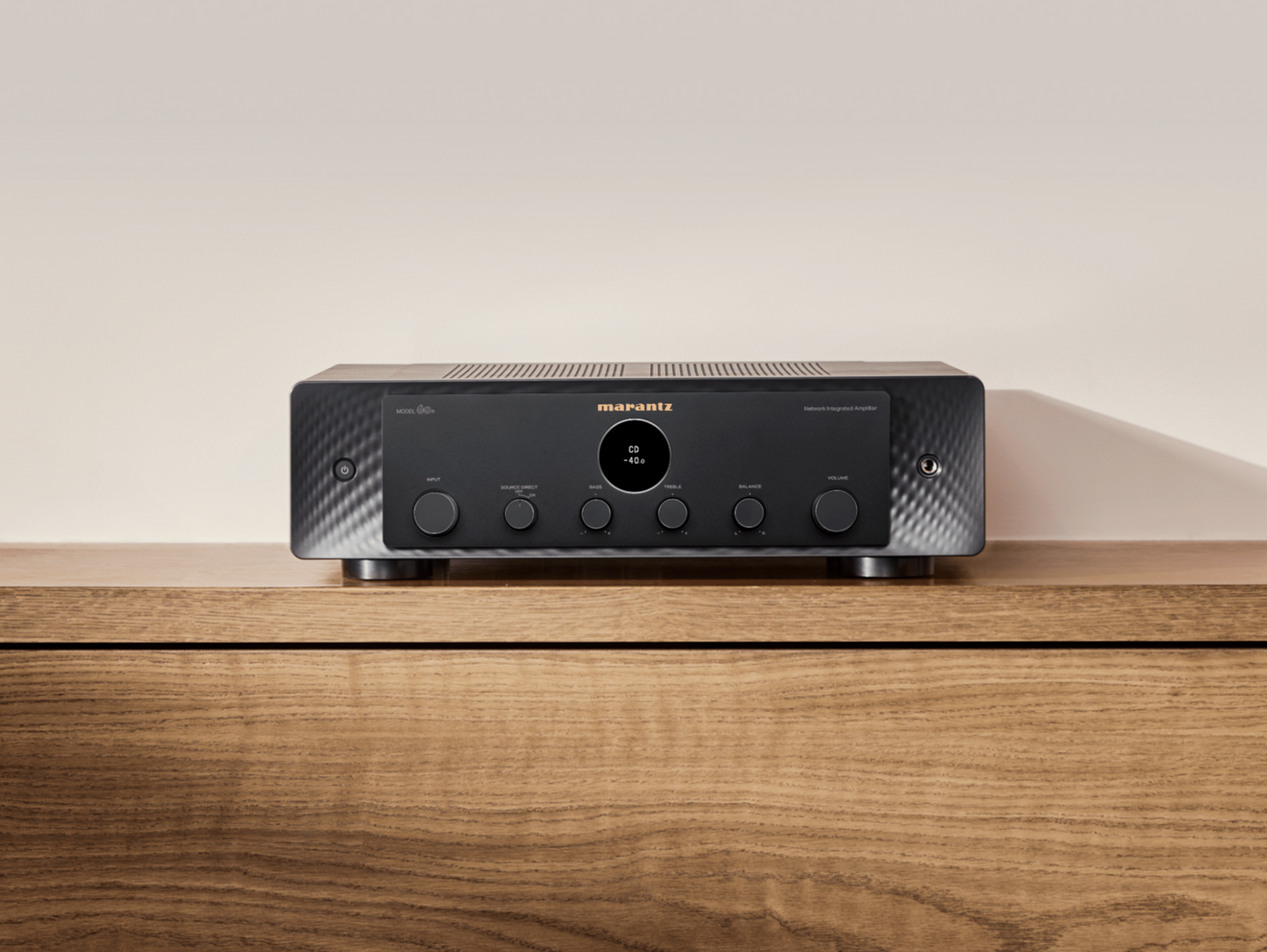

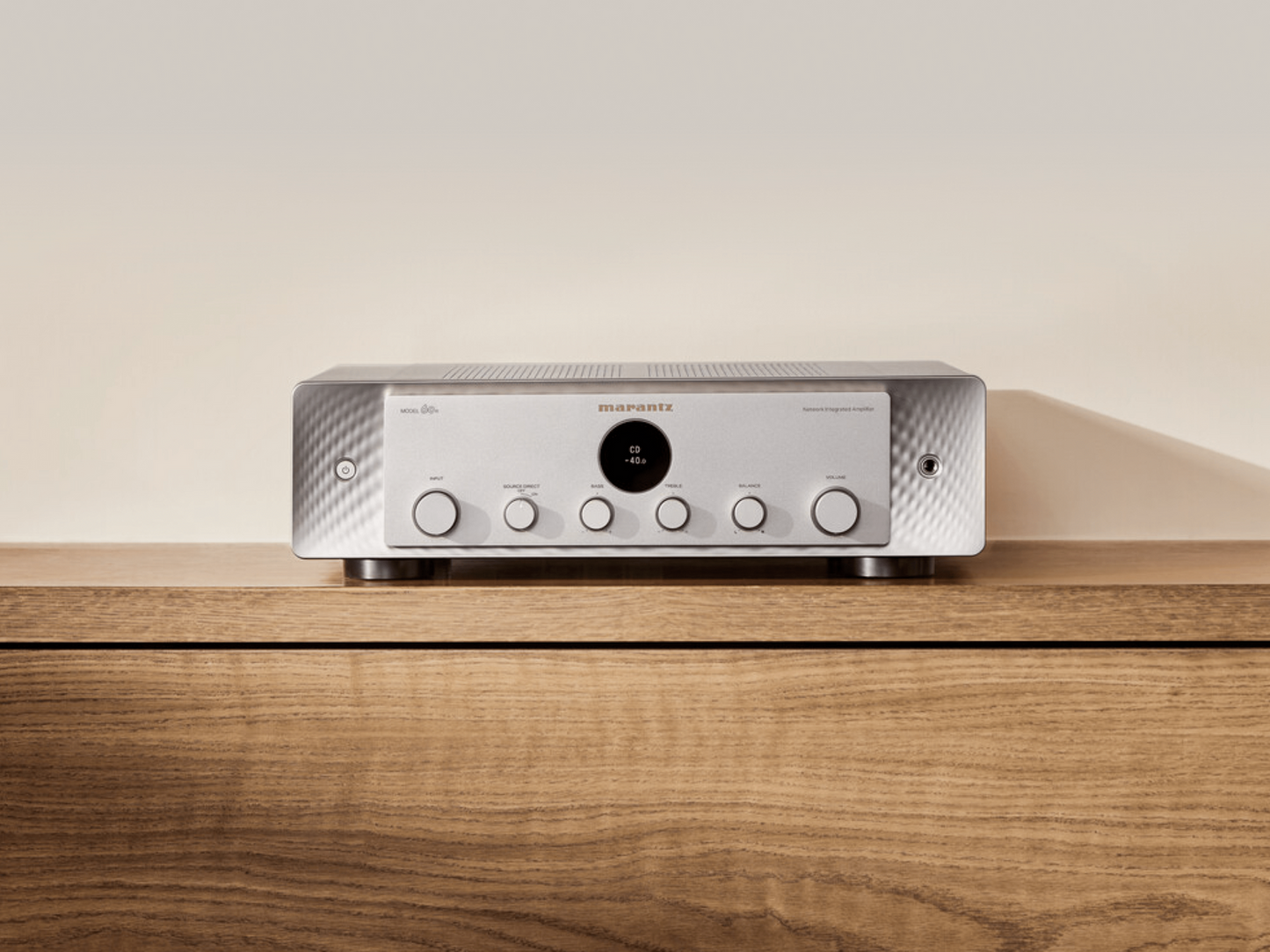

Marantz MODEL 60n Network Integrated Amplifier

• 60W per channel
• HEOS® Built-in
• HDMI ARC
• Marantz HDAM® circuits
• Hi-Res audio support
• CD and MM phono inputs

Superb Marantz Sound

Sound Master tuned and engineered to bring you all the texture, nuance, and clarity of the Marantz signature sound.

High Resolution Streaming

Stream in high-resoultion from today’s most popular music services, including TIDAL, with HEOS® Built-in.

Build your Hi-Fi System

Wide range of connections, including for a CD player and turntable, enable you to build a comprehensive hi-fi system.

Enhanced TV Sound

Enjoy superior TV sound for your favourite movies and shows and enhance your gaming experience with MODEL 60n’s HDMI ARC connection.

Marantz Industrial Design

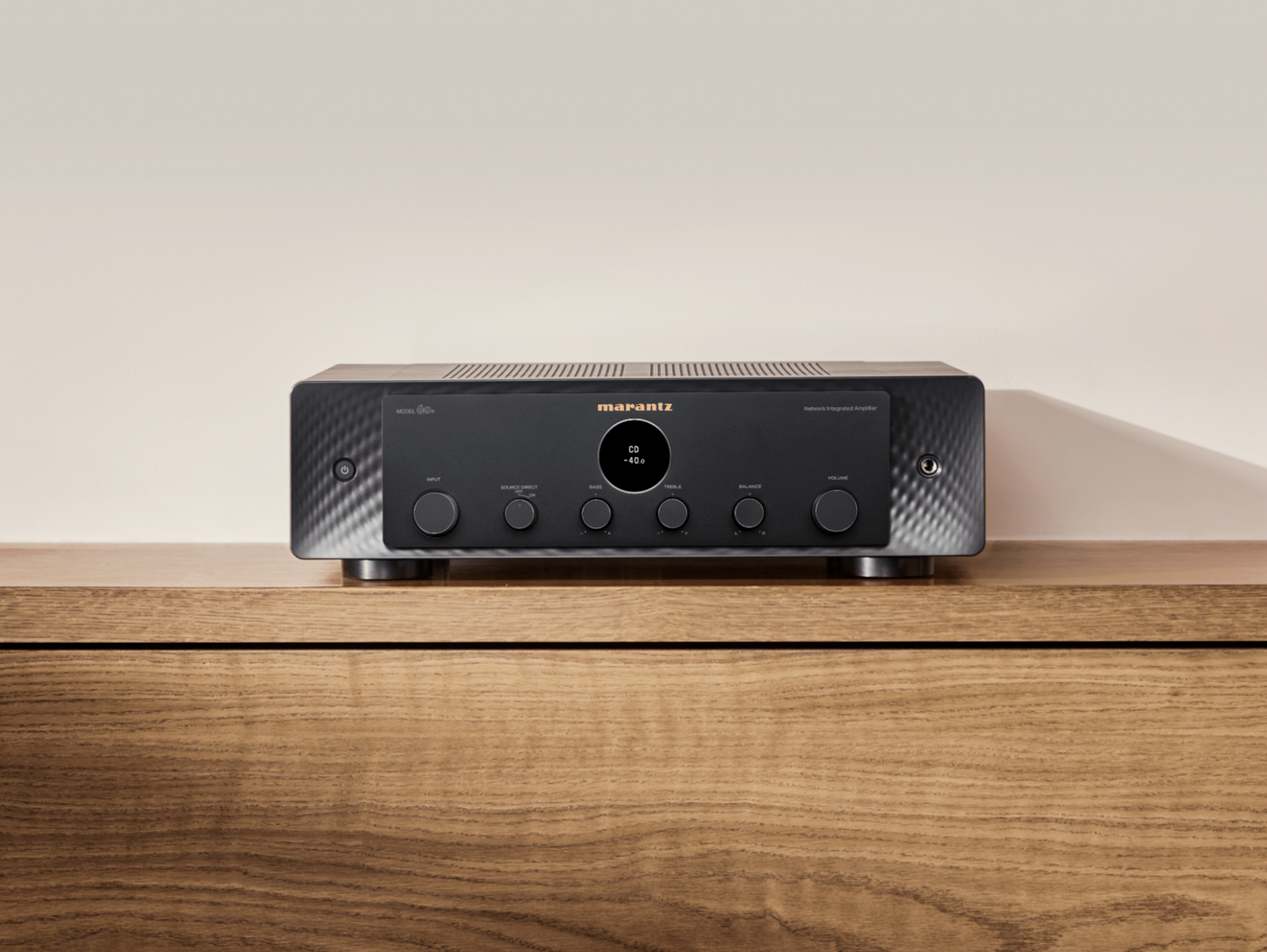

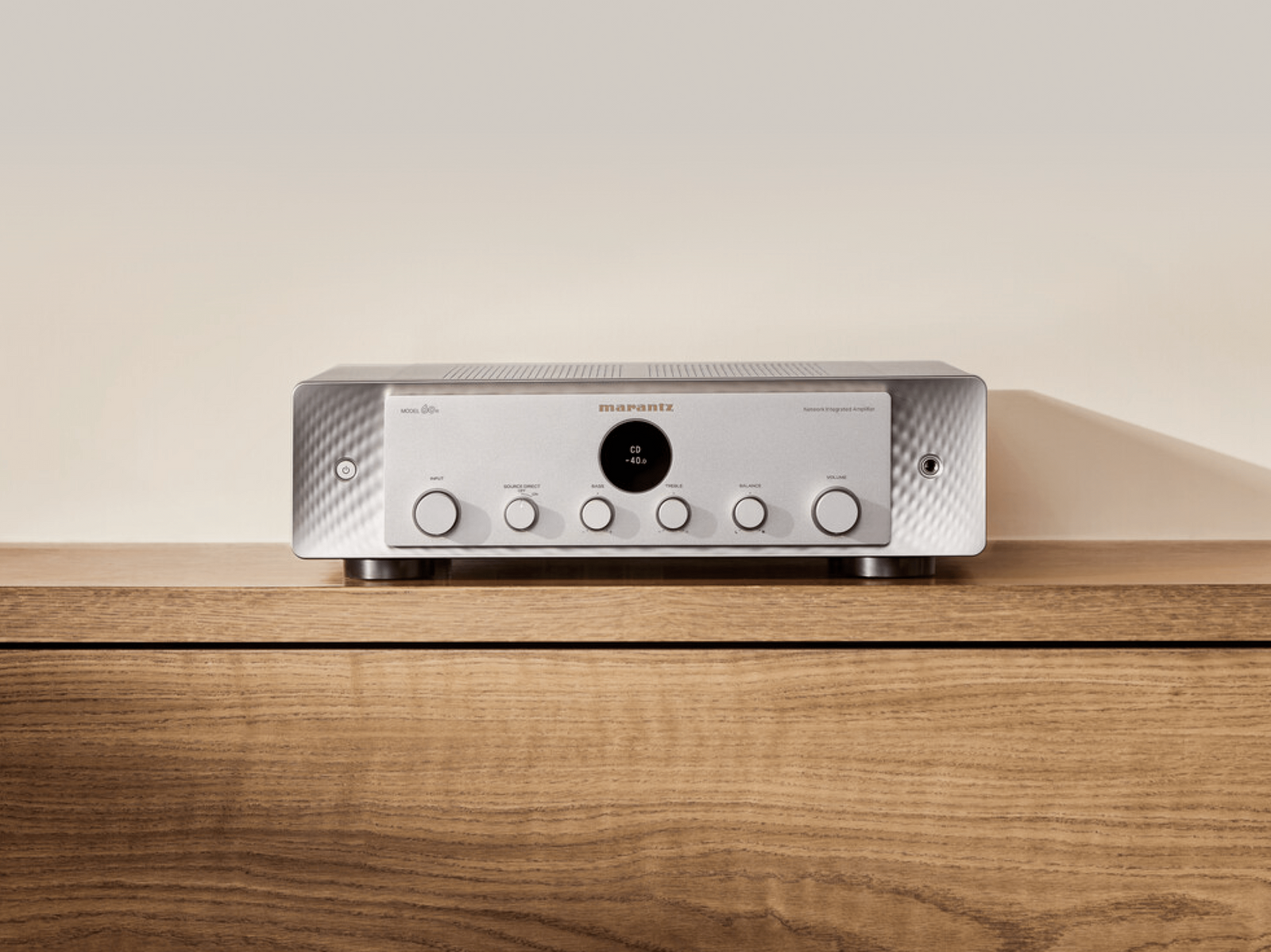

Intuitive operation, designed with robust yet refined materials and available in two colorways: black and silver-gold.

Marantz MODEL 60n | Technical Specifications

Power & Amplification

• Amplifier Type: Class A/B with Marantz HDAM-SA3 technology
• Power Output: 60W + 60W (8 ohm, 20Hz-20kHz, 0.02% THD) / 80W + 80W (4 ohm, 1kHz, 0.7% THD)
• Frequency Response: 5Hz - 100kHz
• Total Harmonic Distortion: 0.02% (8 ohm, 20Hz - 20kHz)

Audio Features

• Marantz Musical Digital Filtering (MMDF): Two selectable filter options for personalized sound
• HDAM Technology: Custom Hyper Dynamic Amplifier Modules for wide-bandwidth, high-speed audio
• D/A Conversion: ES9038Q2M high-performance DAC
• Phono Stage: Marantz Musical Phono EQ (Moving Magnet)

Streaming & Connectivity

• HEOS® Built-in: Wireless multi-room streaming and access to Spotify, Tidal, Amazon Music, and more
• Wireless: Dual-band Wi-Fi, Bluetooth (SBC/AAC), and Apple AirPlay 2
• Roon Ready: Fully certified for high-resolution library management
• High-Res Support: 24-bit/192kHz PCM and DSD 5.6MHz

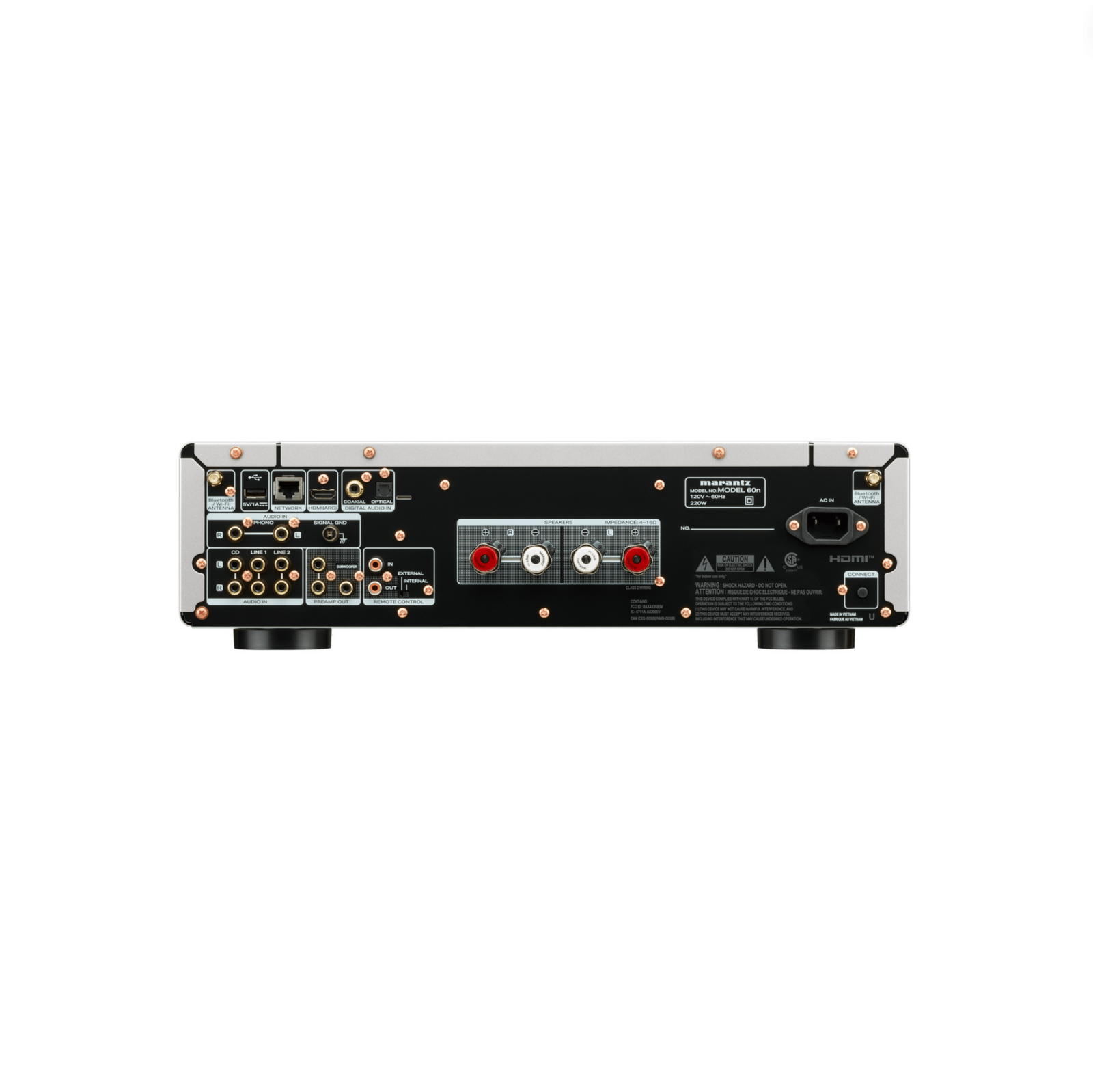

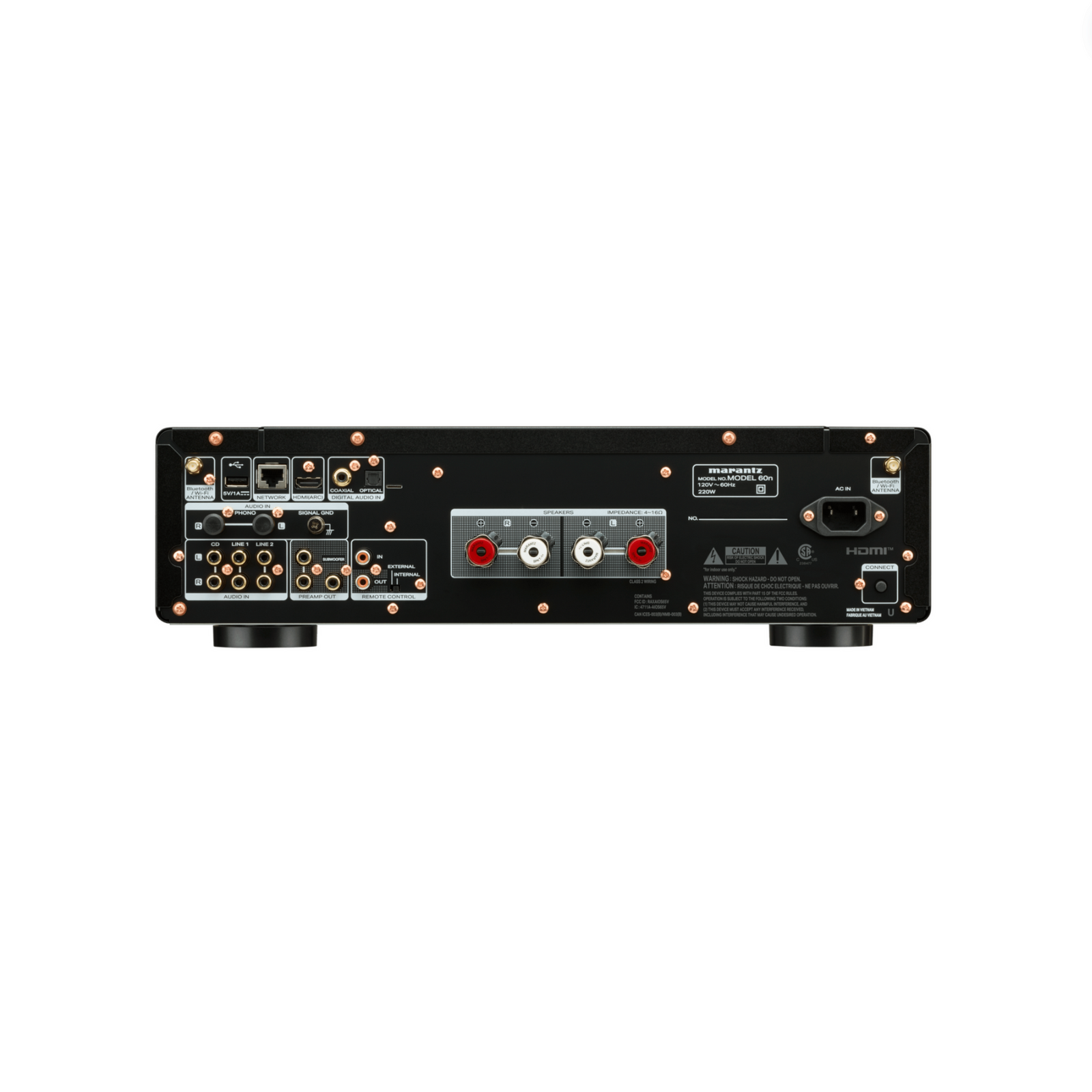

Inputs & Outputs

• HDMI ARC: Support for TV audio with CEC (Volume control via TV remote)
• Digital Inputs: 1 x Optical, 1 x Coaxial, 1 x USB-A
• Analog Inputs: 3 x RCA Line Level, 1 x Phono (MM)
• Outputs: 1 x Subwoofer Out (with low-pass filter settings), 1 x Stereo Pre-out, 1 x Headphone (6.3mm front panel)

Physical Dimensions & Weight

• Dimensions (W x D x H): 17.4" x 15.2" x 5.1" (442 x 387 x 129 mm)
• Weight: 28.0 lbs (12.7 kg)
• Packaging Dimensions (W x D x H): 20.7" x 18.4" x 10.0" (527 x 467 x 255 mm)

Design & Build

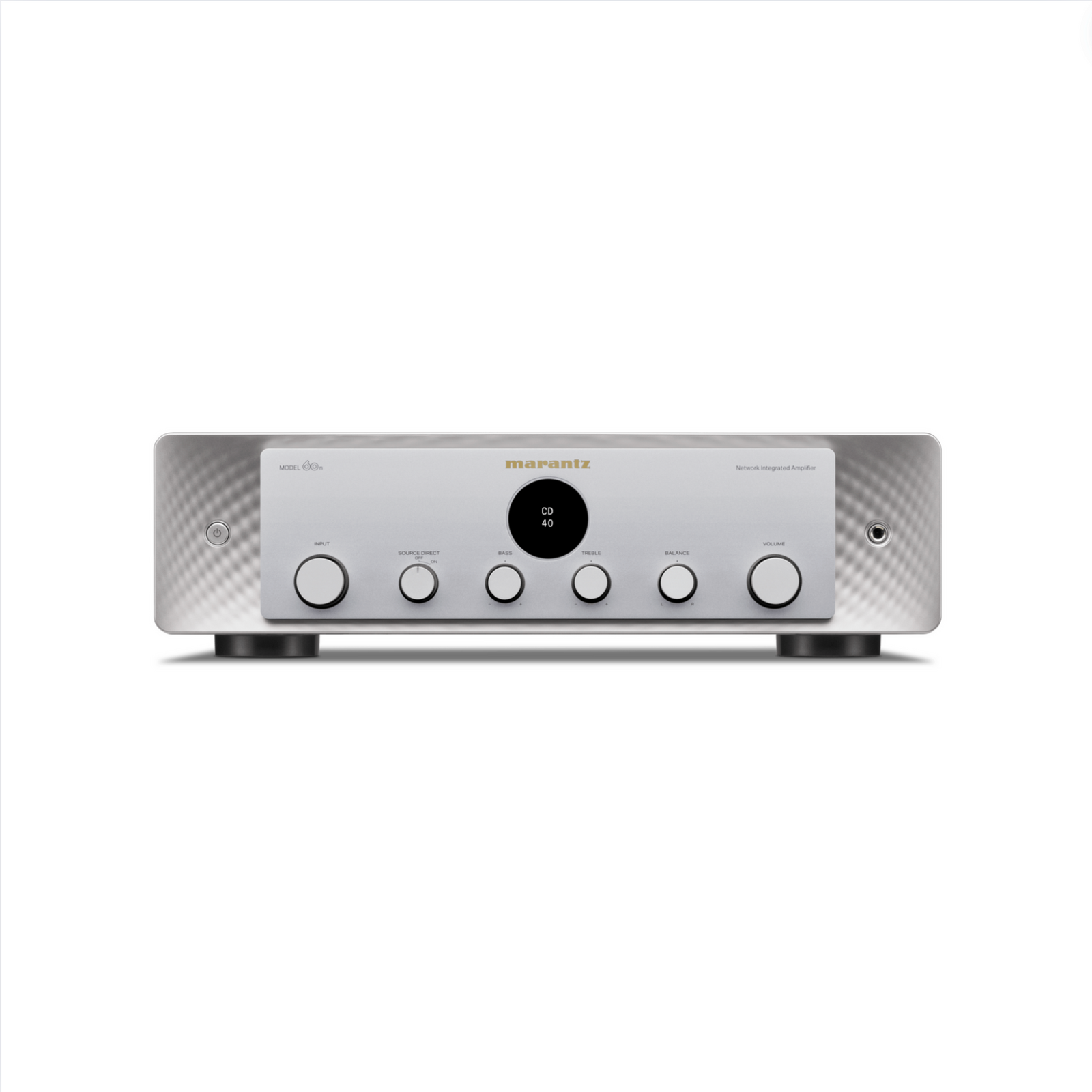

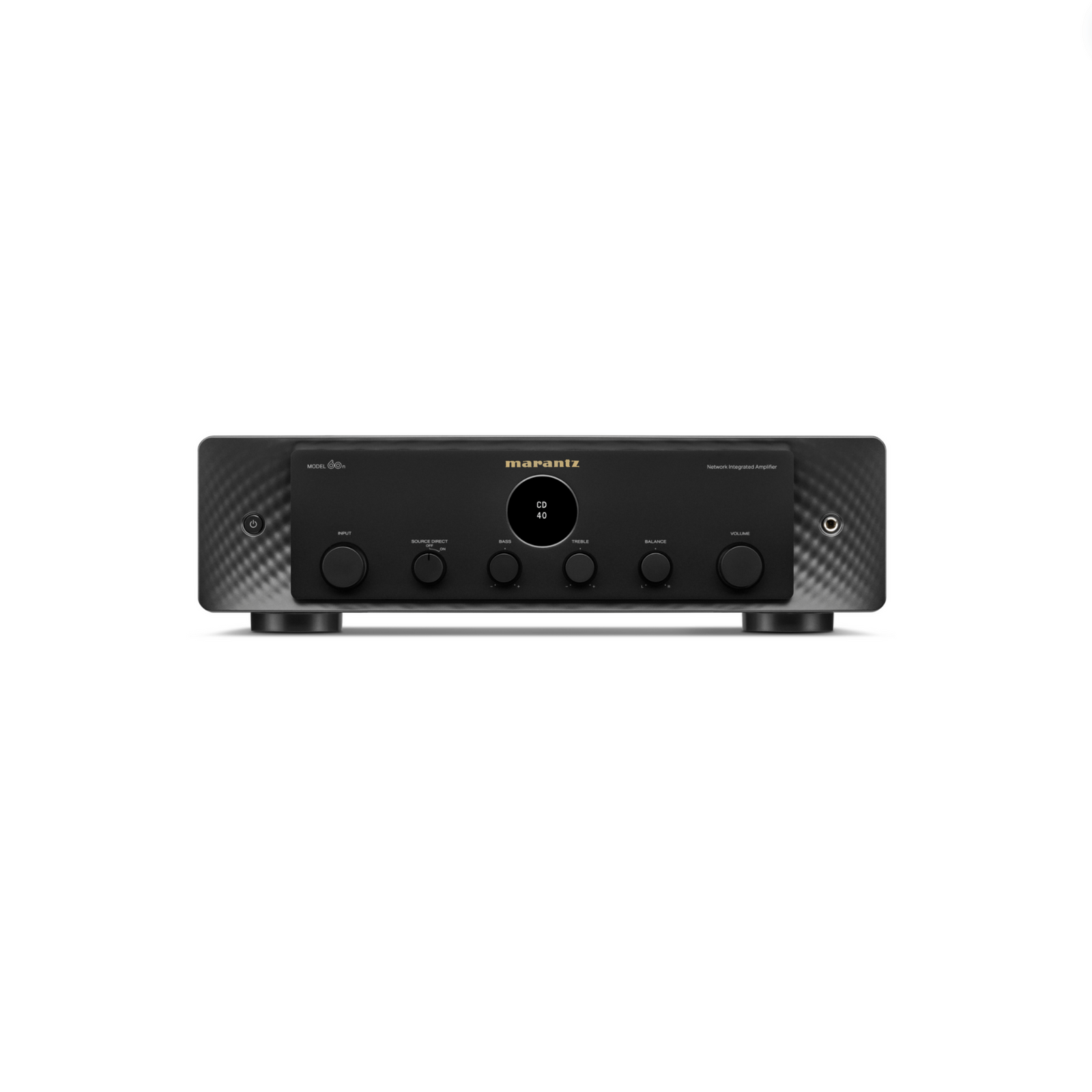

• Front Panel: Iconic Marantz Porthole OLED display
• Volume Control: Electric high-precision volume IC
• Chassis: High-rigidity construction with double-layer bottom plate to minimize vibration
• Finishes: Available in Black and Silver-Gold
