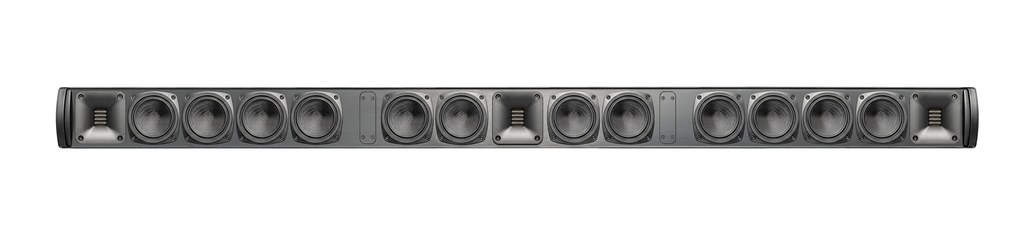

MartinLogan Discrete Cinema Soundbar 85 3-Channel Passive Soundbar

The MartinLogan Discrete Cinema Soundbar 85 brings separate left, centre and right channels into one slim enclosure, proportioned for 85-inch class televisions. Its 15-driver array combines three Gen2 Folded Motion tweeters with 12 4-inch woven-fiberglass cones for dialogue, music and movie sound.

Three channels, one streamlined speaker

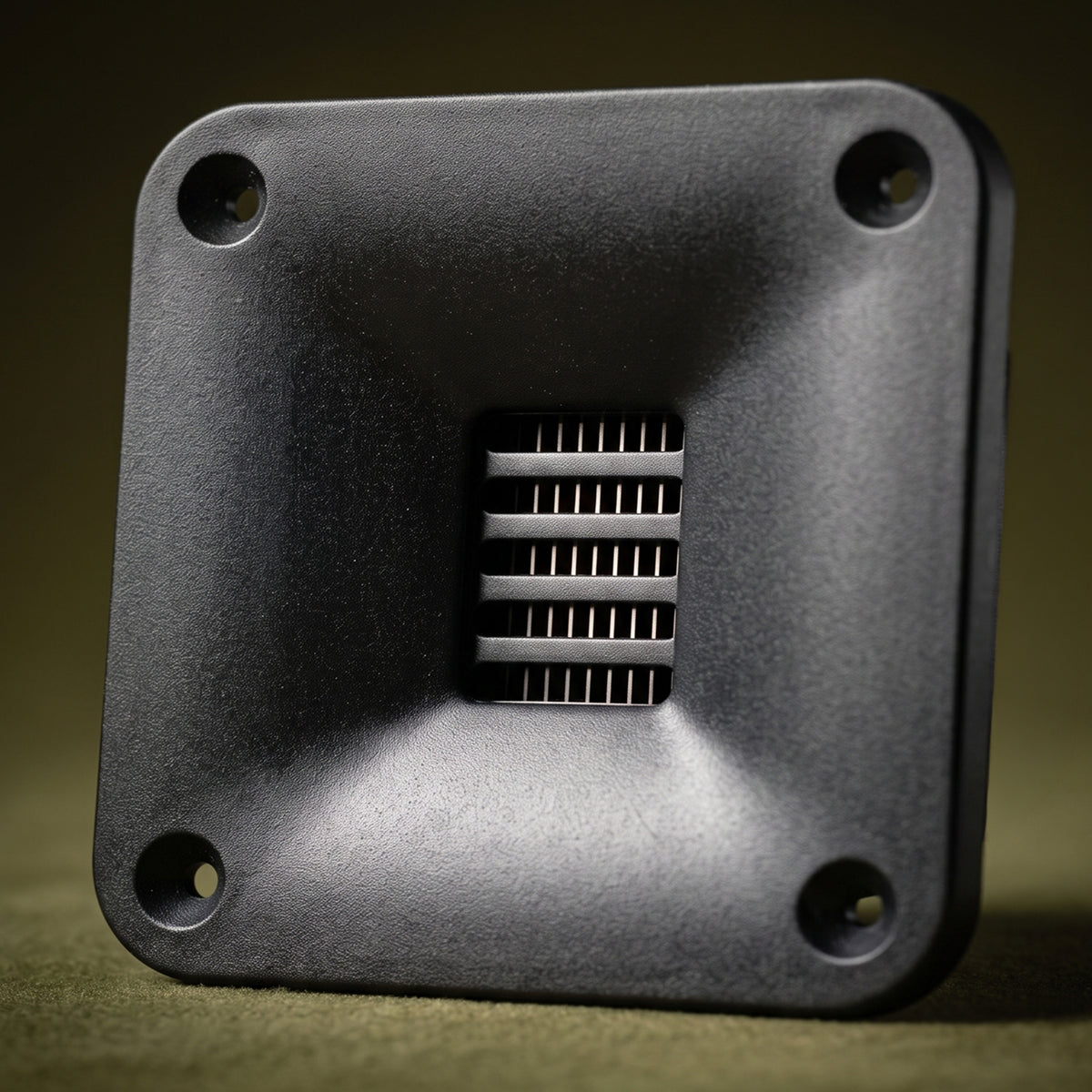

Folded Motion Waveguides provide 90° × 90° tweeter dispersion. The sealed aluminum cabinet uses a 2.5-way crossover, while the woven-fiberglass drivers feature 1.5-inch high-temperature voice coils. Internally isolated channels help preserve separation across the front soundstage.

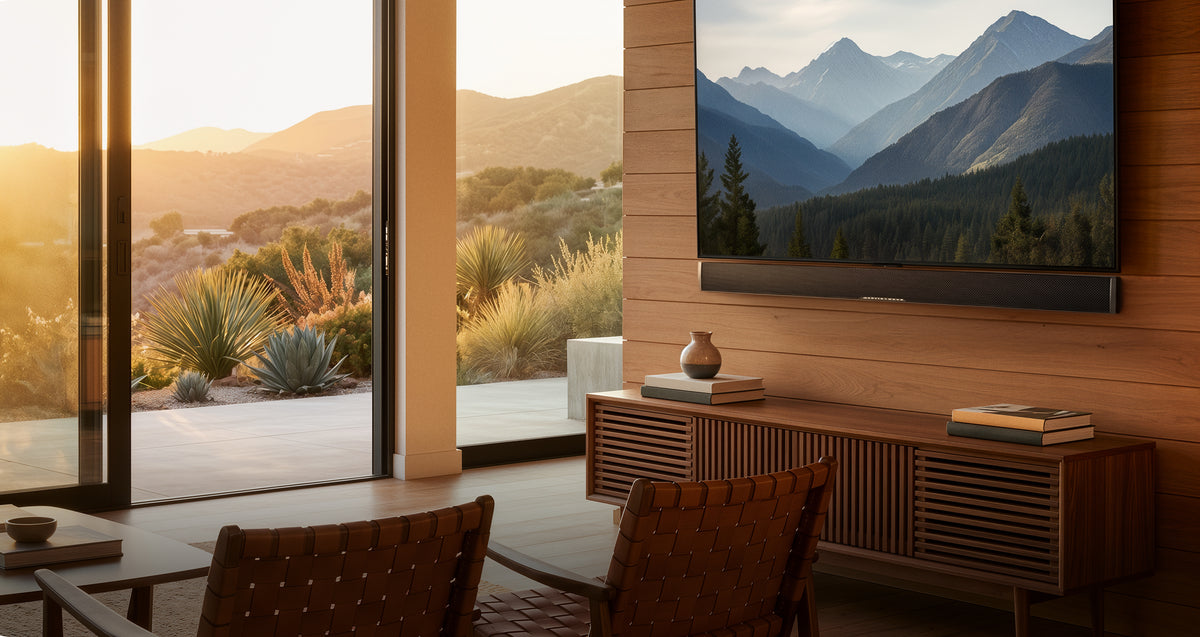

Designed for a clean installation

A low-profile wall mount is included. Optional TV-mounting hardware is sold separately; built-in cable channels and removable tool-free connectors simplify installation.

Passive soundbar: external amplification is required for all three channels. MartinLogan recommends adding a subwoofer for low-frequency extension. TV, amplifier and subwoofer are not included. Sold individually.

Suggested match

Pair this passive soundbar with the Anthem MRX SLM Slimline AV Receiver. Contact us for help planning your soundbar and receiver system. Receiver sold separately.

Specifications

• Design: 15-driver sealed aluminum cabinet; 2.5-way crossover
• Tweeters: 3 × Gen2 Folded Motion, 1 × 1.4 inches, with Folded Motion Waveguides
• Midrange/bass: 12 × 4-inch woven-fiberglass unibody cones
• Frequency response: 100–25,000 Hz ±3 dB
• Tweeter dispersion: 90° horizontal × 90° vertical
• Sensitivity: 93 dB / 2.83 V / 1 m
• Impedance: 4 ohms; compatible with amplifiers rated for 4, 6 or 8 ohms
• Recommended amplifier power: 20–280 W
• Dimensions (H × W × D): 4.76 × 74.1 × 2.37 inches (12.1 × 188.2 × 6 cm)
• Weight: 20 lb (9.1 kg)

Official MartinLogan specifications · Download the official specification sheet
