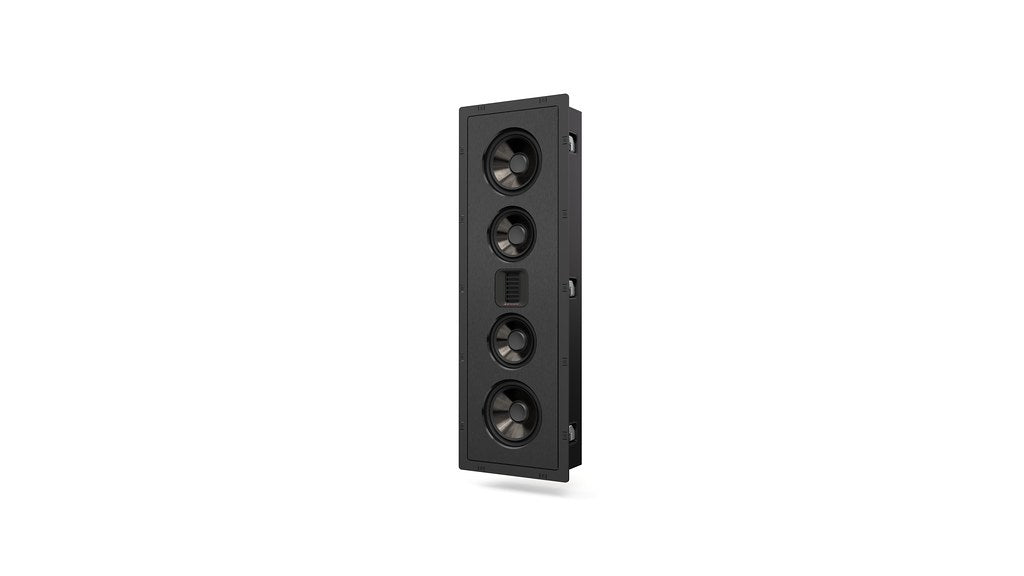

MartinLogan Tribute 5XW
Contact us to order
Contact us for pricing and availability. We sell and ship across Canada, with orders arranged directly through our team.
Send us your enquiry below and we’ll help you choose the right product, confirm delivery options, and arrange your purchase.
Introducing the exceptional audio masterpiece, equipped with cutting-edge technology and expert craftsmanship. Discover the power and precision of our speaker, featuring an impressive array of features.
Immerse yourself in extraordinary sound with the speaker's five drivers, including the lightning-fast Folded Motion XT Obsidian tweeter. The dual 5.5-inch unidirectional carbon fiber multi-section cone woofers, backed by Nomex®, deliver deep and impactful bass, while the matching 6.5-inch passive radiators further enhance the low-frequency response.
Experience seamless integration and flawless performance, thanks to the flagship-class Vojtko crossover network. Constructed using audiophile-grade components, it ensures optimal signal distribution and remarkable clarity.
For added convenience, a pre-installation bracket is available, making the setup process hassle-free.
Unleash the full potential of your audio system with these extraordinary speaker, where innovation meets superior sound quality. Elevate your audio experience today.
Features
Frequency Response
71–25,000 Hz ± 3 dB
Tweeter Dispersion (horizontal x vertical)
80° x 30°
Sensitivity
94 dB @ 2.83 volts/ meter
Impedance
4 ohms. Compatible with
4, 6, or 8 ohm rated amps.
High Frequency Driver
1.25 x 2.4 inch (3.2 x 6.1 cm)
Folded Motion XT Obsidian
transducer with 4.5 x 2.75 inch
(11.4 x 7 cm) diaphragm.
Crossover Frequency
2250 Hz
Tweeter Aiming
Rotatable tweeter for horizontal
or vertical installations
Low Frequency Driver
Two 5.25-inch (13.33 cm) black
unidirectional carbon fiber
multi-section cone with Nomex®
backer and cast aluminum
basket, sealed back chamber
format. Concave dust cap.
Passive Radiators
Two 6.5-inch (16.5 cm) black
unidirectional carbon fiber
multi-section cone with Nomex®
backer and cast aluminum
basket, sealed back chamber
format. Concave dust cap.
Components
Custom air core coil inductors,
polypropylene film capacitors,
and low DF electrolytic capacitors.
Thermal/current protection.
Suitable Amplifier Range
20–250 watts
Max Power Handling
125 watts
Binding Post Inputs
Push style (two sets for
easy installation)
Weight
25.5 lb (11.6 kg)
Dimensions (overall size)
31.13 x 10.6 x 4.09 inch
(790.82 x 269.2 x 103.93 mm)
Required Wall Opening (includes tolerance)
29.82 x 9.29 inch
(757 x 236 mm)
Projection From Wall Surface
0.31 inch
(7.8 mm)
Depth Behind Wall Surface
3.8 inch
(96.5 mm)
Optional Accessories
Pre-install bracket (PN: 5XWBRK)
Dimensions (overall size)
31.13 x 10.6 x 4.09 inch
(790.82 x 269.2 x 103.93 mm)
Required Wall Opening (includes tolerance)
29.82 x 9.29 inch
(757 x 236 mm)
Weight
25.5 lb (11.6 kg)
