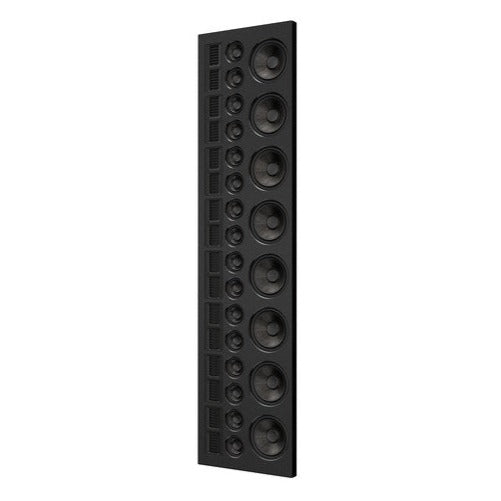

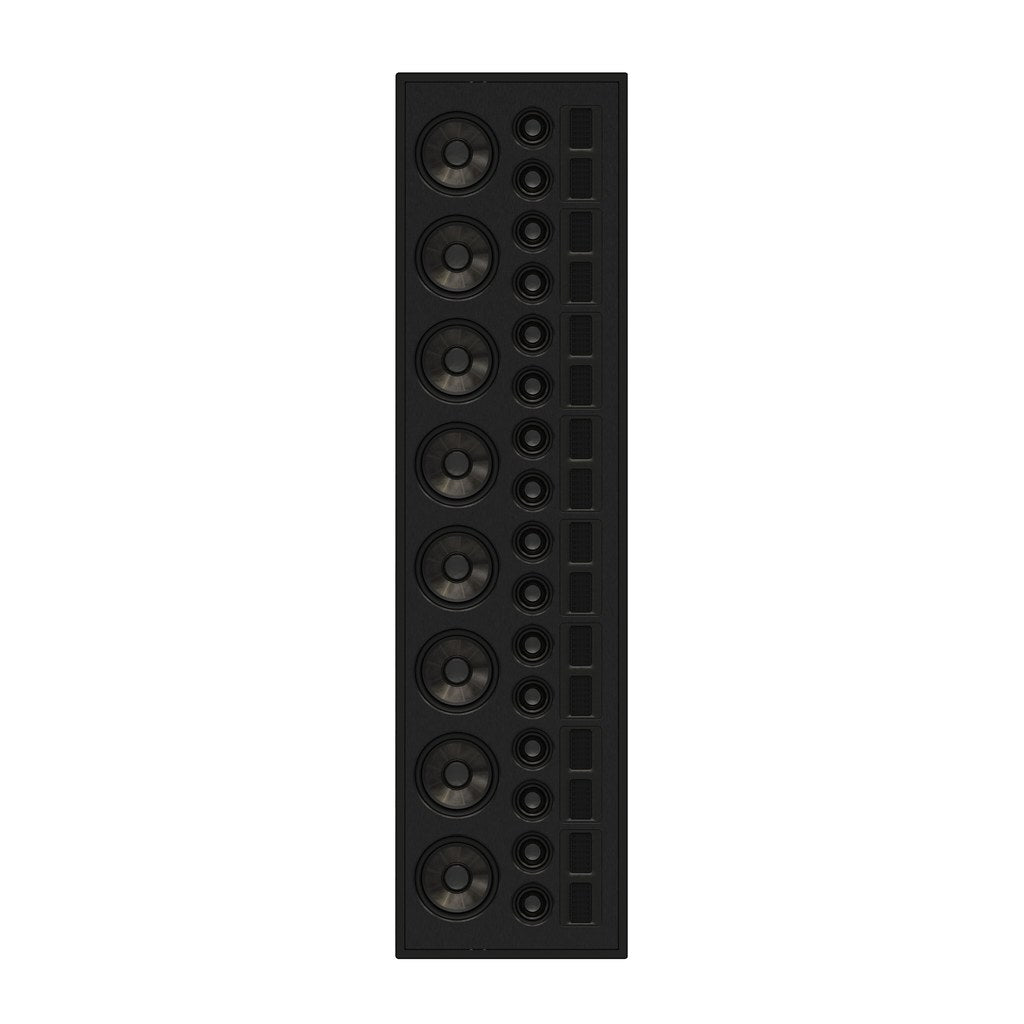

Martin Logan Statement 40XW

One of the following accessories is required: 40XWIWK05BB, 40XWIWK0625BB or 40XWOWENCL
$26,499.99 CAD
$26,499.99 CAD
Shipping calculated at checkout.

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

Introducing the MartinLogan Statement 40XW: A Masterpiece CI Series flagship that redefines in-wall loudspeaker systems. With an awe-inspiring array of forty drivers and towering seven-foot height, including a 52-inch stack of thin-film tweeters, this cutting-edge marvel delivers an unmatched dynamic attack in even the most expansive listening areas. Designed with super-efficient line-source technology, the Statement 40XW brings a massive audio experience without occupying any floor space. Elevate your sound to extraordinary levels with the virtually invisible MartinLogan Statement 40XW—a true audio masterpiece that transcends boundaries.

Features

Frequency Response

48–25,000 Hz ± 3 dB

Tweeter Dispersion (horizontal x vertical)

80° x 52-inch line source

Sensitivity

95 dB @ 2.83 volts/ meter

Impedance

4 ohms. Compatible with
4, 6, or 8 ohm rated amps.

High Frequency Driver

Sixteen 1.25 x 2.4 inch
(3.2 x 6.1 cm) Folded Motion XT
Obsidian transducer with
4.5 x 2.75 inch
(11.4 x 7 cm) diaphragm.

Crossover Frequency

300, 2700 Hz

Mid-Frequency Drivers

Sixteen 3.5-inch (8.9 cm) black
unidirectional carbon fiber
multi-section cone with Nomex®
backer and cast aluminum
basket, sealed back chamber
format. Concave dust cap.

Low Frequency Driver

Eight 6.5-inch (16.5 cm) black
unidirectional carbon fiber
multi-section cone with Nomex®
backer and cast aluminum
basket, sealed back chamber
format. Concave dust cap.

Components

Custom air core coil inductors,
polypropylene film capacitors, and
low DF electrolytic capacitors.

Suitable Amplifier Range

50–800 watts

Max Power Handling

400 watts

Binding Post Inputs

Push style (two sets for
easy installation)

Weight

150 lb (68.1 kg)

Required Wall Cavity (width)

Minimum: 14.5 inch (368 mm)
Maximum: 16.5 inch (420 mm)

Required Wall Cavity (height, unobstructed)

Minimum: 89 inch (2260 mm)

Required Wall Cavity (depth)

Minimum: 3.5 inch (89 mm)

Enclosure (width x height x depth, excludes padding)

14.3 x 84.2 x 3.4 inch
(361 x 2137 x 86 mm)

Grille (height x width)

11.5 x 59.5 inch (292 x 1511 mm)

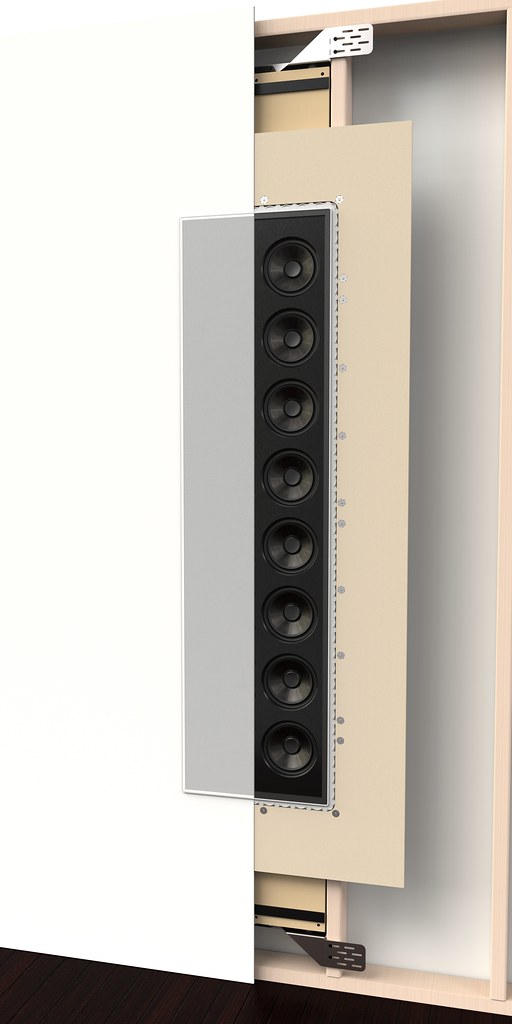

Installation Kit (included)

Choose appropriate size
1/2-inch drywall (PN: 40XWIWK05)
5/8-inch drywall (PN: 40XWIWK0625)

Weight & Dimensions

Enclosure (width x height x depth, excludes padding)

14.3 x 84.2 x 3.4 inch
(361 x 2137 x 86 mm)

Grille (height x width)

11.5 x 59.5 inch (292 x 1511 mm)

Shipping Weight:
160.0 lbs
