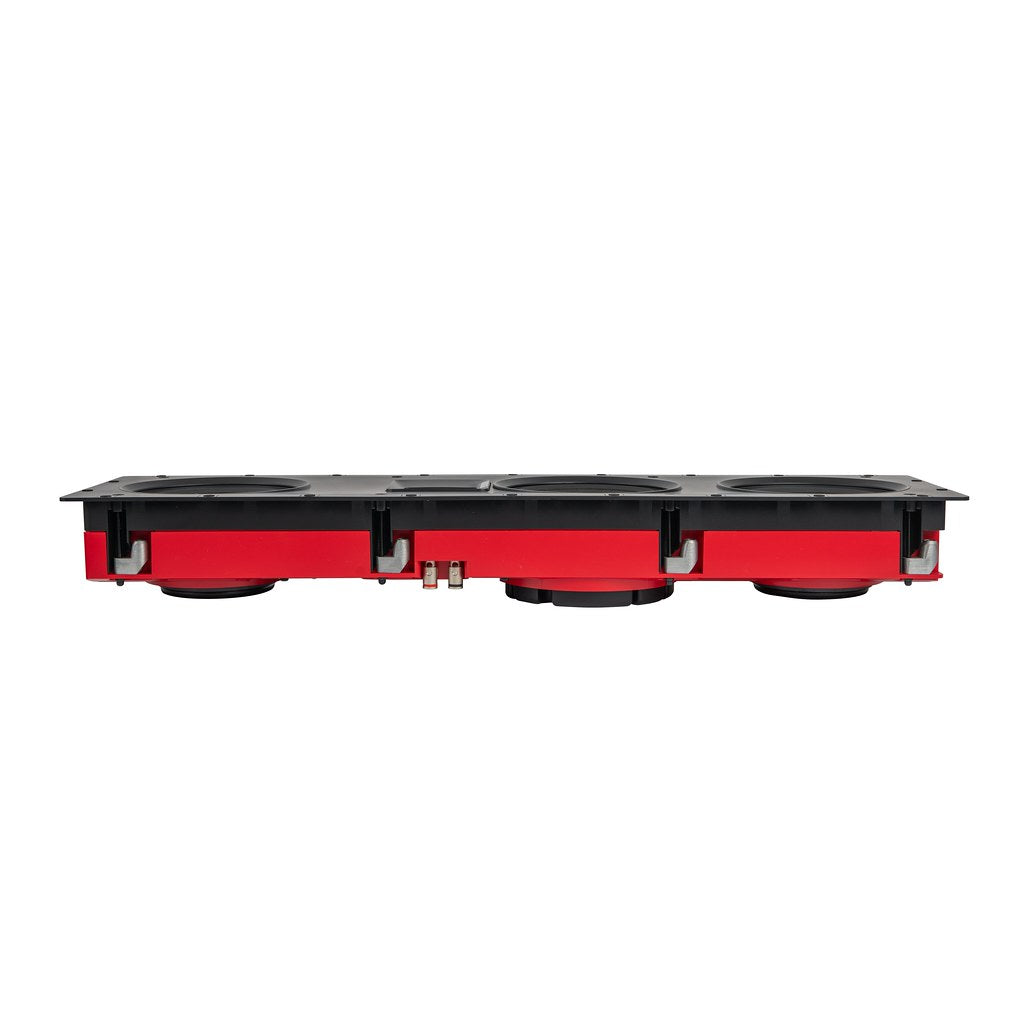

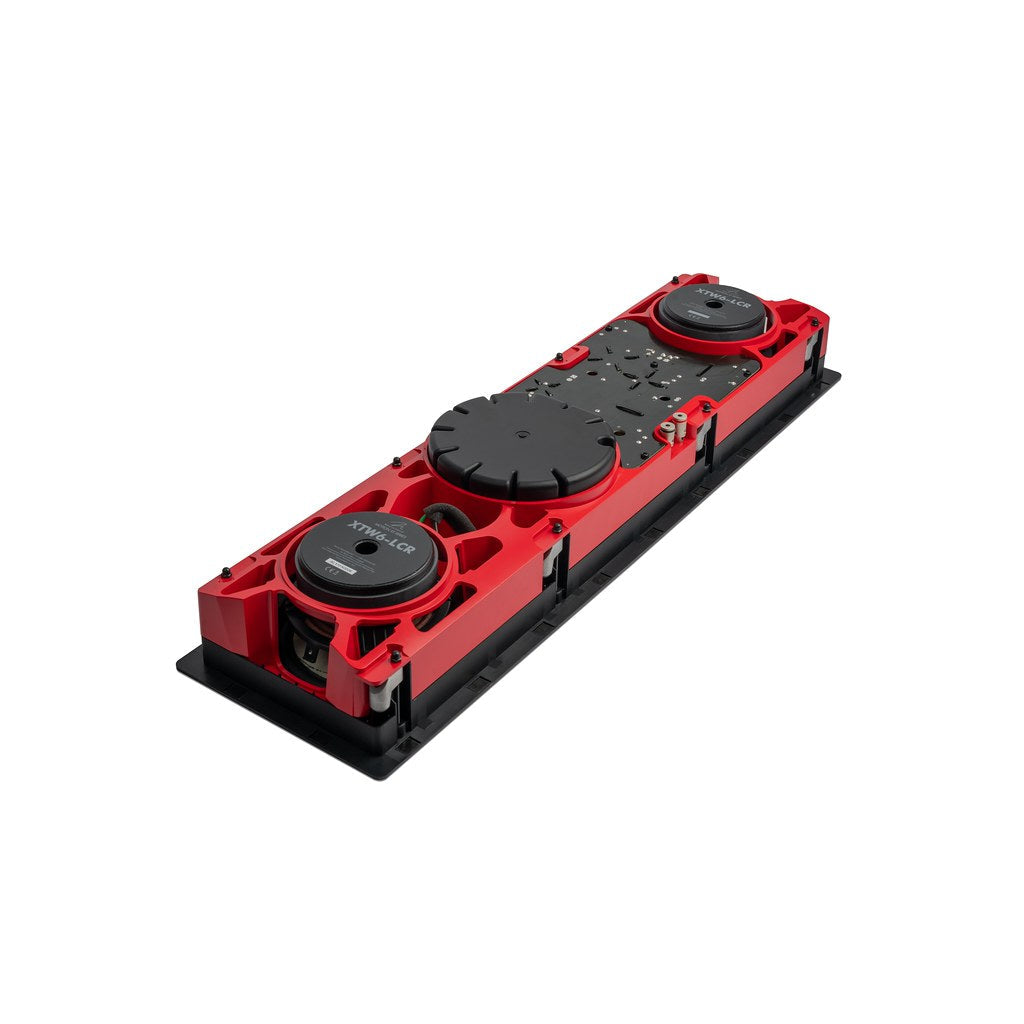

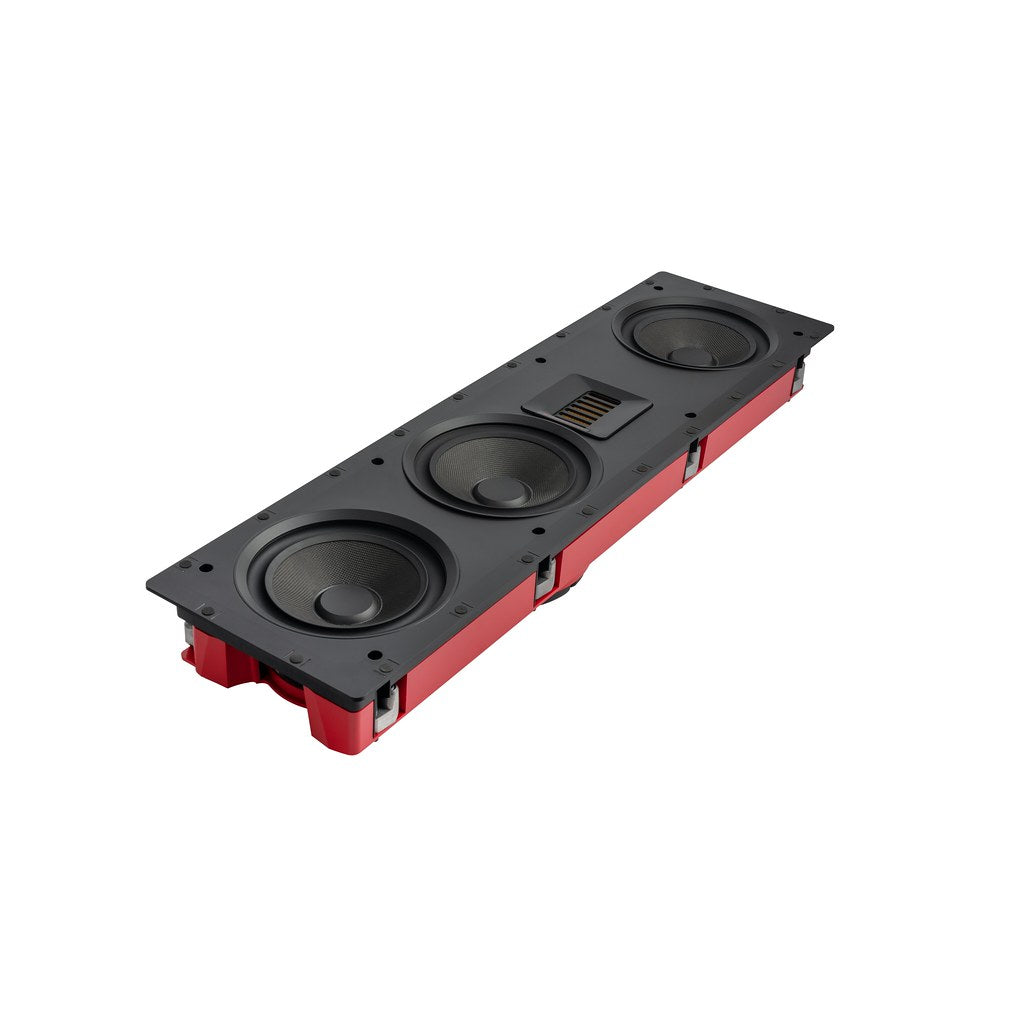

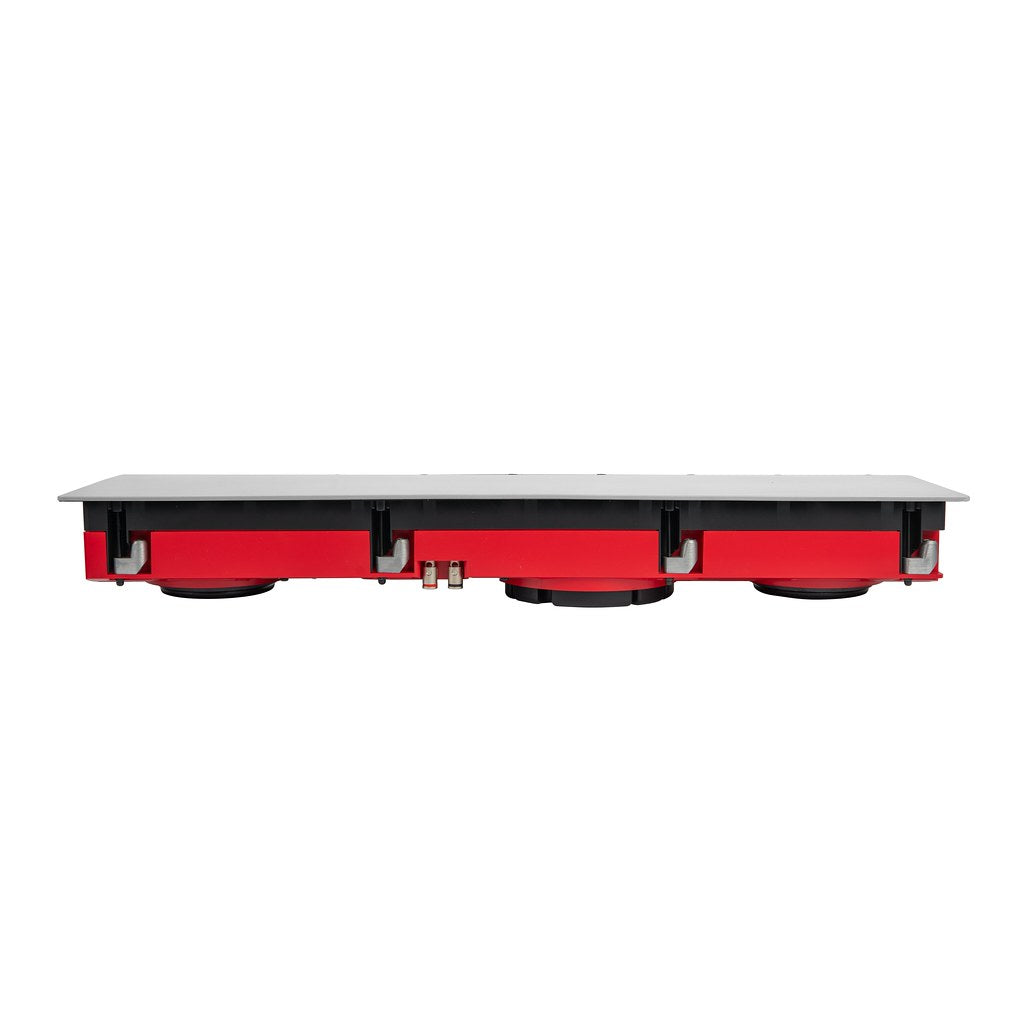

MartinLogan Motion XTW6-LCR In-Wall LCR Speaker
Contact us to order
Contact us for pricing and availability. We sell and ship across Canada, with orders arranged directly through our team.
Send us your enquiry below and we’ll help you choose the right product, confirm delivery options, and arrange your purchase.
Introducing the pinnacle of performance in the Motion XT CI series—the largest "LCR" model designed to elevate your audio experience to extraordinary heights. This exceptional speaker is equipped with unique features that set it apart from the rest.

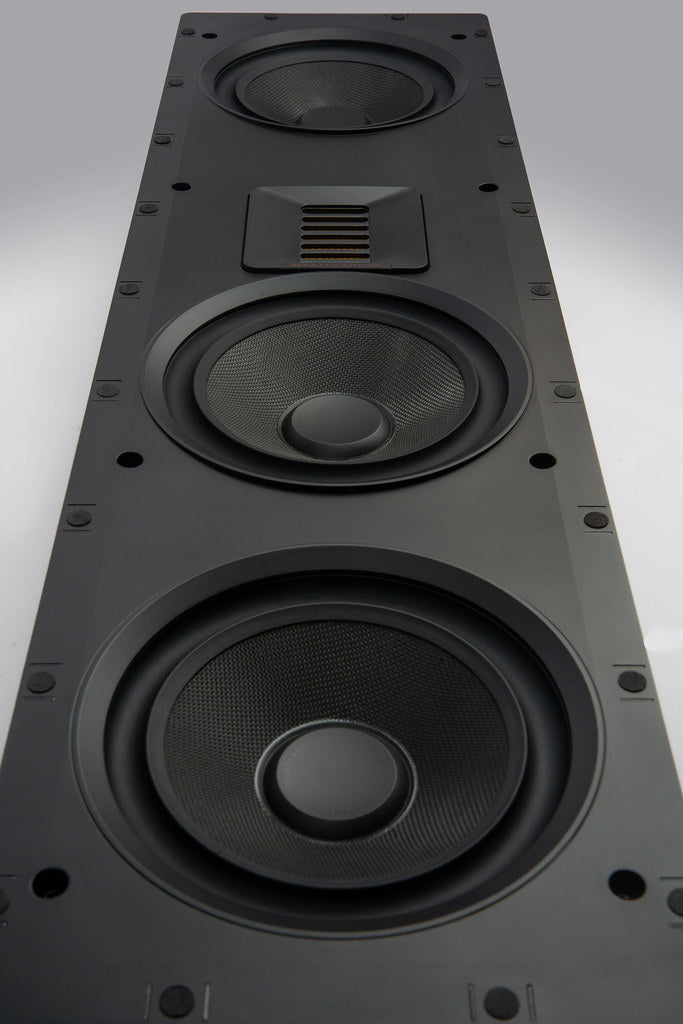

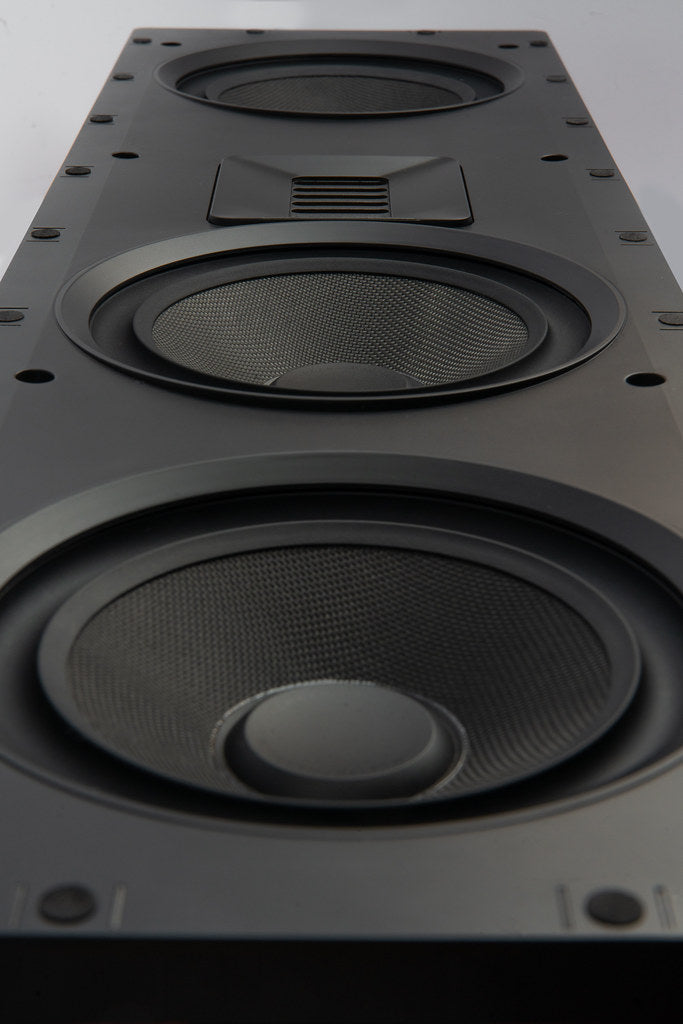

Experience unrivaled audio clarity with the inclusion of the FMT XT tweeter and dual 6.5" woven Kevlar Nomex-backed bass drivers. But what truly sets the XTW6-LCR apart is its dedicated 6.5" midrange driver, which brings its acoustic performance on par with traditional floor-standing speakers. This remarkable addition ensures a level of performance that surpasses expectations.
Adaptability meets convenience with the XTW6-LCR's rotating tweeter housing, allowing for horizontal usage when needed. It serves as the ideal choice for systems seeking exceptional performance without the large footprint typically associated with tower speakers.
Immerse yourself in extraordinary audio performance with the XTW6-LCR, where innovation and cutting-edge technology converge to redefine your listening experience. Discover a new level of performance without compromising on space.
Features
Frequency Response
44 - 25,000 Hz ±3dB
Tweeter Dispersion (horizontal x vertical)
80 x 30 degrees
Recommended Amplifier Power
Range 50–300 Watts
Sensitivity
93dB @2.83V/ 1 meter
Impedance
4 ohms. Compatible with 8 ohms
High Frequency Driver

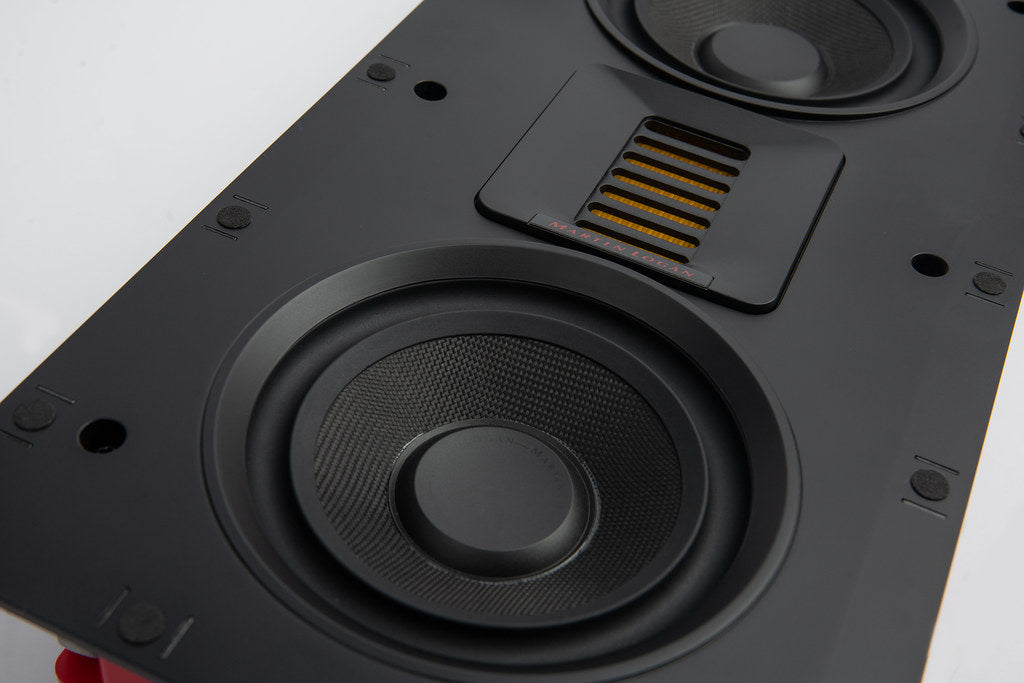

FMT Transducer 1.27” x 2.4” (3.22cm x 6.09cm) Opening 4.5” x 2.75” (11.43cm x 6.98cm) Diaphragm
Crossover Frequency
260, 2470 Hz
Crossover Type
3 way
Driver Configuration

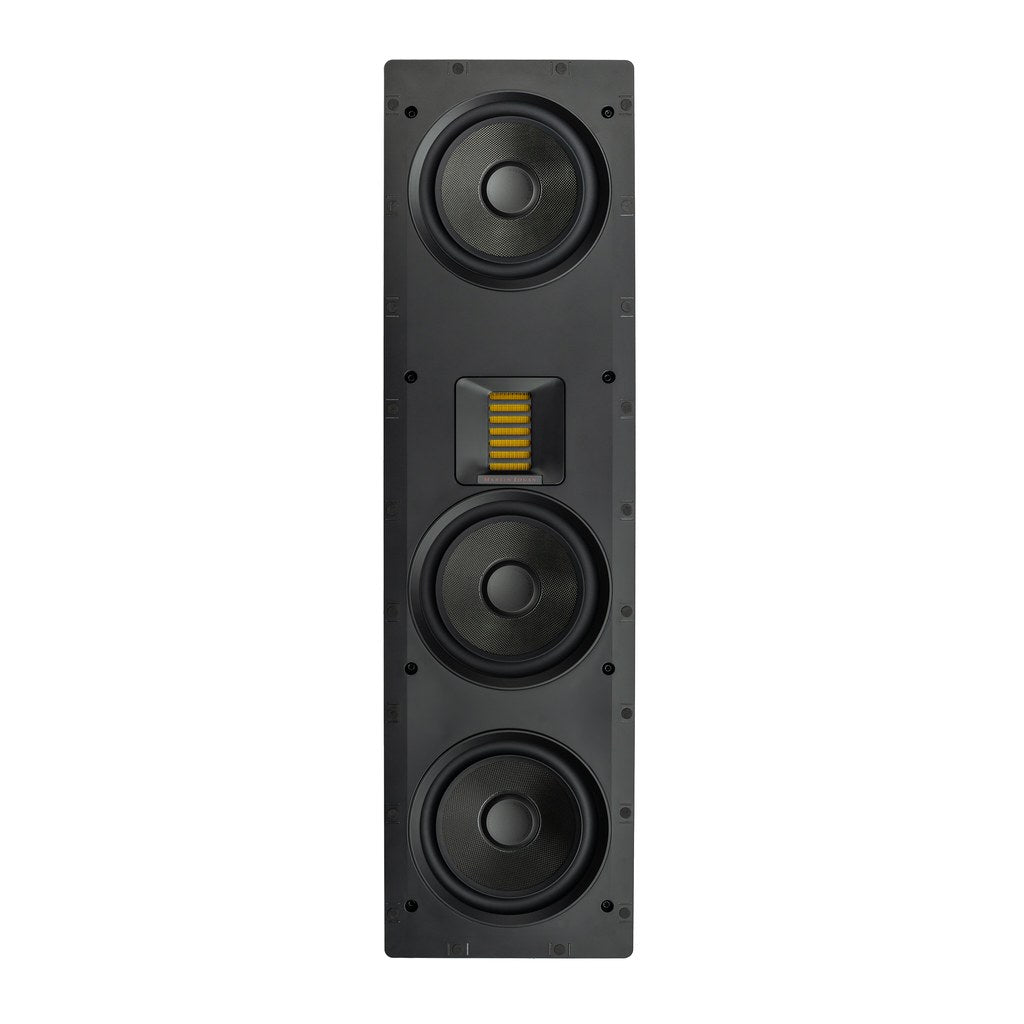

1 x 1.27” x 2.75” FMT, 1 x 6.5” midrange, 2 x 6.5” Woofers
Woofer Specifications

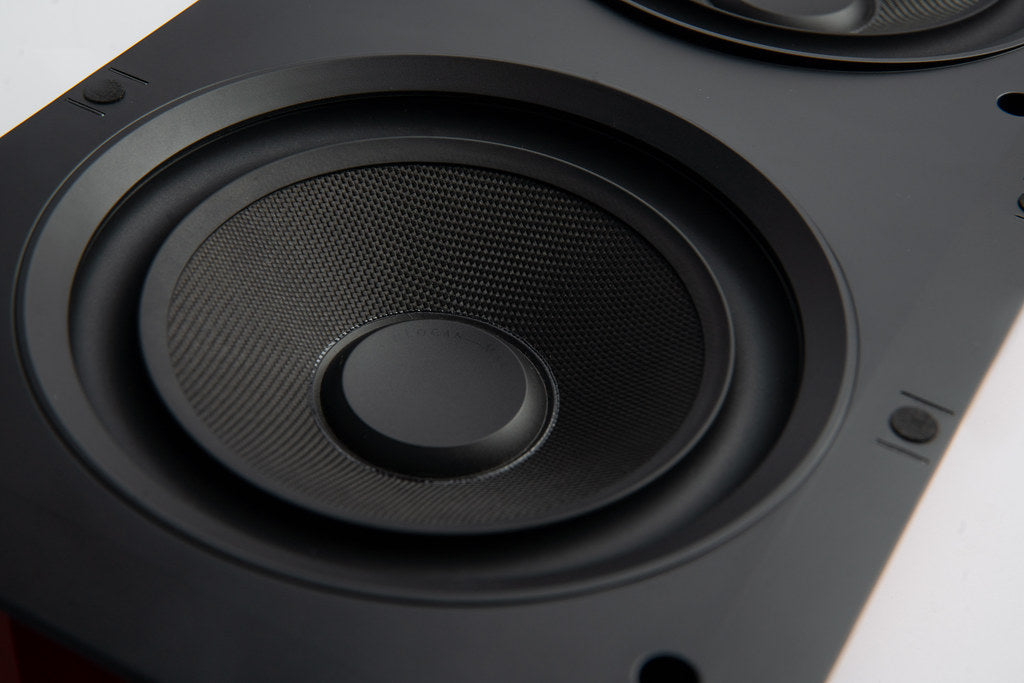

Two 6.5” (16.51 cm) cast aluminum basket, black Kevlar with Nomex backer cone, Open back chamber format. Concave dust cap.
Cabinet Material

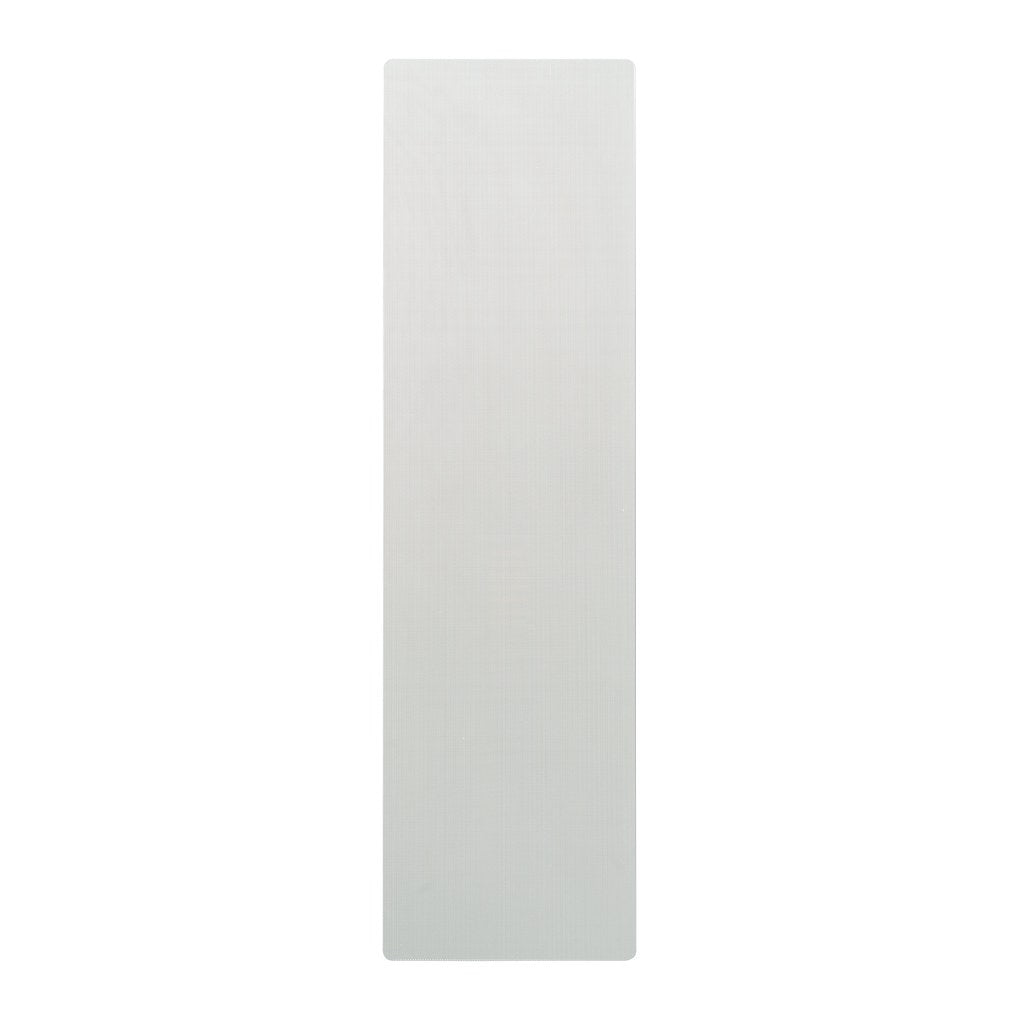

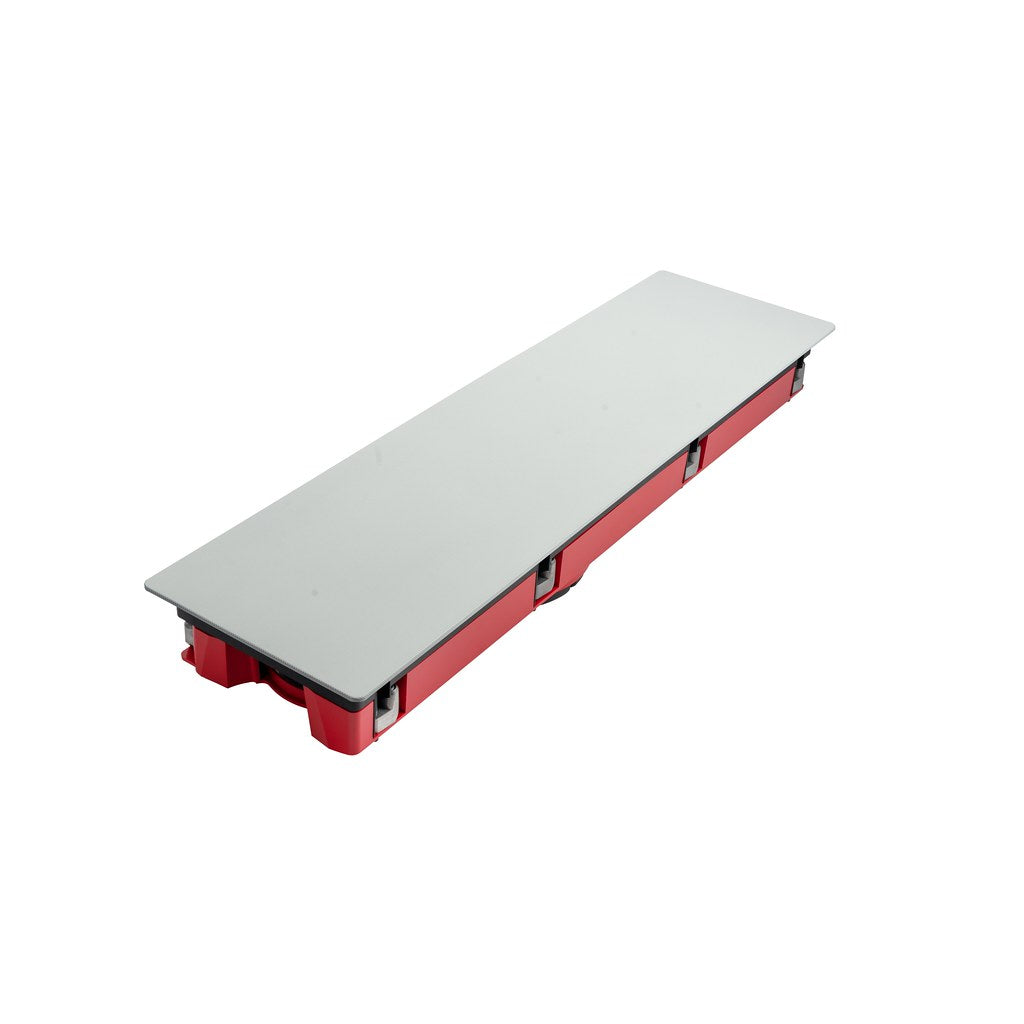

Black w/ White Paintable Grill
Connector
Push style
Components
Custom air core coil inductors, polyester film capacitors in series and low DF electrolytic capacitors FMT thermal/current protection.
Max Power Handling
150 Watts
Midrange Driver
One 6.5” (16.51 cm) cast aluminum basket, black Kevlar with Nomex backer cone, Sealed back chamber format. Concave dust cap
Weight
18.9 lbs. each (8.6 kg)
Dimensions (overall size)
28” x 7.69” x 3.67” (71.12 x 19.5 x 9.31cm)
Required Wall Opening (includes tolerance)
6.64” x 27” (16.9 x 68.5cm)
Projection From Wall Surface
0.13” (0.32cm)
Depth Behind Wall Surface
3.54” (8.99cm)
Dimensions (overall size)
28” x 7.69” x 3.67” (71.12 x 19.5 x 9.31cm)
Required Wall Opening (includes tolerance)
6.64” x 27” (16.9 x 68.5cm)
Weight
18.9 lbs. each (8.6 kg)
