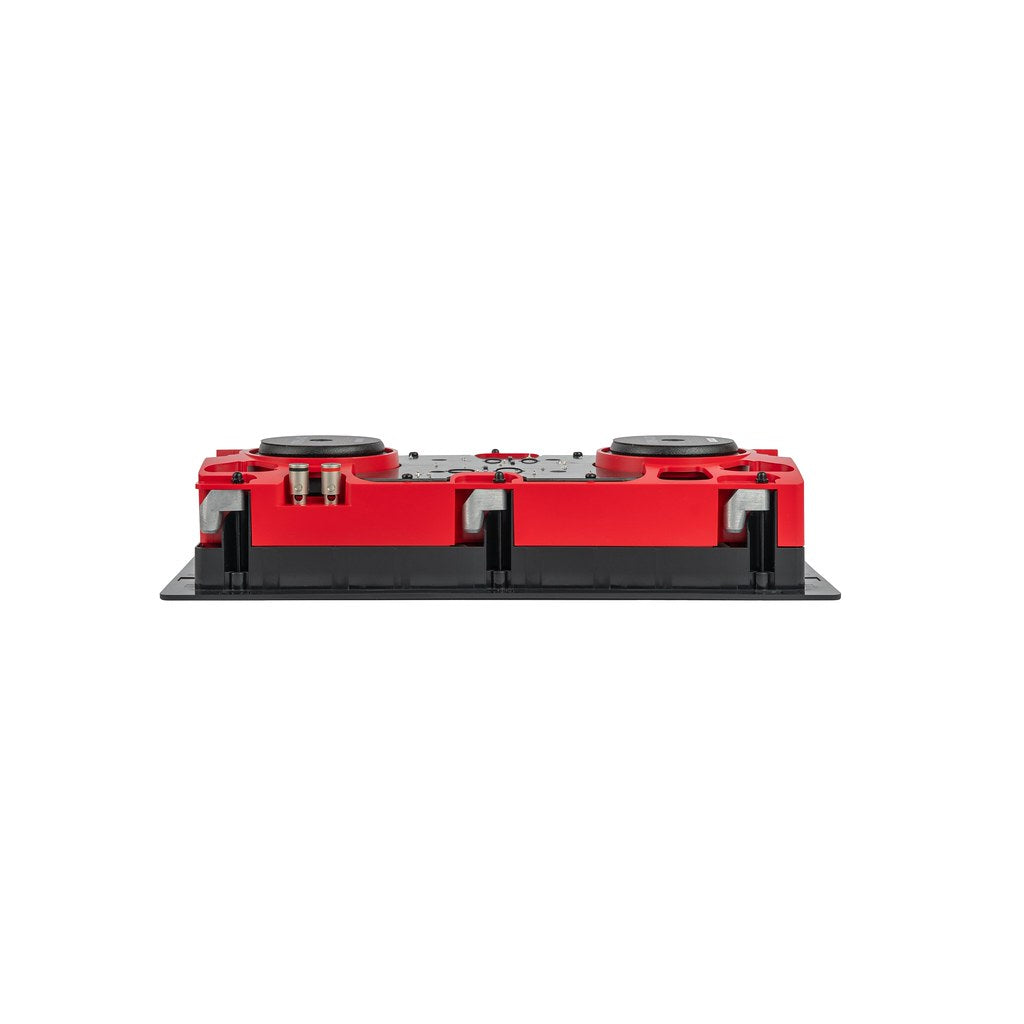

Martin Logan Motion XTW5-LCR

Style
$1,399.99 CAD
$1,399.99 CAD
Shipping calculated at checkout.

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

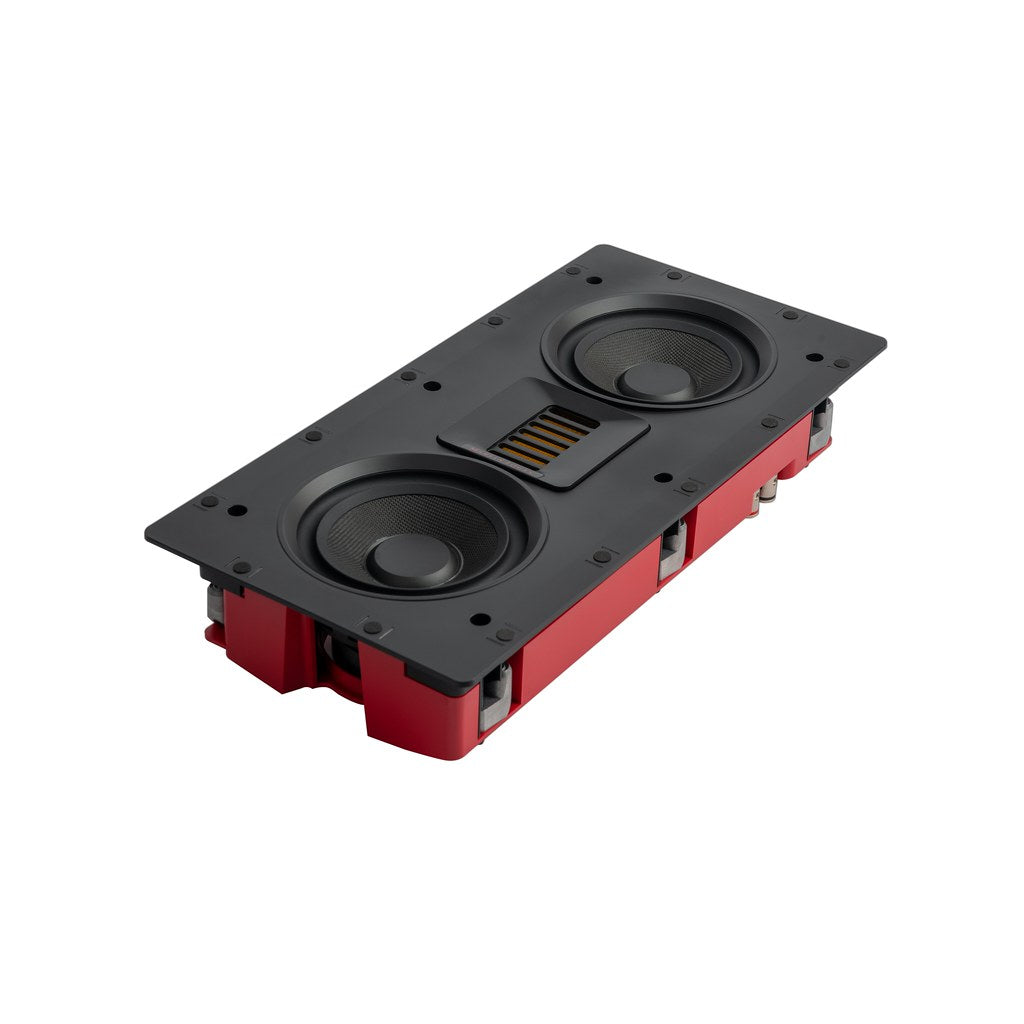

Introducing the versatile powerhouse of the Motion XT CI series—the XTW5-LCR. This compact "LCR" model is designed to deliver exceptional performance, whether as a center, front, or surround channel speaker. Its flexible nature and rectangular shape make it an ideal choice for various setups where higher performance is desired.

Enhance your visual experience with the perfect complement to a flat panel TV or projector screen—the XTW5-LCR. Its compact size allows for flexible placement options without compromising on incredible performance.

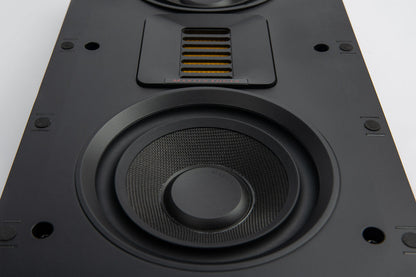

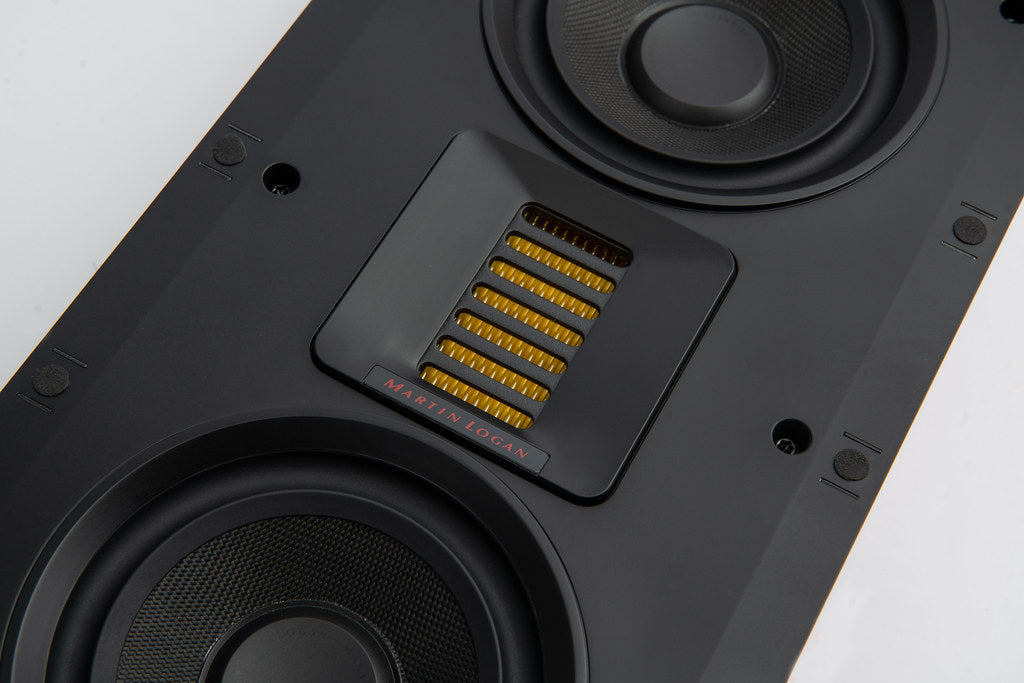

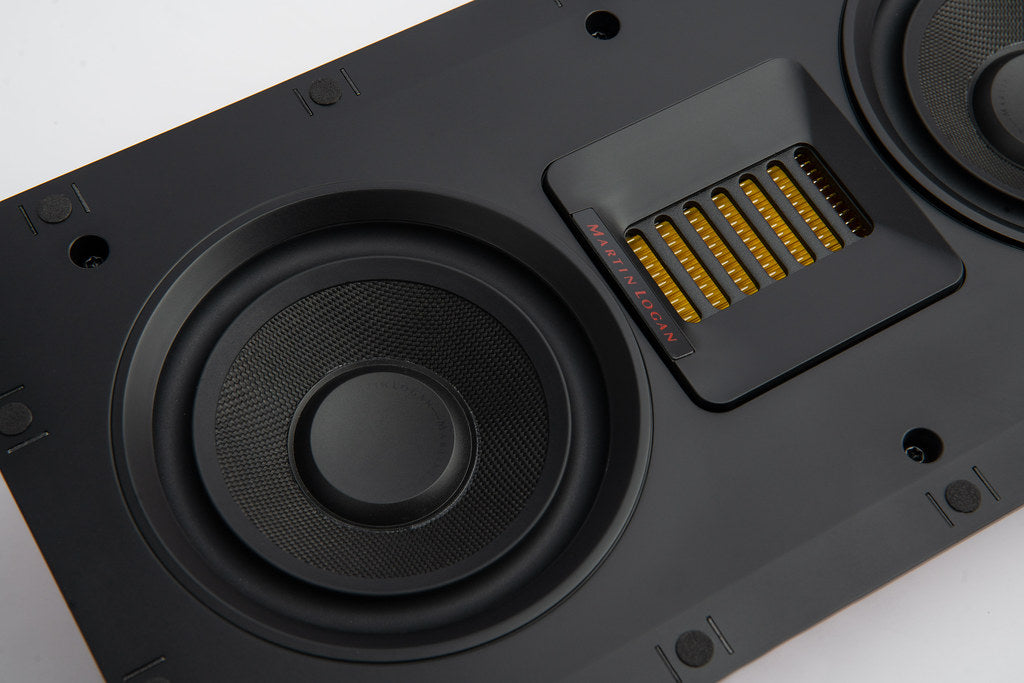

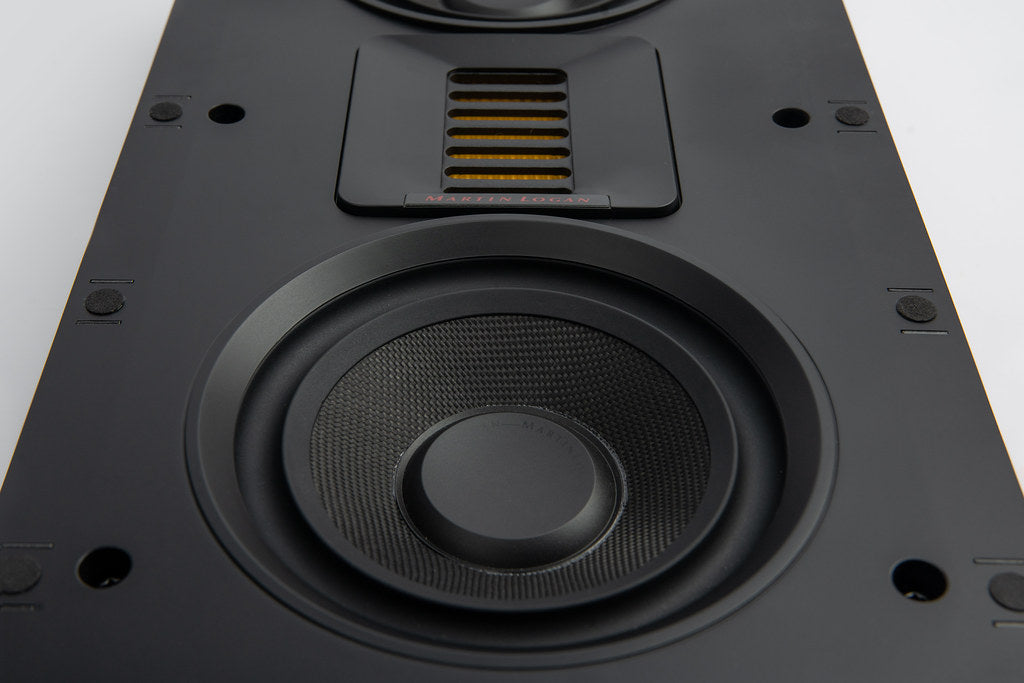

Experience remarkable audio precision with the XTW5-LCR's FMT XT tweeter. To optimize sound dispersion according to your space, the tweeter can be rotated, providing you with flexibility and the ability to tailor the sound to your preferences.

Discover the perfect balance between performance and versatility with the XTW5-LCR. Elevate your audio setup to new heights, where exceptional sound quality meets adaptability.

Features

Frequency Response
61 - 25,000 Hz ±3dB

Tweeter Dispersion (horizontal x vertical)
80 x 30 degrees

Recommended Amplifier Power
Range 50–250 Watts

Sensitivity
92dB @2.83V/ 1 meter

Impedance
4 ohms. Compatible with 8 ohms

High Frequency Driver
FMT Transducer 1.27” x 2.4” (3.22cm x 6.09cm) Opening 4.5” x 2.75” (11.43cm x 6.98cm) Diaphragm

Crossover Frequency
2,180 Hz

Crossover Type
2 way

Driver Configuration

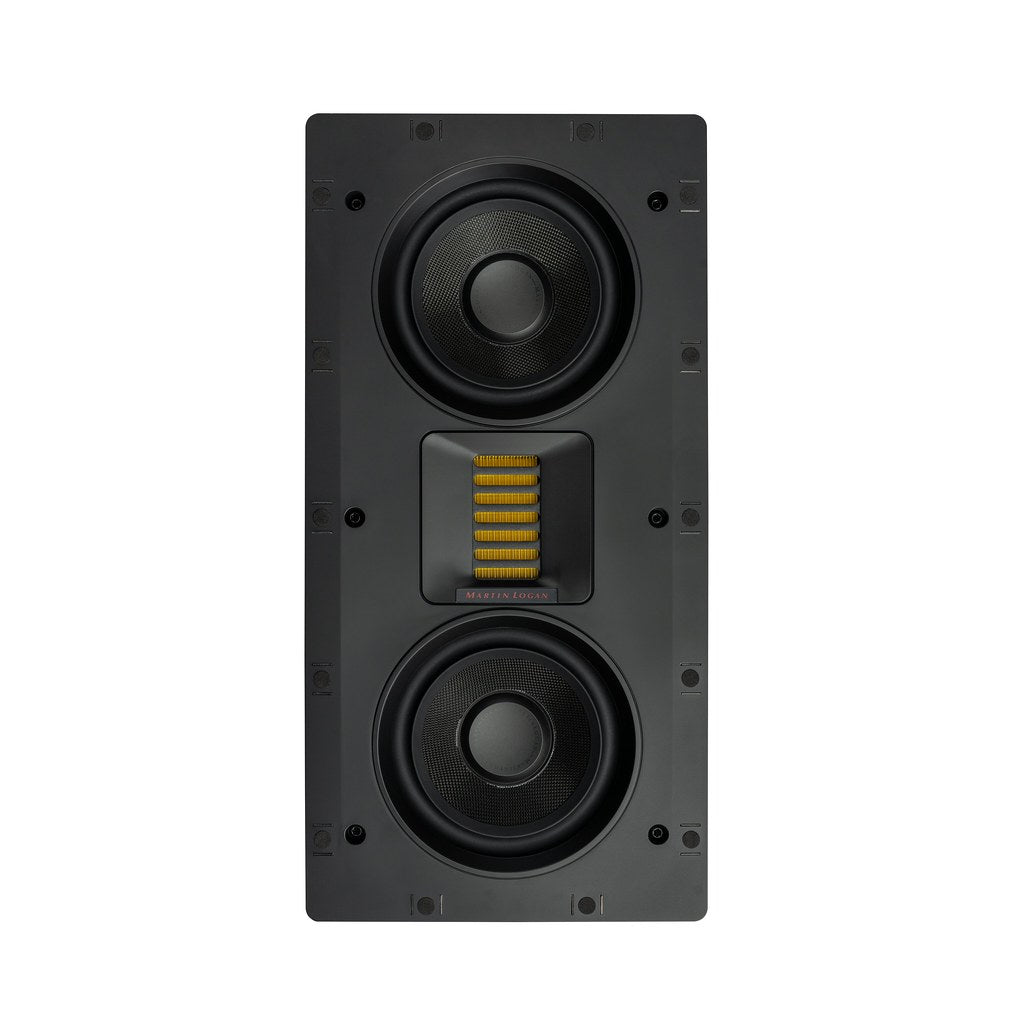

1 x 1.27” x 2.75” FMT, 2 x 5.25” Woofers

Woofer Specifications
Two 5.25” (13.33 cm) cast aluminum basket, black Kevlar with Nomex backer cone, Open back chamber format. Concave dust cap.

Cabinet Material

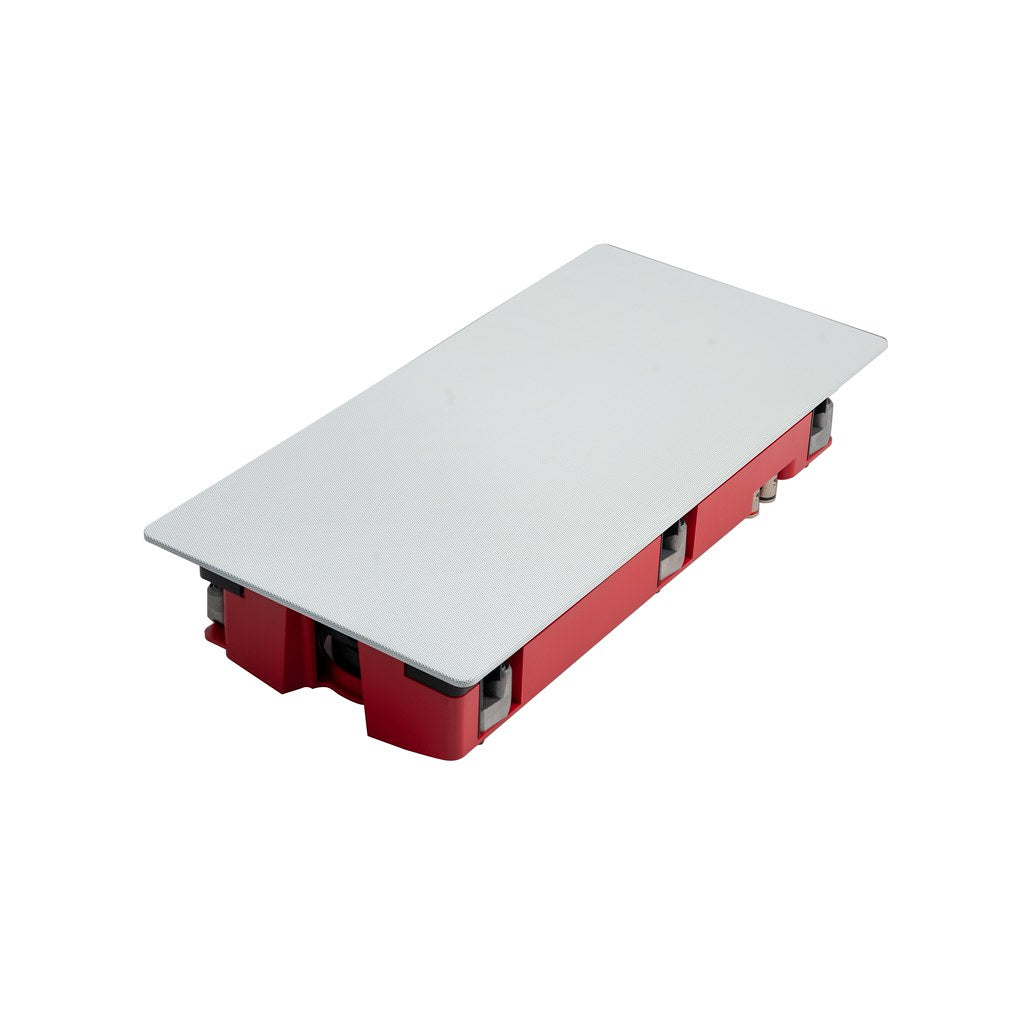

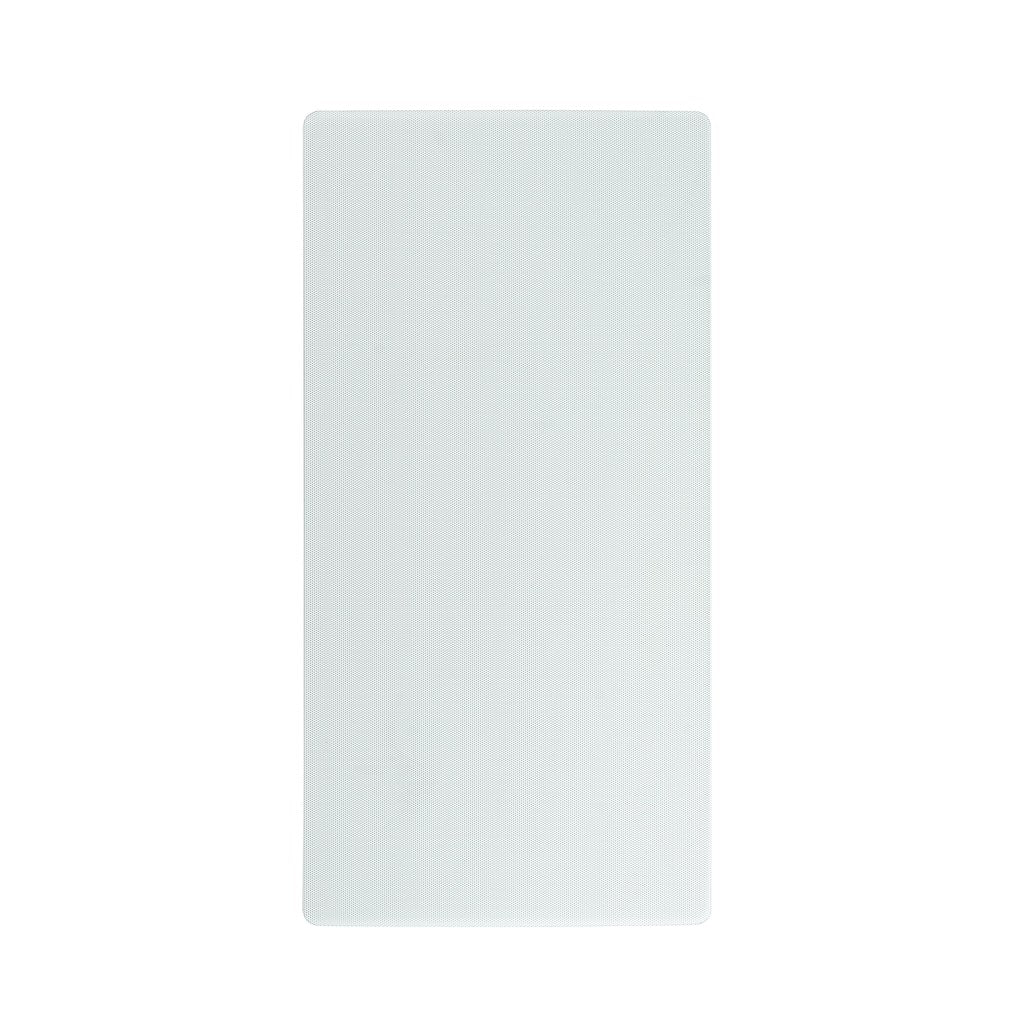

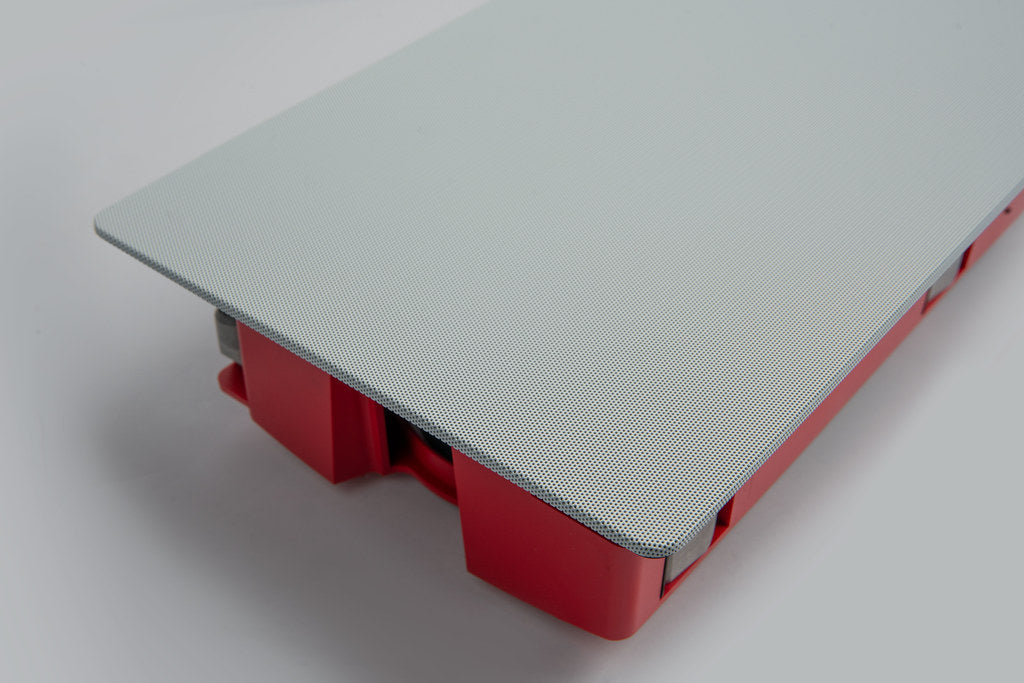

Black w/ White Paintable Grill

Connector
Push style

Components
Custom air core coil inductors, polyester film capacitors in series and low DF electrolytic capacitors FMT thermal/current protection.

Max Power Handling
125 Watts

Weight
9.8 lbs. (4.4 kg) each

Dimensions (overall size)
7.87” x 15.79” x 3.32” (20 x 40.1 x 8.43cm)

Required Wall Opening (includes tolerance)
14.5” x 6.5” (36.8 x 16.5cm)

Projection From Wall Surface
0.12” (0.3cm)

Depth Behind Wall Surface
3.20” (8.13cm)

Weight & Dimensions

Dimensions (overall size)
7.87” x 15.79” x 3.32” (20 x 40.1 x 8.43cm)

Required Wall Opening (includes tolerance)
14.5” x 6.5” (36.8 x 16.5cm)

Weight
9.8 lbs. (4.4 kg) each
