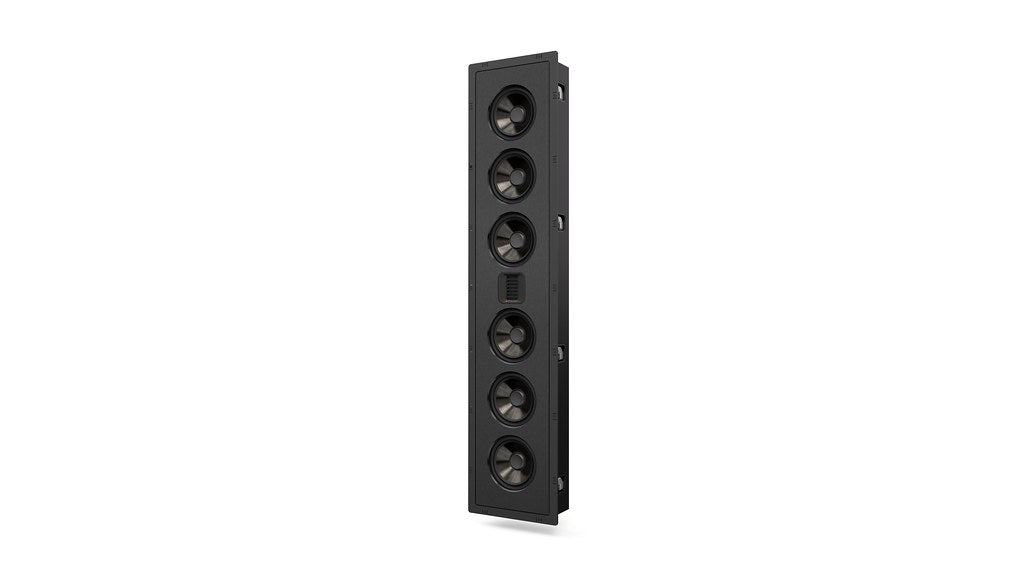

Martin Logan Monument 7XW

Style
$5,999.99 CAD
$5,999.99 CAD
Shipping calculated at checkout.

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

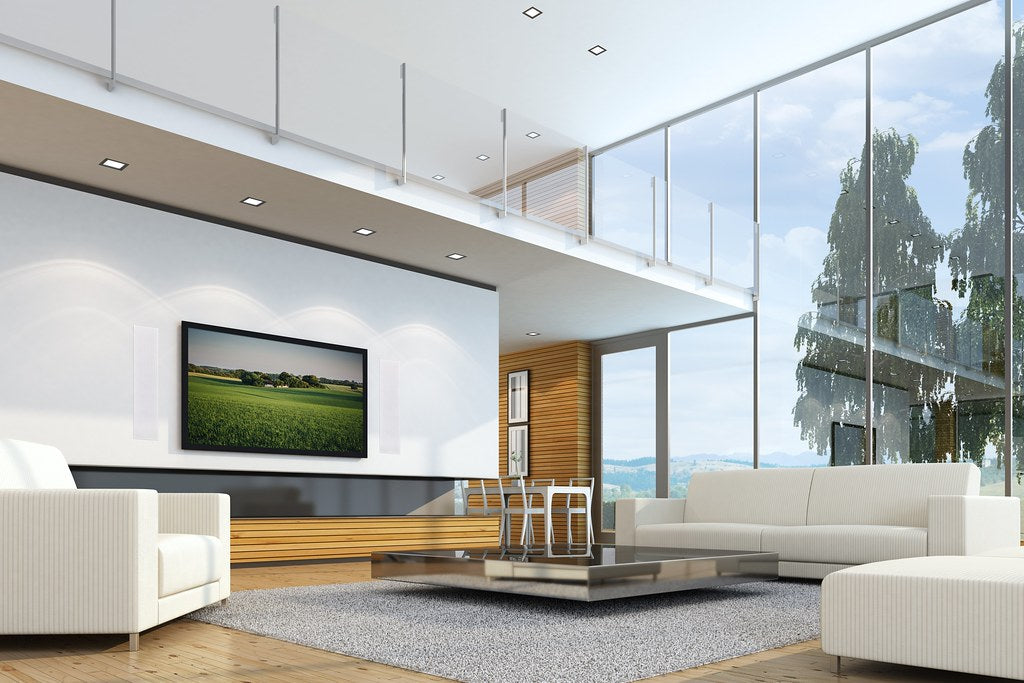

Introducing Masterpiece CI, the ultimate solution for both extreme home theater experiences and transcendent 2-channel listening. Experience the pinnacle of discreet in-wall and in-ceiling loudspeaker design with state-of-the-art Truth in Sound, all while saving valuable floor space.

Masterpiece CI boasts lightning-fast, low-distortion Folded Motion XT Obsidian tweeters, meticulously crafted Vojtko crossover networks, and unidirectional carbon fiber multi-section cone drivers with Nomex® backers. This combination results in unparalleled realism that brings your audio to life.

With each model in the Masterpiece CI Series paying homage to the acoustic achievements of MartinLogan's original iconic masterpiece, our flagship floorstanding electrostatic speakers, you can expect nothing short of exceptional audio performance.

Elevate your listening experience to new heights with Masterpiece CI—where innovation and craftsmanship converge to deliver a truly remarkable sound experience.

Features

-Frequency Response 52–25,000 Hz ± 3 dB

-Tweeter Dispersion (horizontal x vertical) 80° x 30°

-Sensitivity 95 dB @ 2.83 volts/ meter

-Impedance 4 ohms. Compatible with 4, 6, or 8 ohm rated amps.

-High Frequency Driver 1.25 x 2.4 inch (3.2 x 6.1 cm) Folded Motion XT Obsidian transducer with 4.5 x 2.75 inch (11.4 x 7 cm) diaphragm.

-Crossover Frequency 200, 3200 Hz

-Tweeter Aiming Rotatable tweeter for horizontal or vertical installations

-Mid-Frequency Drivers 6.5-inch (16.5 cm) black unidirectional carbon fiber multi-section cone with Nomex® backer and cast aluminum basket, sealed back chamber format. Concave dust cap.

-Low Frequency Driver Two 6.5-inch (16.5 cm) black unidirectional carbon fiber multi-section cone with Nomex® backer and cast aluminum basket, sealed back chamber format. Concave dust cap.

-Passive Radiators Three 6.5-inch (16.5 cm) unidirectional black carbon fiber cone with Nomex® backer and cast aluminum basket, sealed back chamber format. Concave dust cap.

-Components Custom air core coil inductors, polypropylene film capacitors, and low DF electrolytic capacitors. Thermal/current protection.

-Suitable Amplifier Range 20–300 watts

-Max Power Handling 150 watts

-Binding Post Inputs Push style (two sets for easy installation)

-Weight 44.5 lb (20.2 kg)

-Dimensions (overall size) 46.86 x 10.6 x 4.11 inch (1190.2 x 269.2 x 104.3 mm)

-Required Wall Opening (includes tolerance) 45.57 x 9.29 inch (1157 x 236 mm)

-Projection From Wall Surface 0.31 inch (7.8 mm)

-Depth Behind Wall Surface 3.8 inch (96.5 mm)

-Optional Accessories Pre-install bracket (PN: 7XWBRK)

Weight & Dimensions

Dimensions (overall size)
46.86 x 10.6 x 4.11 inch
(1190.2 x 269.2 x 104.3 mm)

Weight
44.5 lb (20.2 kg)
