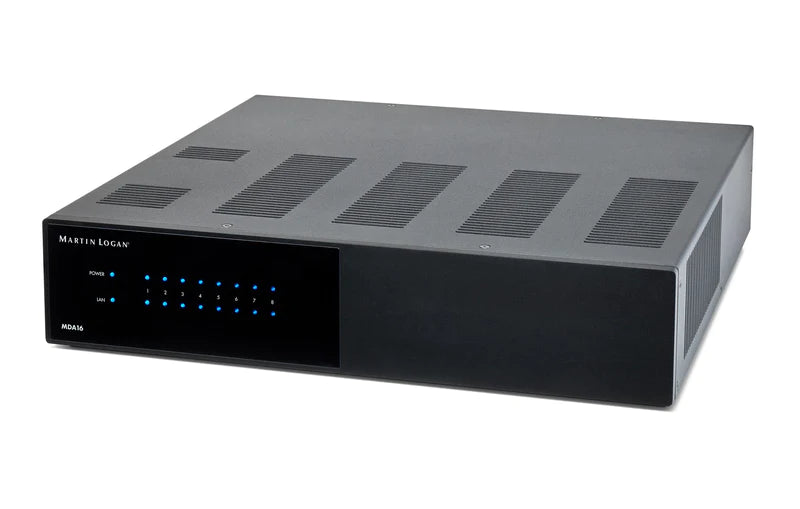

MartinLogan MDA16 Multi-Zone Distribution Amplifier
Contact us to order
Contact us for pricing and availability. We sell and ship across Canada, with orders arranged directly through our team.
Send us your enquiry below and we’ll help you choose the right product, confirm delivery options, and arrange your purchase.
MDAs (Multi-Distribution Amplifiers) represent the pinnacle of flexibility and adaptability in audio distribution systems. Designed to excel in any room, they deliver unparalleled performance that will impress even the most discerning listeners.
Enjoy the freedom to connect analog and digital inputs with full matrix switching capabilities, allowing you to customize your audio setup to your preferences. Each zone benefits from independent room correction through ARC® Genesis, ensuring that the audio reproduction is optimized for the unique acoustic characteristics of every listening space. Say goodbye to deviations from an ideal response as these advanced technologies intelligently adjust and enhance the audio output.
Whether it's for a residential or commercial setting, MDAs offer a robust solution for distributing high-quality audio throughout your space. Experience exceptional performance and audio fidelity in every room, allowing you to immerse yourself in a captivating audio experience tailored to your specific environment.
Upgrade your audio distribution system with MDAs and unleash the full potential of your audio setup. Benefit from their cutting-edge technologies, which go beyond conventional solutions, and enjoy the transformative power of precise room correction that ensures an optimal listening experience in every zone. With MDAs, you can create an audio system that adapts to your needs and delivers outstanding performance in any room or environment.
Features
Channels / Zones
16 channels / Up to 8 zones
Power Output RMS per Channel (8 Ohm)
60 Watts
Power Output RMS per Channel (4 Ohm)
120 Watts
High Output Mode (Bridged) RMS per Channel (8 Ohm)
200 Watts
Digital-to-Analog Converter
PCM up to 24 bit/192 kHz
Inputs (analog)
8x RCA pairs (left/right)
Inputs (digital S/PDIF)
2x RCA coaxial; 2x optical (Toslink)
Inputs (network)
RJ-45 10Base-T/100
Base-TX ethernet port
Inputs (trigger)
1x 3.5mm (5 – 24V DC/AC)
Outputs (speaker level)
8x removable Phoenix style (left/right) accommodate wire up to 12AWG
Output (analog, passthrough)
2x RCA pair (left/right)
Outputs (subwoofer)
8x RCA (with bass management and room correction)
Outputs (digital matrix)
1x optical (Toslink)
Outputs (other)
1x 3.5mm 12V trigger
Audio In-Out Matrix
Yes
Advanced Load Monitoring
Yes
Controls (via web-based UI)
Bass level: ±6dB for each zone;
Trebel level: ±6dB for each zone;
Level balancing: ±10dB for each zone
Controls (back panel)
Power Mode: Auto, Trigger,
External Command;
Network Reset (pinhole);
Factory Reset (pinhole);
Main Power: On /Off
Microphone (for room correction)
Included dual input microphone
(3.5mm and mini-USB)
Setup
Web-based user interface
IP Control (via IP or RS-232)
Drivers for Control4, Crestron, Savant, URC, Elan
AC Voltage
120V~50/60Hz
Rack Mount Ears / Feet
Included
Rack Space (feet removed)
2U
Dimensions (H x W x D, with feet)
3.5” x 17” x 16.4” (8.9 x 43.2 x 41.7 cm)
Frequency Response
10Hz – 20kHz ±0.5dB
Room Correction
Anthem Room Correction (ARC®)
Inputs (Other)
Micro-USB (for ARC); RS-232
Dimensions (H x W x D, with feet)
3.5” x 17” x 16.4” (8.9 x 43.2 x 41.7 cm)
Weight
24 lbs. (10.8kg)
