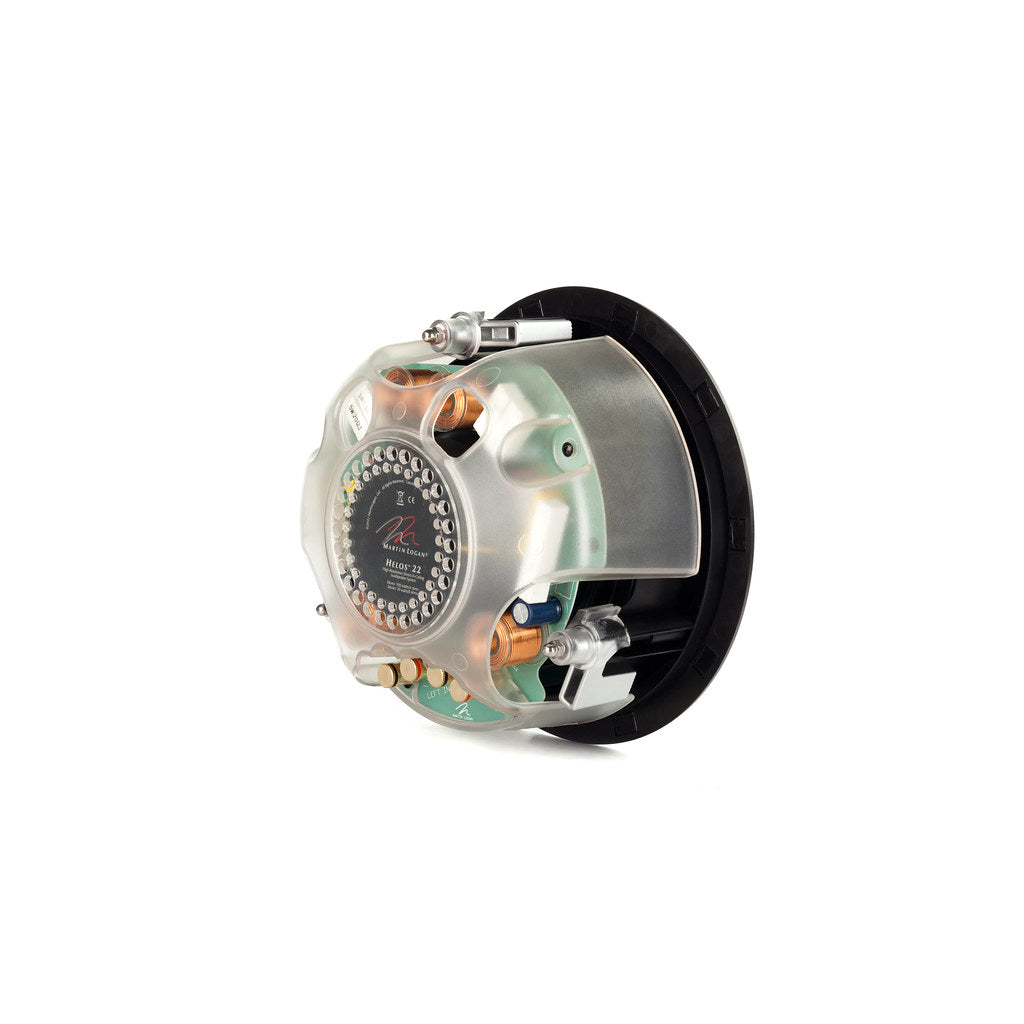

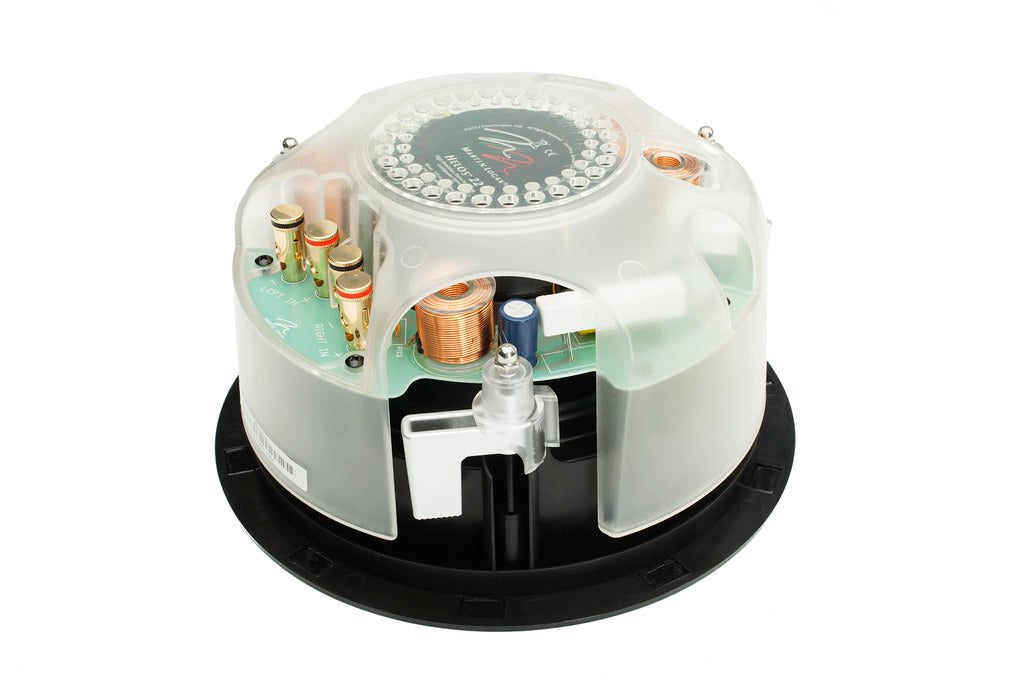

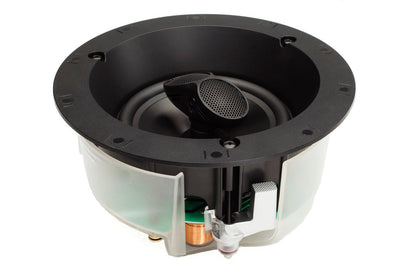

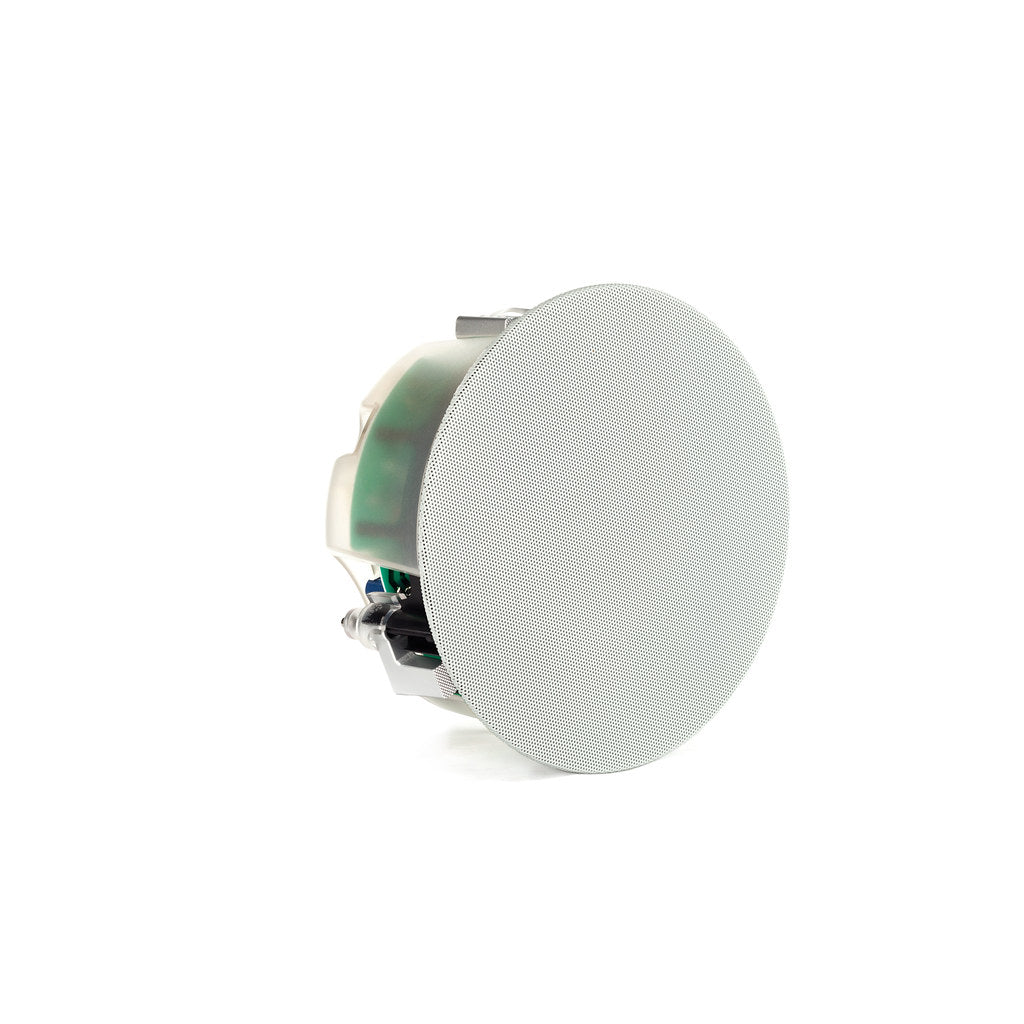

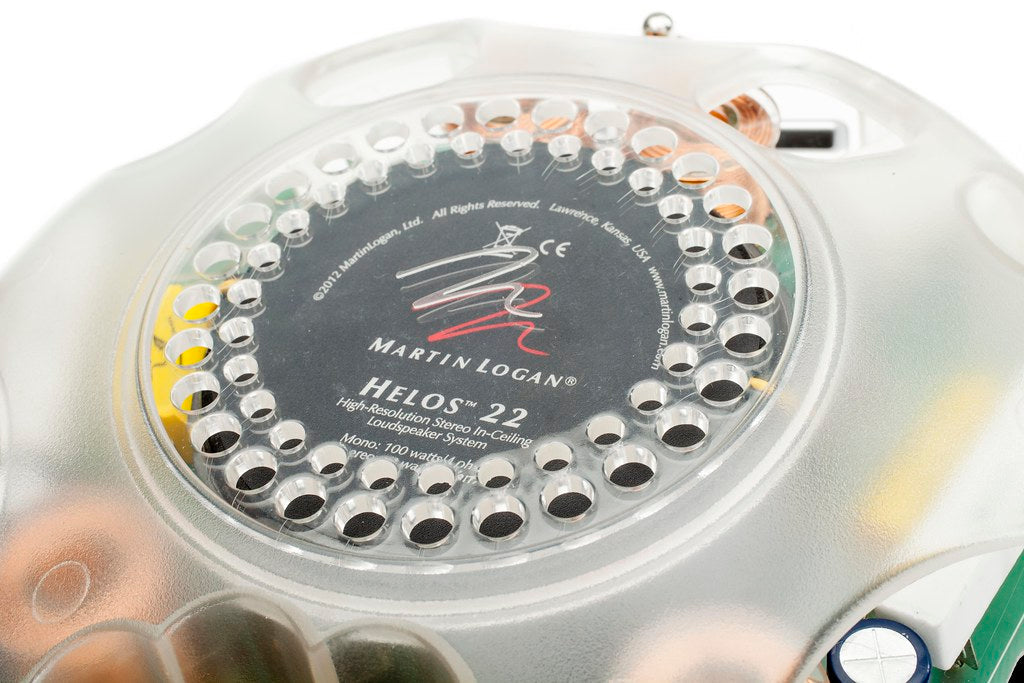

Martin Logan Helos 22

Style
$599.99 CAD
$599.99 CAD
Shipping calculated at checkout.

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

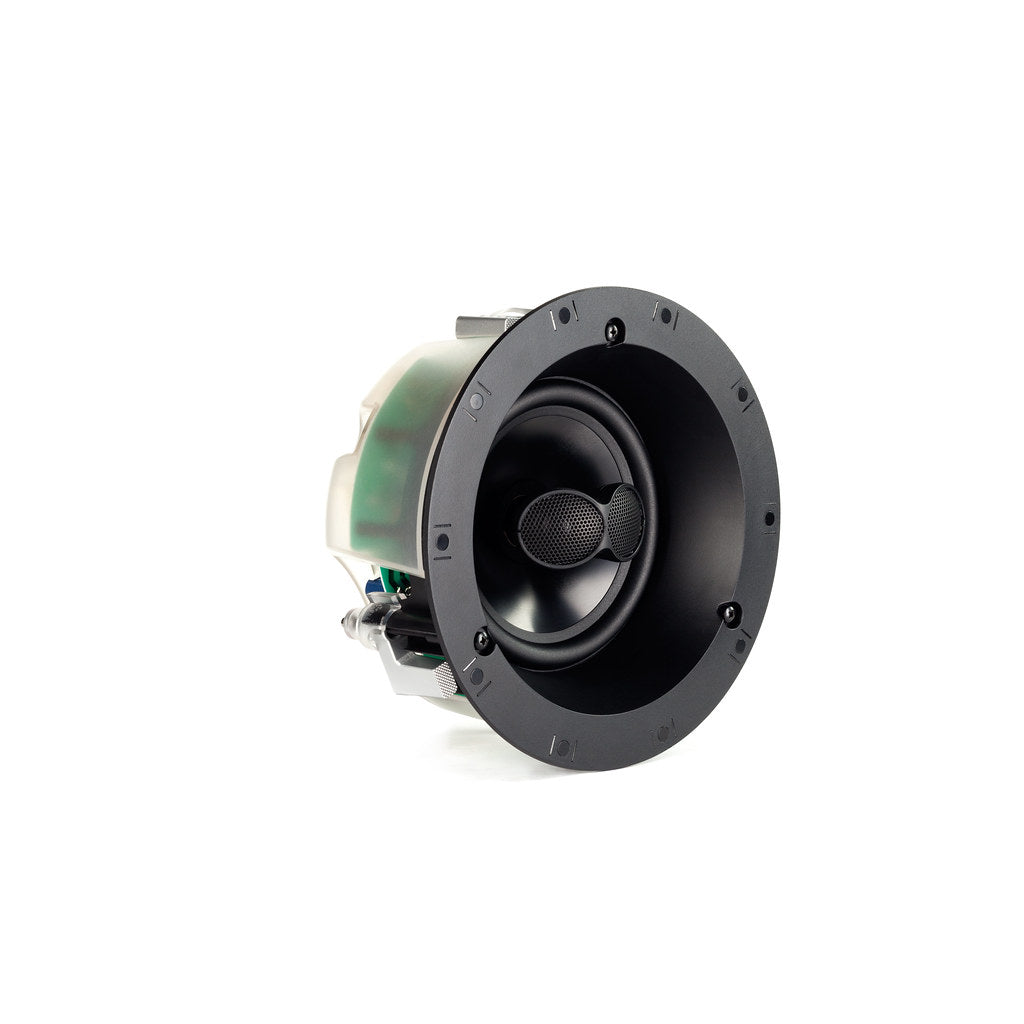

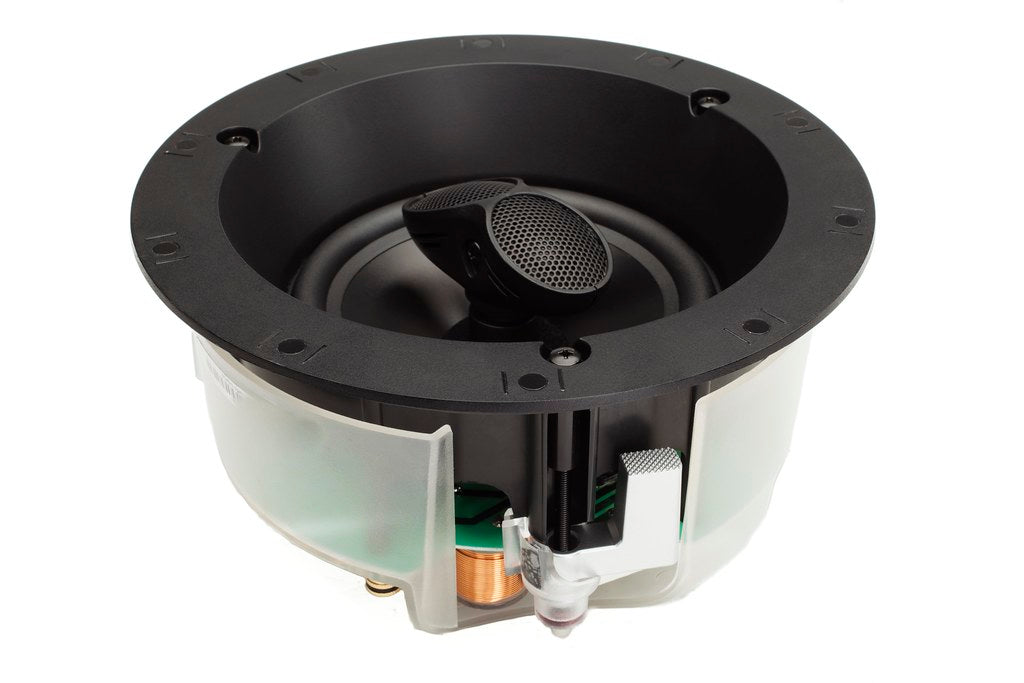

Introducing the Helos 22, a remarkable high-resolution stereo in-ceiling loudspeaker designed to deliver exceptional audio performance. Equipped with dual 0.75-inch neodymium soft dome tweeters, an aluminum cone woofer, and MartinLogan's proprietary Vojtko crossover topology, this speaker is engineered to provide an immersive and precise listening experience.

The Helos 22's neodymium soft dome tweeters ensure detailed and accurate high-frequency reproduction, capturing every nuance and intricacy of your favorite music or movies. The aluminum cone woofer complements the tweeters, delivering rich and impactful low-frequency response with remarkable clarity.

With the incorporation of MartinLogan's Vojtko crossover topology, the Helos 22 achieves seamless integration between its drivers, resulting in a harmonious and cohesive soundstage. This advanced crossover design enhances the speaker's performance and ensures a balanced and natural sound reproduction.

Experience high-resolution audio with the Helos 22 as it transforms your ceiling into a stage for immersive sound. Whether you're creating a dedicated listening room, setting up a home theater system, or simply elevating your everyday audio experience, the Helos 22 is designed to exceed your expectations.

Indulge in the precision and clarity of the Helos 22 and let it immerse you in a world of high-resolution sound. Elevate your listening experience with this exceptional in-ceiling loudspeaker and discover the true essence of audio excellence.

Features

Frequency Response
47–20,000 Hz ±3dB

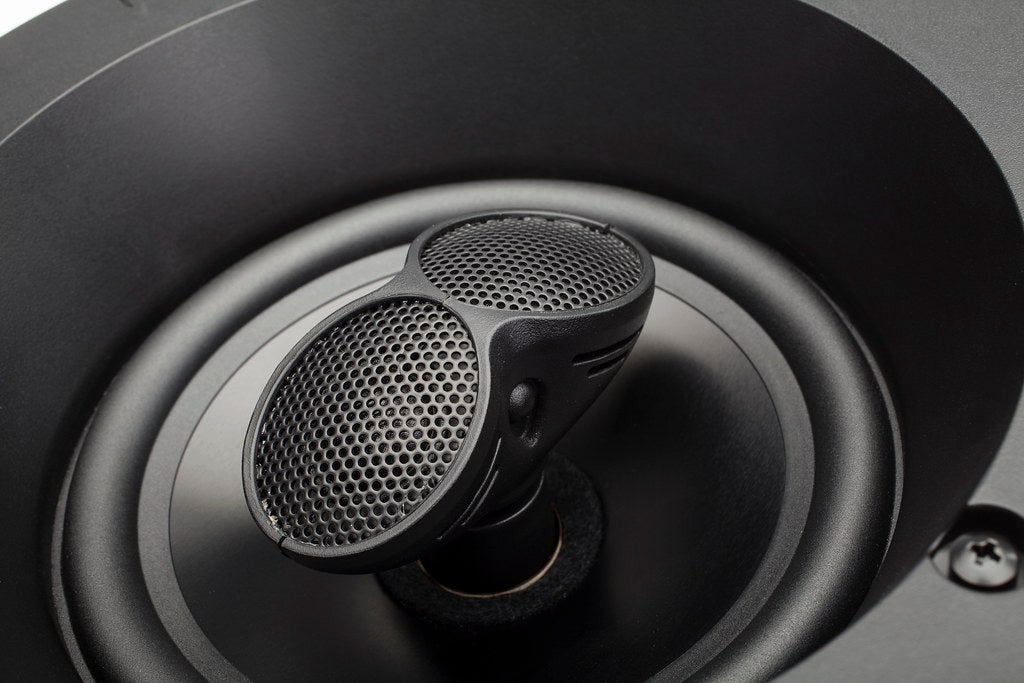

Aiming
Pivoting Tweeter Stem

Recommended Amplifier Power
20—200 watts per channel

Recommended Amplifier Power (Stereo)
20 watts × 20 watts ‒ 100 watts × 100 watts

Sensitivity
89 dB/2.83 volts/meter

Impedance
Mono: 4 Ohms. Stereo: 8 Ohms × 8 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.

Crossover Frequency
2600 Hz

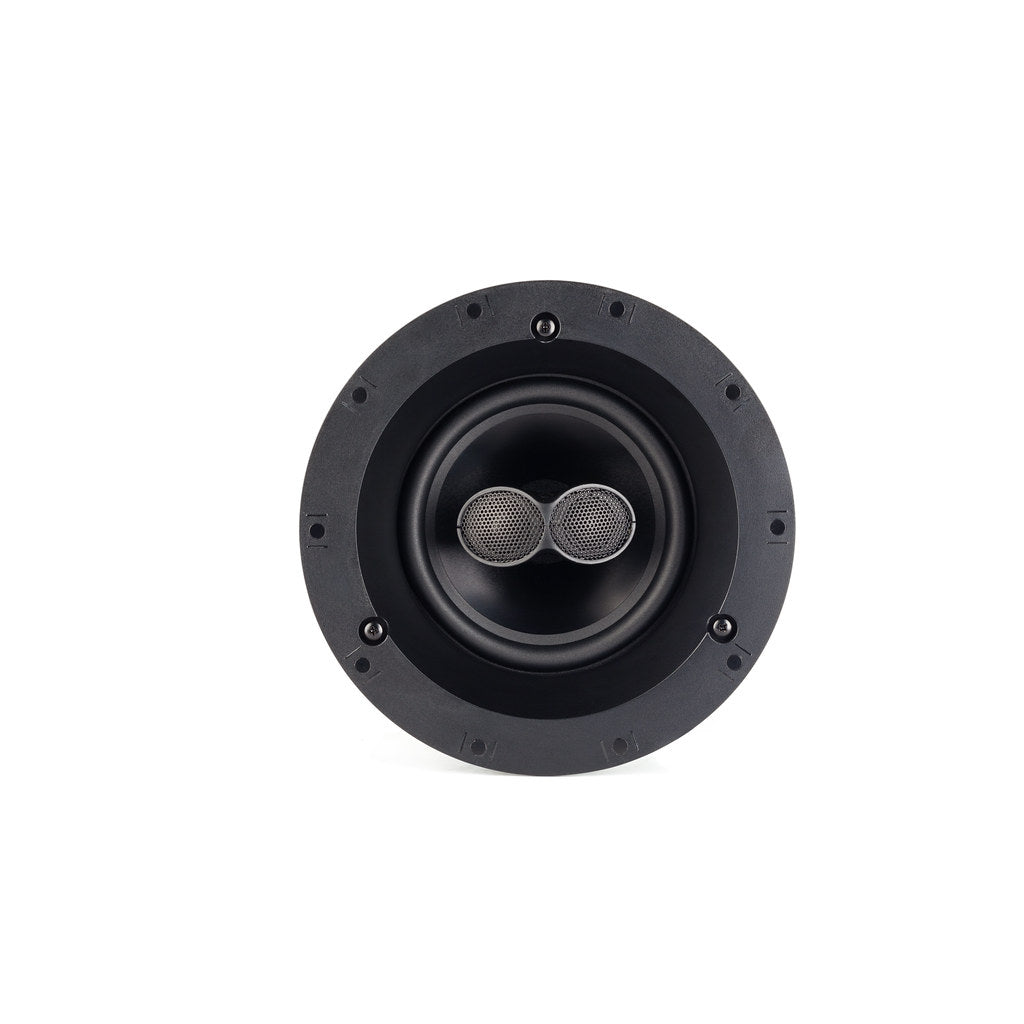

High Frequency Transducer
Two 0.75" (1.9 cm) neodymium soft-dome tweeters

Low Frequency Transducer
6.5" (16.5 cm) cast basket, high rigidity aluminum cones with extended throw drive assembly, thermal protection

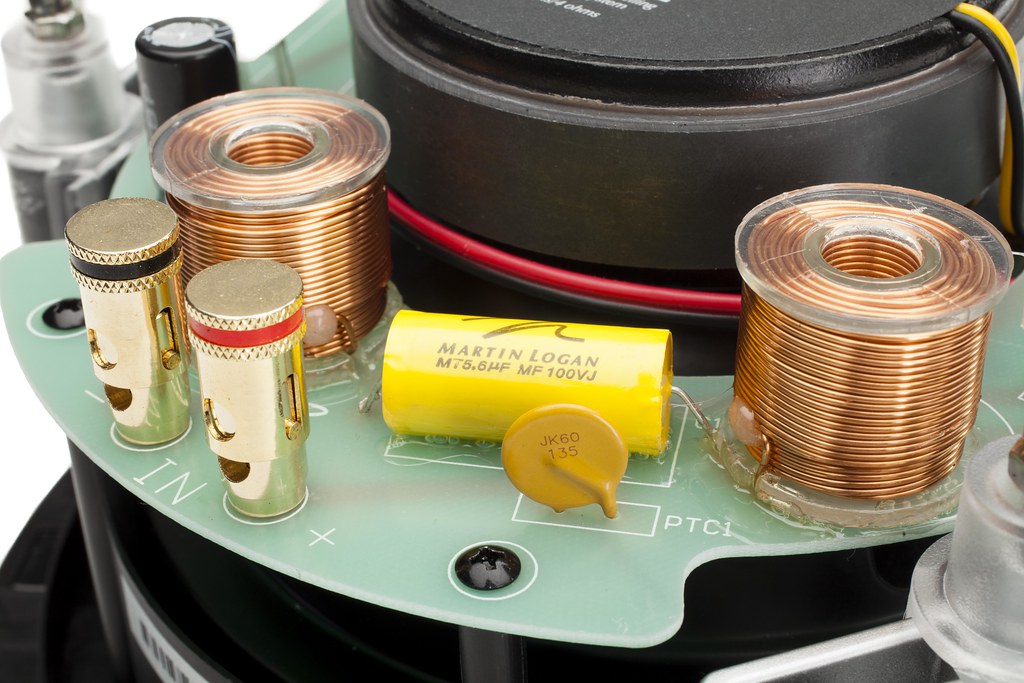

Components
Air core coils, polyester capacitors

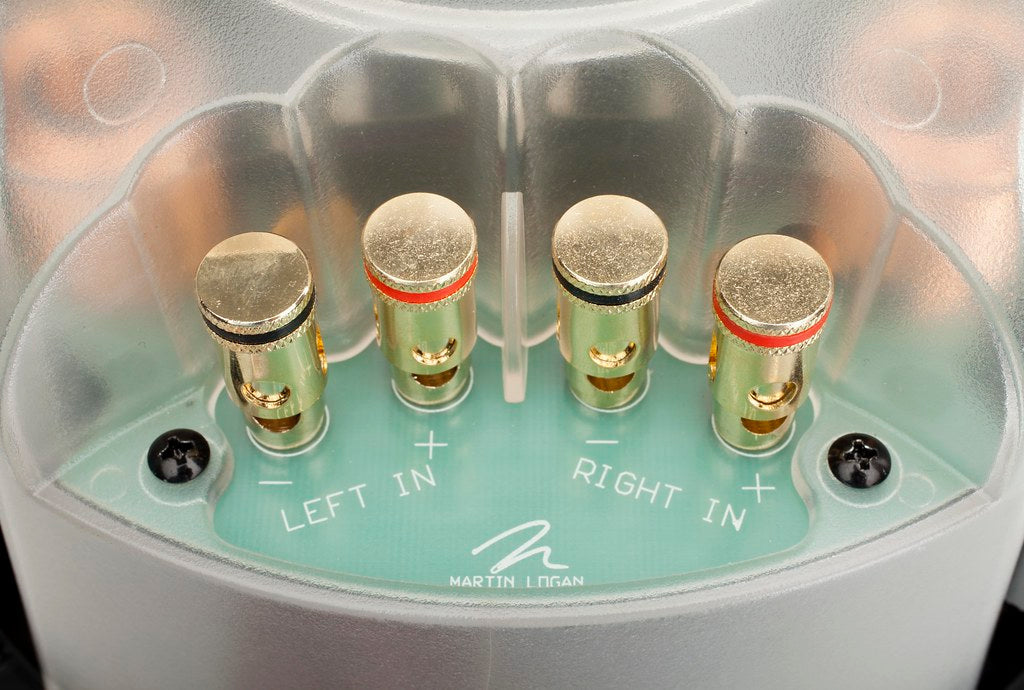

Inputs
Stereo binding posts (bridge for mono)

Weight
4.5 lbs. (2 kg)

Cut-Out Dimensions
8.35" dia.
(21.2 cm dia.)

Projection From Wall Surface
.2" (.45cm)

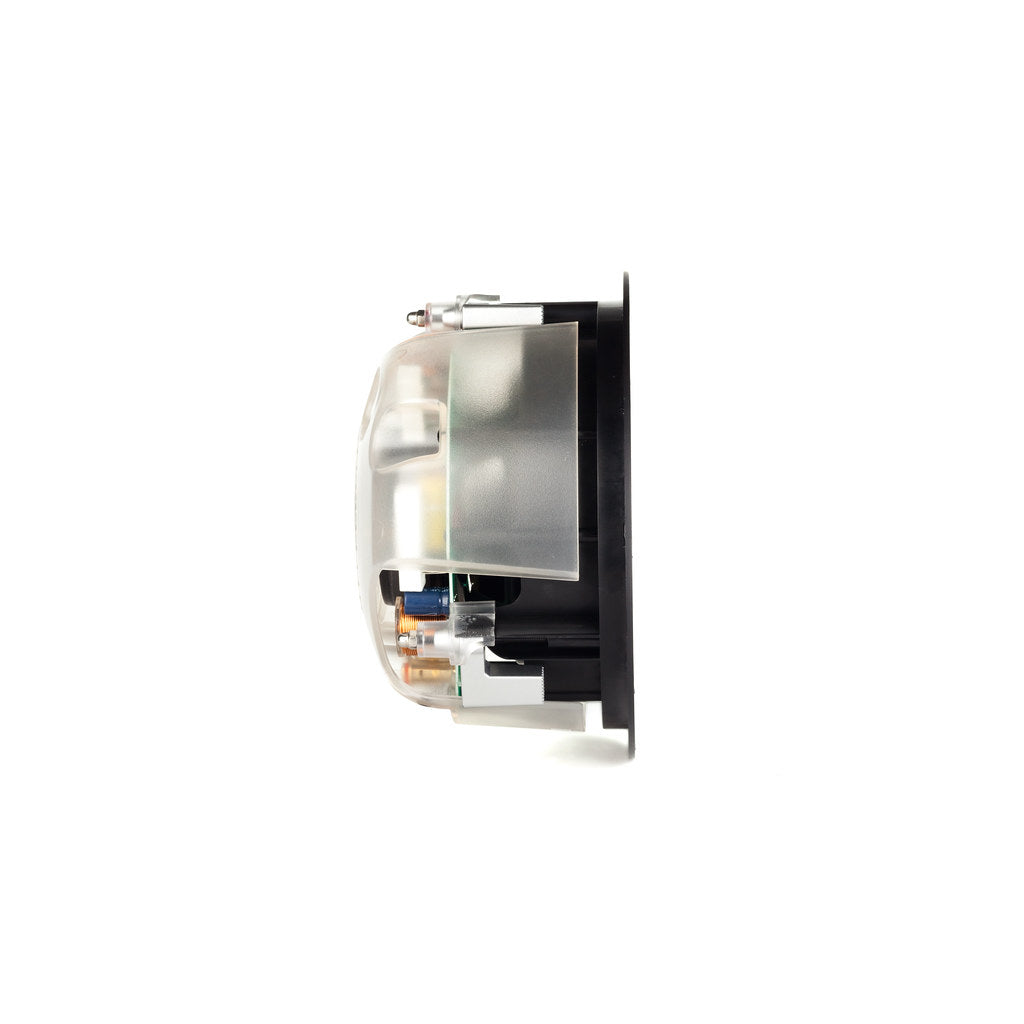

Depth Behind Wall Surface
4.9" (12.3 cm)

Weight & Dimensions

Cut-Out Dimensions
8.35" dia.
(21.2 cm dia.)

Weight
4.5 lbs. (2 kg)
