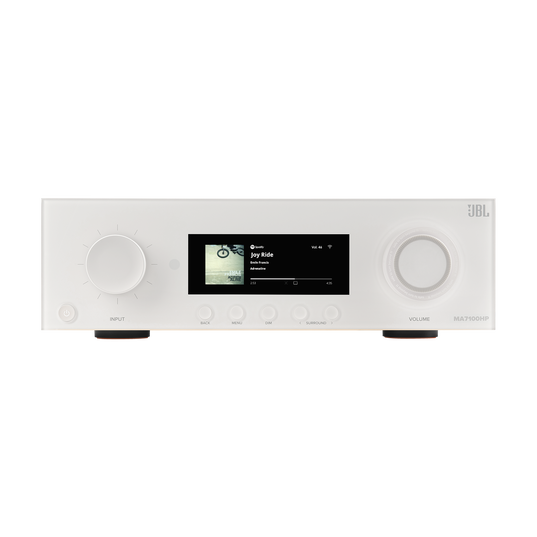

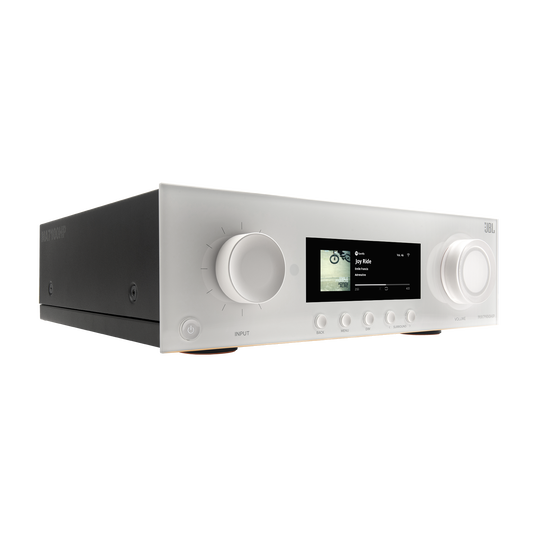

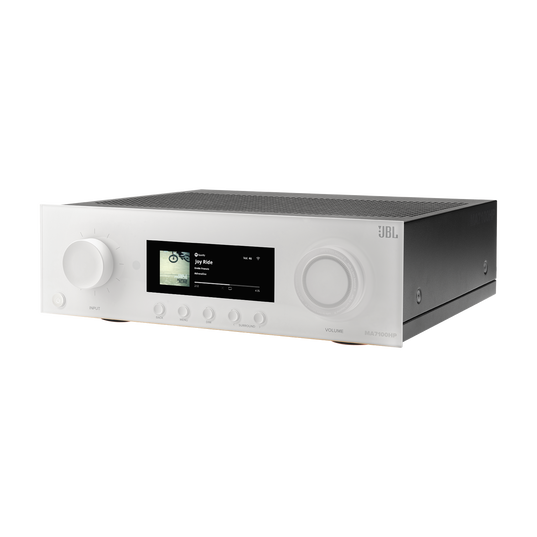

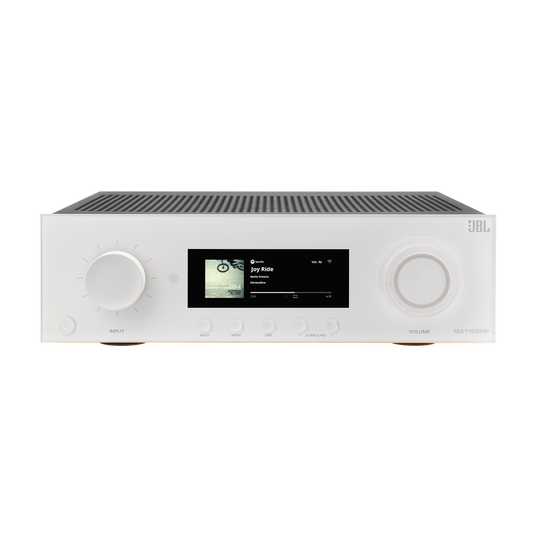

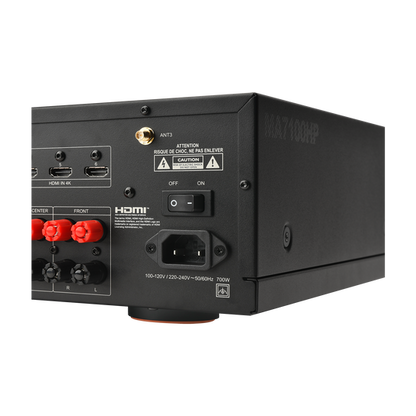

MA7100HP 7.2-channel 8K High Performance AV Receiver
$1,249.98 CAD
Regular price
$1,249.98 CAD
Sale price
$1,249.98 CAD
Regular price
$1,799.98 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
The JBL MA7100HP is a high-performance AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 7-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience. Seamlessly integrate your smart TV or projector with 6 HDMI inputs and 2 outputs, plus eARC. Designed with a passion for music and movies, the MA7100HP brings both to life with true high fidelity. The MA7100HP features seven channels of low-noise Class D amplification for real world power to all channels. In addition to the onboard Moving Magnet phono input for connecting a turntable, additional music content can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive. Taking performance to the next level, the MA7100HP comes “Dirac Live Ready” for automatic room correction, assuring audiophile-quality sonics and allows integrators and power-users to optimize the system to their personal room acoustics. Featuring a secondary HDMI video output and audio Zone, content can also be made available in a secondary location. In addition to physical controls, the MA7100HP allows for IP control for third party control system integration.
Features
Stunning audio and video performance
High-performance 7.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience
Intuitive setup with a minimalist modern design
Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 6 HDMI inputs and 2 outputs, plus eARC
High-performance immersive surround sound
Dolby Atmos and DTS:X decoding, supports up to 7.1 or 5.1.2 channel configurations
Bluetooth and network streaming
Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast, Roon Ready)
Powerful amplification
Seven channels of low noise Class D amplification for real world power to all channels.
EZ Set EQ
EZ Set EQ provides easy-to-use room equalization for optimized sound quality.
Ready for Dirac Live® room correction
Comes Dirac Live Ready, fully prepared to run Dirac Live – the worlds most advanced room correction software.
Specifications
General Specifications
HDMI eARC - Yes
HDMI Audio Return Channel - Yes
8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz) - 3
HDMI 2.1 enhanced gaming features - Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
HDR 10+, Dolby Vision - Yes , Yes
File format - MP3 / MPEG-4 AAC
Pure Analog - Yes
EZ Set EQ - Yes
Front channel bi-amp - Yes
Digital signal processing - up to 24-bit/192kHz

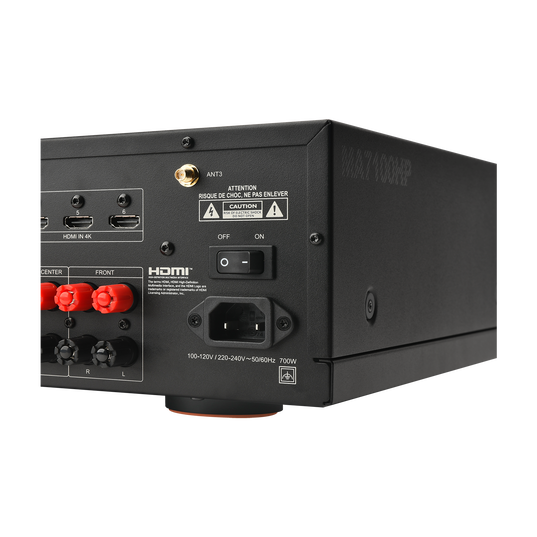

Mains voltage - 110 – 240V, 50–60Hz
Max. power consumption - 700W
Standby power consumption - <0.5W
Audio Specifications
Channels - 7.2
FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω) - 125W
Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) - 125 W RMS
Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) - 175 W RMS
Dimensions
Dimensions incl. feet and speaker terminals (H x W x D) - 5.3" x 17.0" x 15.6" (135.0mm x 432.0mm x 396.4mm)
Weight - 16.4lb (7.4kg)

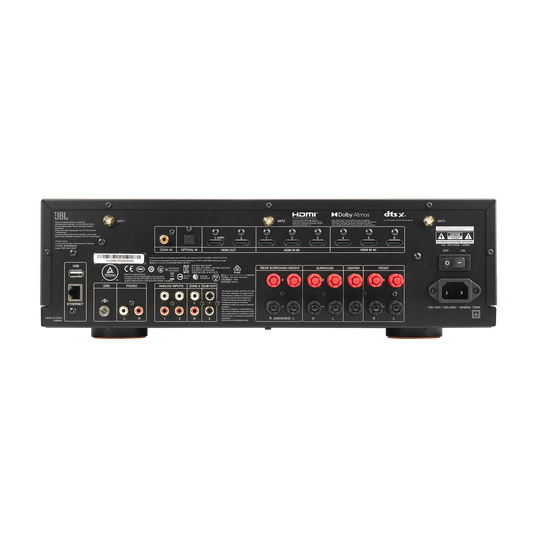

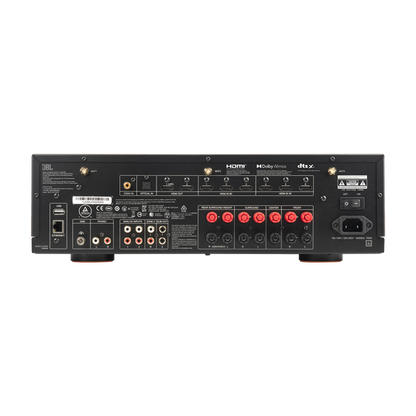

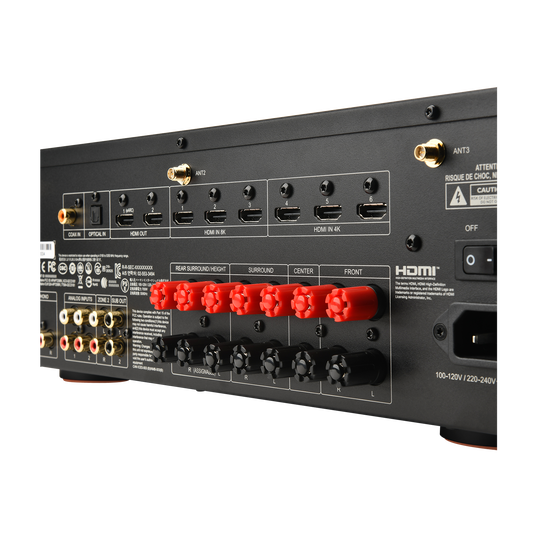

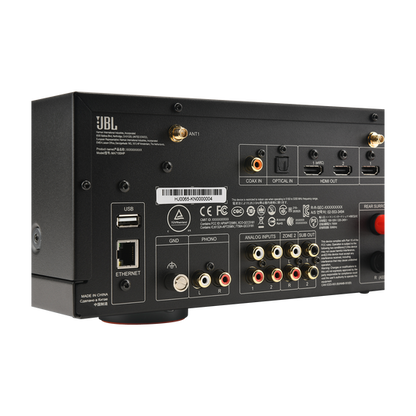

Control and Connection Specifications
HDMI Input/Output - 6/ 2
Wi-Fi - Yes (2.4/5GHz)
Bluetooth receiver - Yes (v5.3, Low Energy, APTX HD, APTX Adaptive)
Bluetooth transmit - Yes

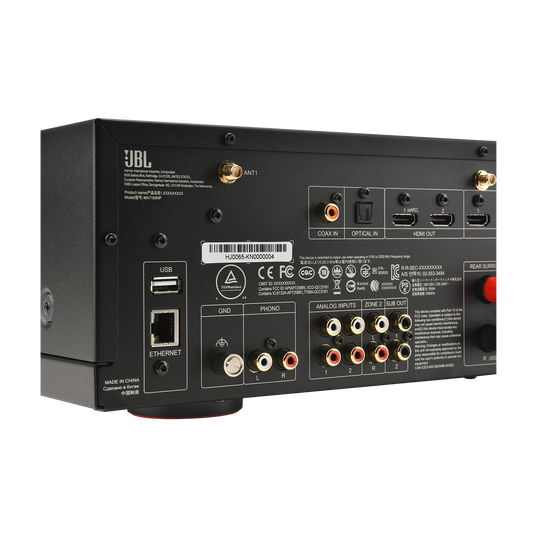

Digital Audio Input - 1 Coax, 1 Optical, 1 USB
Stereo analog input - 2 single-ended RCA (line level), 1 Moving Magnet Phono input + Ground
Pre-Out (single ended RCA) - Stereo Zone 2, Subwoofer 1, Subwoofer 2
Ethernet Port (RJ45) - Yes
What's in the box?

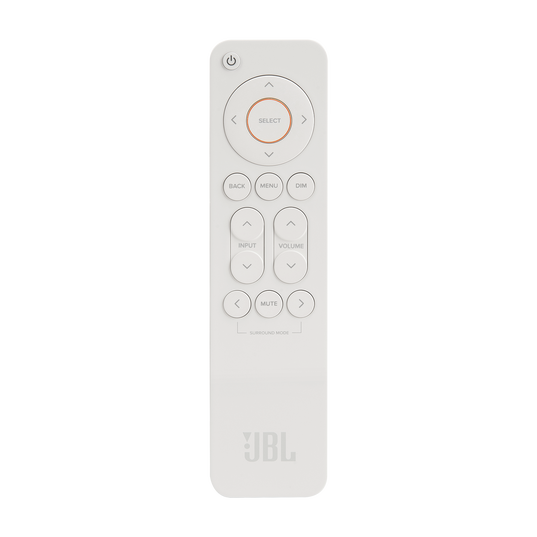

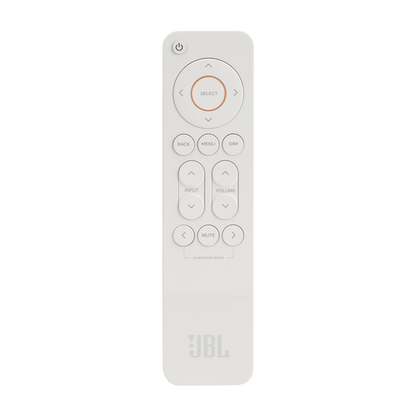

- 1x IR Remote
- 2x AAA batteries
- 1x Bluetooth antenna
- 2x Wi-Fi antenna
- 1x Power Cord
- 1x Quick-Start Guide
- 1x Safety Sheet
