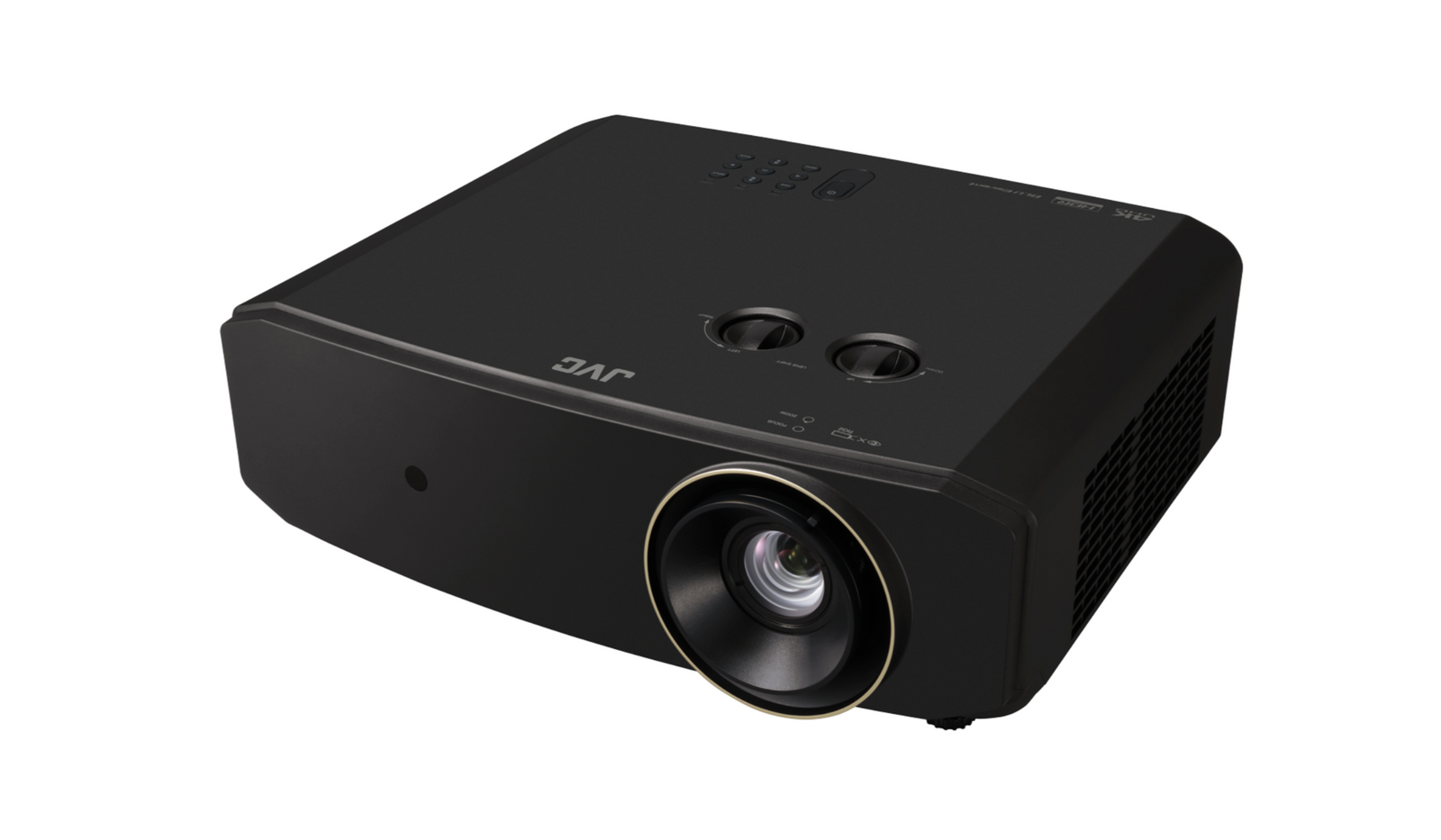

LX-NZ30 DLP 4K UHD Laser Front Projector

Experience stunning visuals with the LX-NZ30 DLP 4K UHD Laser Front Projector. Its powerful laser technology delivers vibrant colours and sharp details in every frame. With 4K UHD resolution, you'll enjoy a cinema-like experience from the comfort of your own home. Upgrade to the next level of home entertainment.

The LX-NZ30 is a high-performance 4K UHD/HDR home theater projector with laser light source technology BLU-Escent. Thanks to the BLU-Escent light source, it realizes brightness of 3,300 lumens so there is no need to pull the curtains every time. Plus, there is no need to care about the lamp life as it offers 20,000 hours of long life. The low latency in combination with the 1080p240Hz input takes gaming on this projector to another level.

Features & Specs

Power & Light Source

• Light Engine: BLU-Escent Laser Phosphor — Offers high luminance and maintenance-free operation
• Brightness: 3,300 ANSI Lumens — Ideal for rooms with some ambient light
• Light Source Life: Approx. 20,000 hours (Normal mode)
• Power Consumption: 360W (In use) / 0.5W (Standby)
• Light Control: Dynamic Laser Dimming for enhanced black level performance

Image & Processing Features

• Imaging Device: 0.47-inch 4K UHD DMD (DLP Technology)
• Resolution: 3,840 x 2,160 pixels (via XPR pixel-shifting technology)
• Contrast Ratio: $\infty:1$ (Dynamic)
• HDR Performance: HDR10 & HLG compatibility with JVC’s proprietary Auto Tone Mapping
• Gaming Features: Ultra-low latency (6.25ms at 1080p/240Hz) for competitive-grade gaming response
• Color Space: 100% Rec. 709 coverage (BT.2020 compatible)

Optical & Lens Control

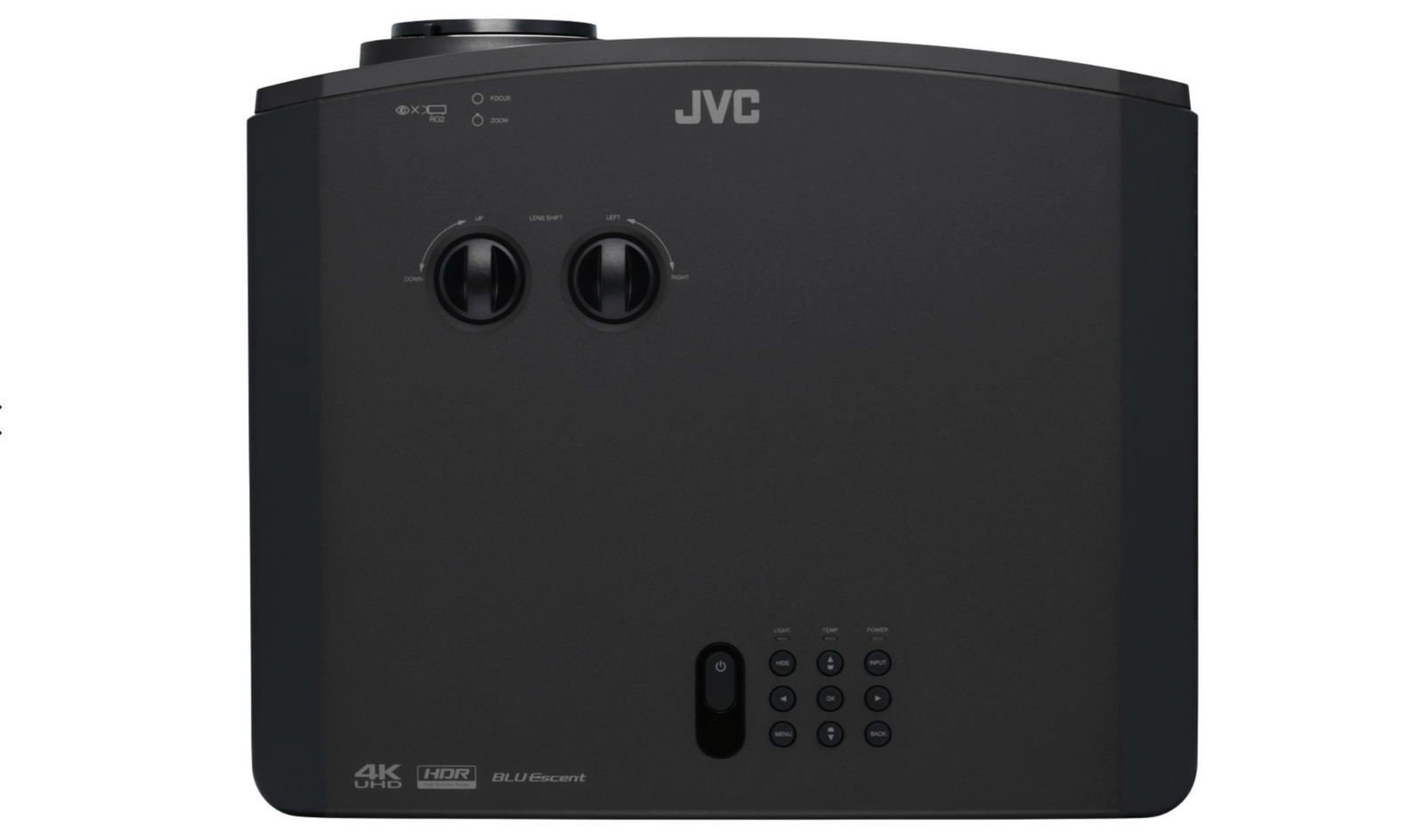

• Lens Type: 1.6x Manual Zoom & Focus lens
• Lens Shift: Manual $\pm 60\%$ Vertical and $\pm 23\%$ Horizontal
• Throw Ratio: 1.36:1 to 2.18:1
• Projection Size: 60" to 200" (Diagonal)
• Geometric Correction: 3D Keystone (Vertical, Horizontal, and Tilt), Corner Adjustment, and Warping for curved screens

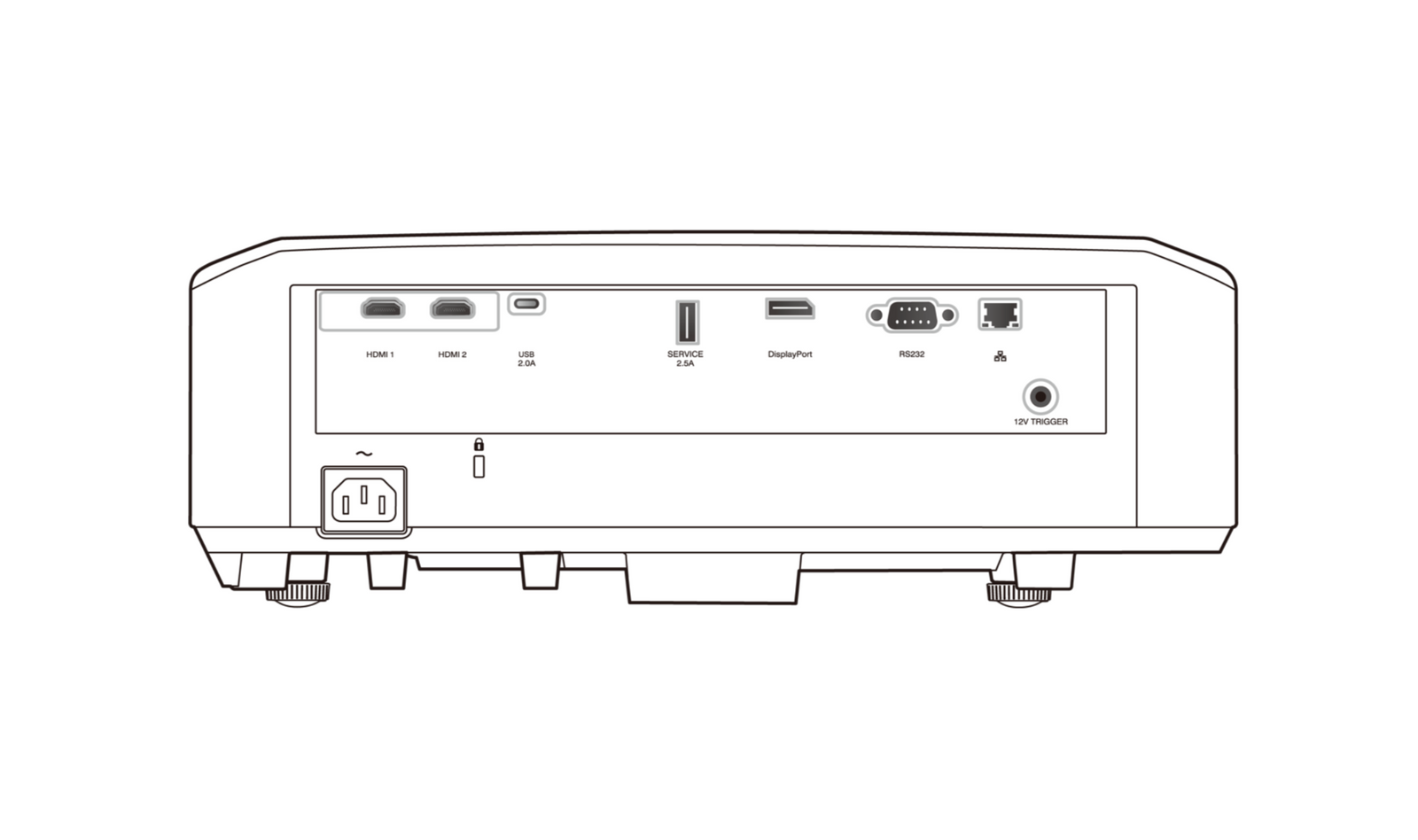

Inputs & Outputs

• HDMI Inputs: 2 x HDMI (HDCP 2.3, 18Gbps)
• Digital Inputs: 1 x DisplayPort 1.2a (Supports up to 2K/240Hz), 1 x USB Type-C (DP Alt Mode)
• Control Ports: 1 x LAN (RJ45), 1 x RS-232C (D-sub 9-pin)
• Trigger/Power: 1 x 12V Trigger (Mini-jack), 1 x USB Type-A (1.5A Power Supply)

Physical Dimensions & Weight

• Dimensions (W x H x D): 15.87" x 5.75" x 13.5" (405 x 145.8 x 341 mm)
• Weight: 13.0 lbs (5.9 kg)
• Operating Noise: 29 dB (Eco Mode) / 34 dB (Normal)
• Mounting: Tabletop or Ceiling-mount compatible

Design & Build

• Chassis: Compact lifestyle-friendly design with symmetrical styling
• Cooling: High-efficiency airflow system to support the high-output 3,300-lumen laser
• Installation Flexibility: Wide lens shift and large zoom allow for easy placement without digital degradation

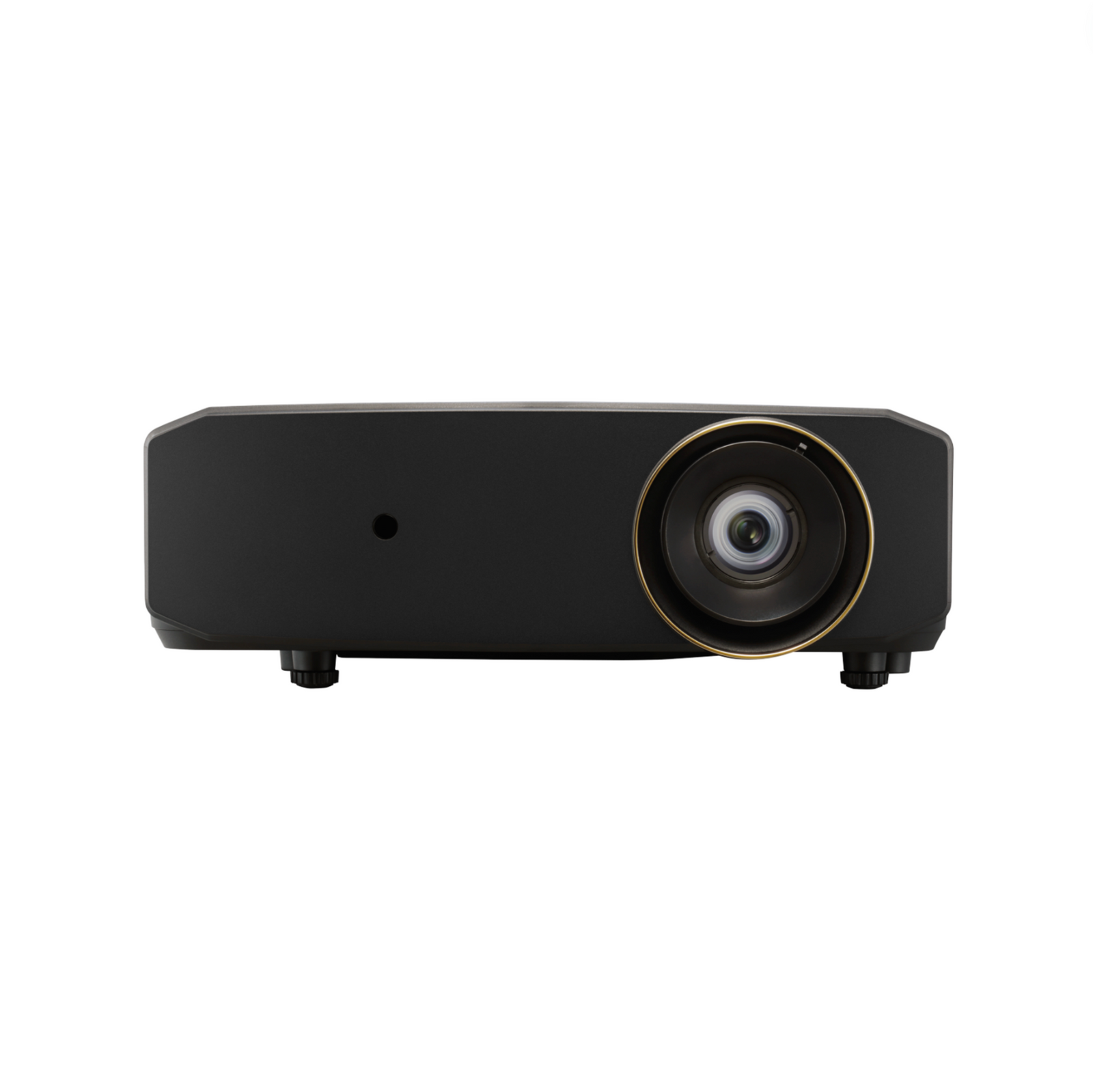

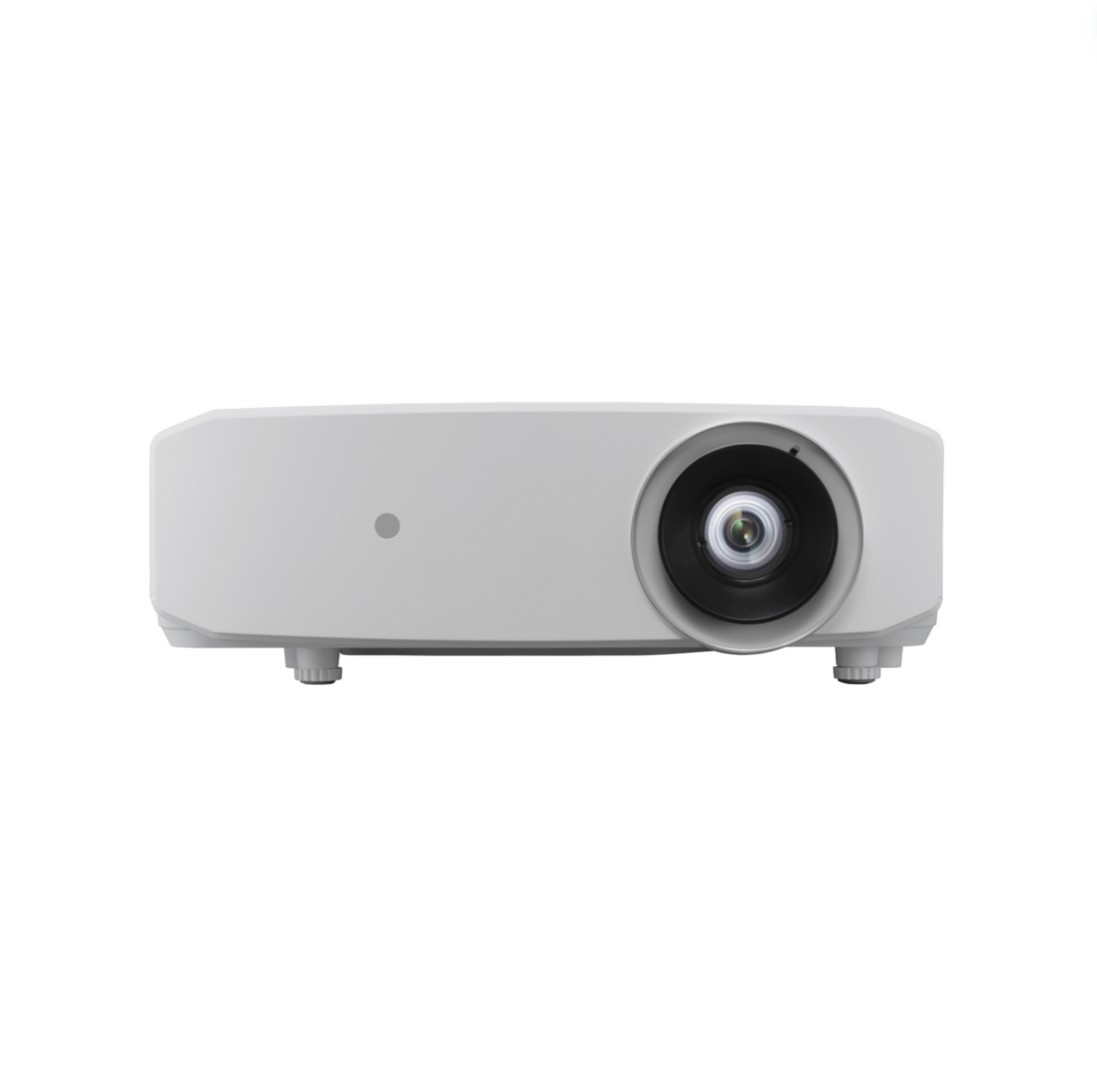

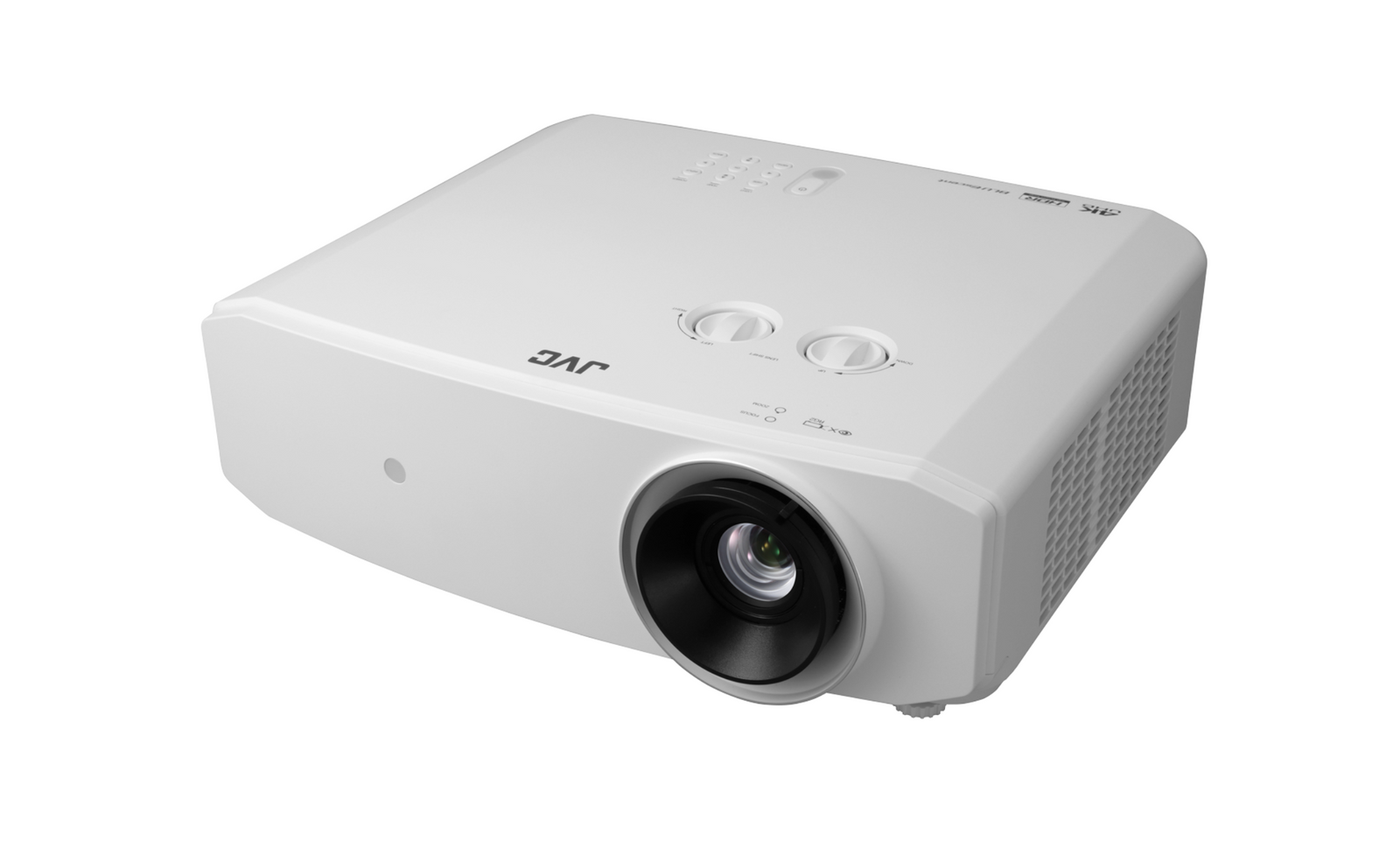

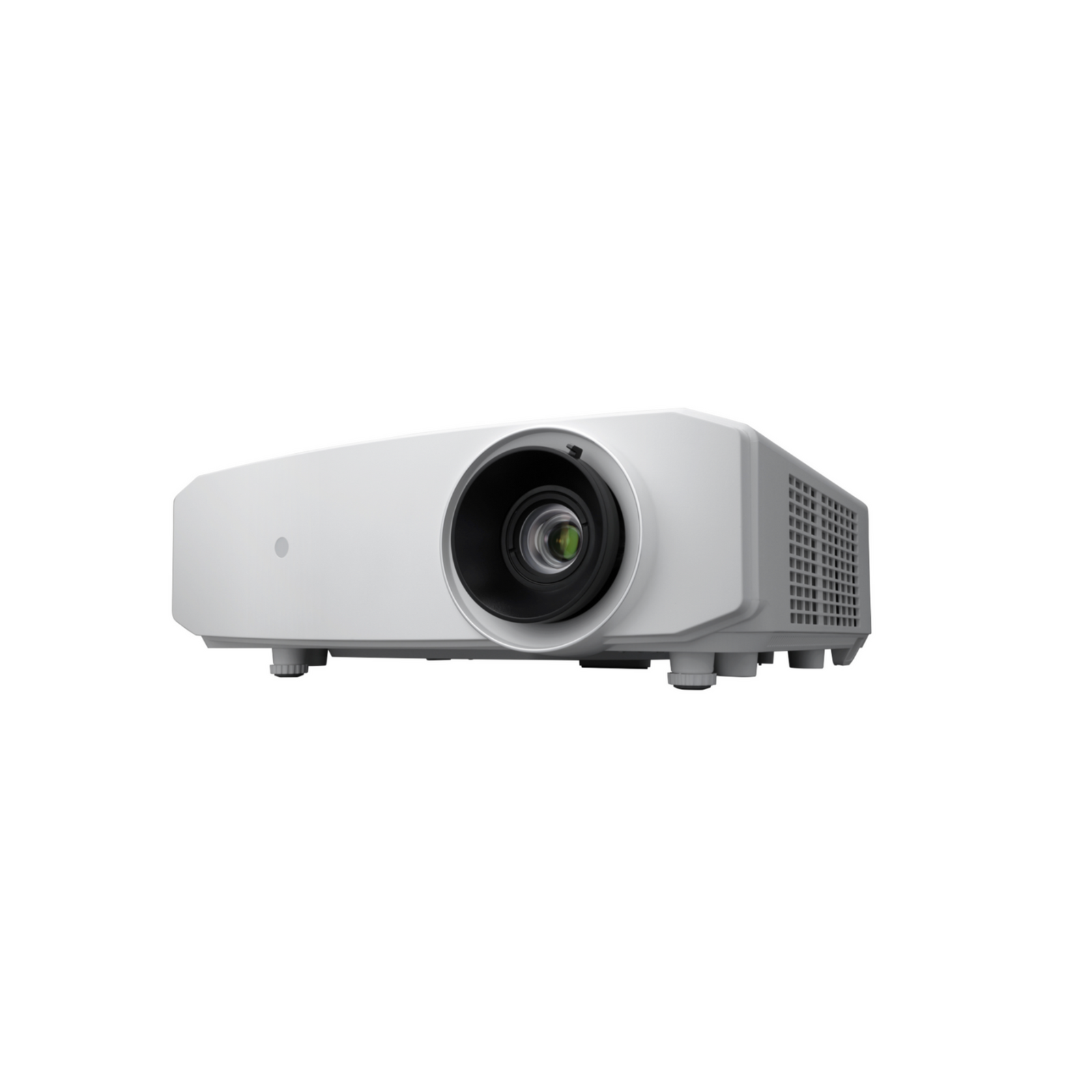

• Finishes: Available in Black and White
