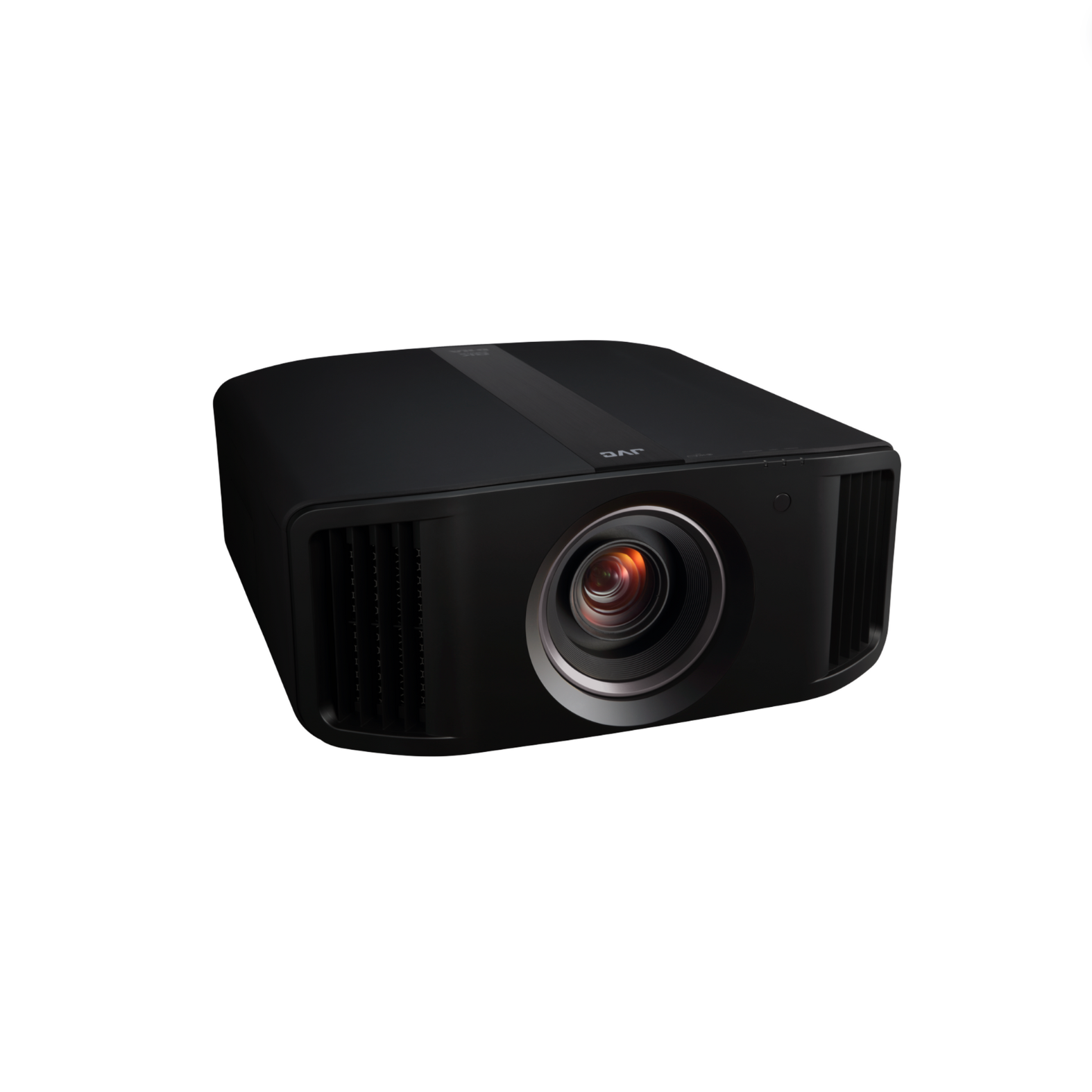

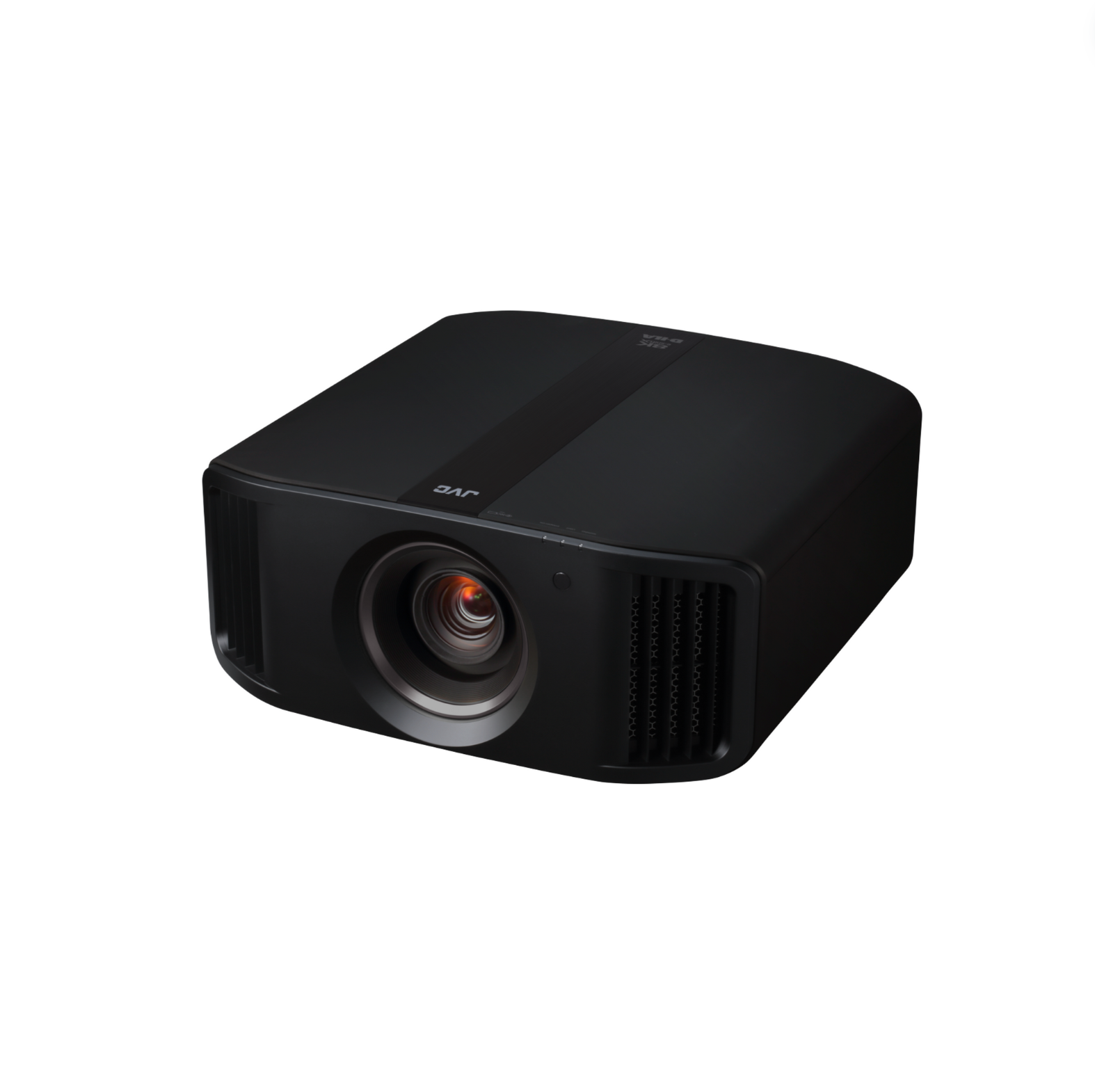

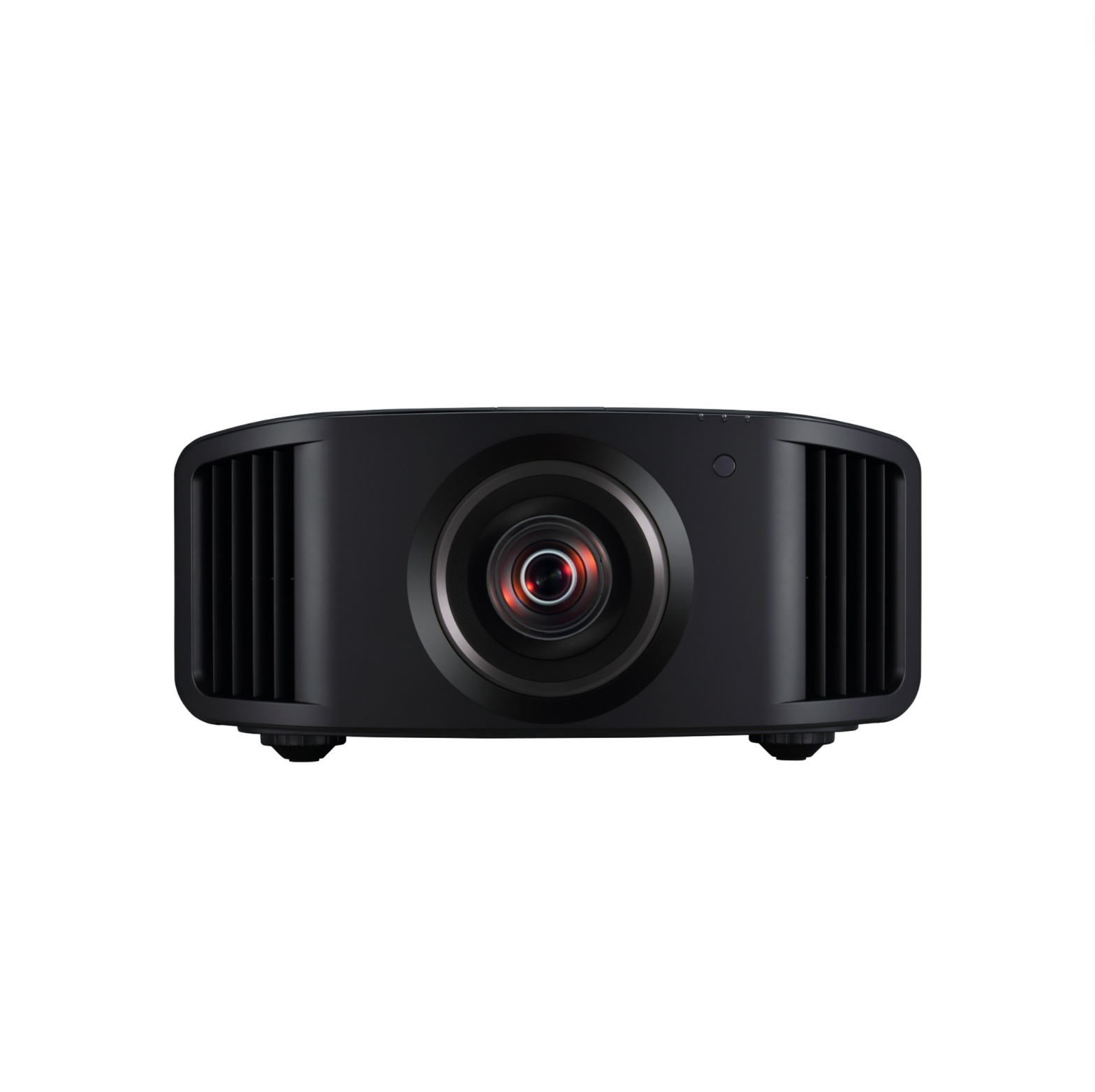

DLA-RS3200 4K Home Theatre Projector

JVC's DLA-RS3200 features the new Gen2 8K/e-shiftX with 8K Scaling Engine to display pixel-perfect 8,192 x 4,320 images. It also boasts the BLU-Escent Laser light source combined with Gen3 native 4K D-ILA devices to deliver 2,700-lumen brightness, 100,000:1 native contrast, and infinite dynamic contrast for impressive projection even on large screens. Turn on the Gen2 Frame Adapt HDR with Theater Optimizer, Deeper Blacks, DML, and more to get the most out of HDR content. For stunning home theater projection, give the DLA-RS3200 a closer look.

Gen3, Native 4K D-ILA Device

D-ILA device is the heart of projectors that plays an impor tant role in projecting beautiful images. Device improvement continues to date – the third generation 0.69-inch native 4K D-ILA device improved the alignment control of liquid crystals and enhanced the flatness of image pixels to offer 1.5-times* the native contrast ratio compared to the Gen2 device. Additionally, improvements in the device manufacturing process have resulted in improved screen uniformity and enhanced image quality. *:DLA-NZ800 and DLA-RS3200 are 1.25-times.

The new D-ILA projector boasts the industry’s highest native contrast with the Gen3 0.69-inch 4K D-ILA device and wire-grid optical engine, however in combination with the dynamic laser light control, which analyzes the incoming video signal to automatically control the amount of outgoing laser light, a dynamic contrast level of ∞:1 (infinity to 1) can be achieved in scenes with pitch blackness by completely shutting off the light source. As a result, images brimming with reality that are closer to human perception can be produced. Likewise, the new algorithm enables laser control with greater precision to meet the user’s preferences.

BLU-Escent Laser can finely adjust the luminance according to the environment and preference using the Light Source Control by slider adjustment. There are a total of 101 (0 – 100) luminance control steps that can be used to make fine adjustments to match the target luminance in the environment and on the screen.

This D-ILA models support a variety of inputs including full 48Gbps 8K60p. By adopting LSIs developed with the latest technology, it is now possible to process four times the amount of information from input to D-ILA device instantly and correctly display 8K signals. As a result, users can enjoy stable high-quality 8K images at all times. Also, using 4K120p input with the Low Latency Mode further improves response to the player’s rapid operations, making it effective for displaying high frame-rate gaming content on large screens.

JVC’s proprietary 8K/e-shiftX, which is a combination of “e-shift technology” – a high-resolution display technology that doubles the resolution by shifting a pixel by 0.5 pixels in four directions up, down, left, and right – and “0.69-inch native 4K D-ILA devices” has made significant progress as the second generation 8K/e-shiftX. The latest version features JVC's newest 8K scaling engine that drastically improves the projector’s sharpness and detail across a wide range of content, including 8K (8192 x 4320 pixels) sources.

The DLA-RS3200 is equipped with an 17-element, 15-group all-glass lens featuring a full aluminum lens barrel. To project high resolution 8K images to every corner of the screen.

When it comes to reproducing the rich video information of HDR content, including the extended brightness range, BT.2020 wide color gamut and 10-bit gradation, rely on the new D-ILA projectors. Both models support all HDR formats including HDR10 for Blu-ray and streaming, HLG for broadcasting, and the HDR10+ with dynamic metadata compatibility. The projectors’ improvements for higher brightness and contrast have helped to achieve a wider dynamic range, allowing users to enjoy an immersive experience with HDR images full of reality.

The Frame Adapt HDR function, which uses a proprietary algorithm to instantaneously analyze the maximum brightness of any HDR10 content per scene or per frame and perform real-time tone mapping to optimal dynamic range for video projection, has evolved into the second generation (Gen2). The algorithm for tone mapping has been fully reexamined to achieve HDR images with higher definition. Furthermore, the proprietary algorithm for tone curve selection has also been improved to reproduce HDR images that are brighter, more colorful and have a wider dynamic range.

Features & Specifications

Power & Light Source

• Light Engine: BLU-Escent Laser Diode — Optimized for high-efficiency peak brightness and 20,000-hour longevity
• Brightness: 2,700 ANSI Lumens
• Light Source Life: Approx. 20,000 hours (Normal mode)
• Power Consumption: 440W (In use) / 0.3W (Eco-Standby)
• Laser Control: 101-step granular laser light control with high-speed dynamic dimming

Image & Processing Features

• Imaging Device: Gen3 0.69-inch Native 4K D-ILA Devices (x3)
• Display Resolution: 8,192 x 4,320 pixels (via Gen2 8K/e-shiftX with 4-way multi-axis shift)
• Contrast Ratio: 100,000:1 (Native) / $\infty:1$ (Dynamic)
• Color Performance: Cinema Filter ensures over 100% DCI-P3 and BT.709 coverage
• HDR Processing: Gen2 Frame Adapt HDR with Theater Optimizer, Deep Black Tone Control, and DML (Display Mastering Luminance)
• Gaming Features: 4K/120p input support with Low Latency Mode for high-frame-rate gaming

Optical & Lens Control

• Lens Assembly: 65 mm diameter, 17-element, 15-group All-Glass lens with full aluminum barrel
• Zoom: 2.0x Motorized Zoom & Focus
• Lens Shift: Motorized ±80% Vertical and ±34% Horizontal (16:9 aspect ratio)
• Lens Memory: 10 customizable installation presets for motorized lens position recall
• Throw Ratio: 1.43:1 to 2.92:1

Inputs & Outputs

• HDMI Inputs: 2 x HDMI (48Gbps, HDCP 2.3, 8K/60p and 4K/120p support)
• Control Ports: 1 x LAN (RJ45), 1 x RS-232C (D-sub 9-pin)
• Service Port: 1 x USB Type-A (for firmware updates and settings backup)
• 3D Support: 1 x 3D Synchro (Mini-Din 3-pin) for optional PK-EM2 emitter
• Trigger: 1 x 12V Trigger (Mini-jack)

Physical Dimensions & Weight

• Dimensions (W x H x D): 19.66" x 9.21" x 19.88" (500 x 234 x 505 mm)
• Weight: 50.9 lbs (23.1 kg)
• Operating Noise: 24 dB (in Low/Normal mode)
• Exhaust Design: Optimized front-to-rear airflow for high-wattage laser cooling

Design & Build

• Chassis: High-rigidity "Reference Series" chassis with signature Gold Lens Ring
• Component Selection: Hand-selected internal components for superior unit-to-unit consistency
• Calibration: ISFccc Certified with JVC Auto Calibration support (requires external sensor)
• Video Processing: MPC (Multiple Pixel Control) for enhanced sharpness and detail across 8K sources
