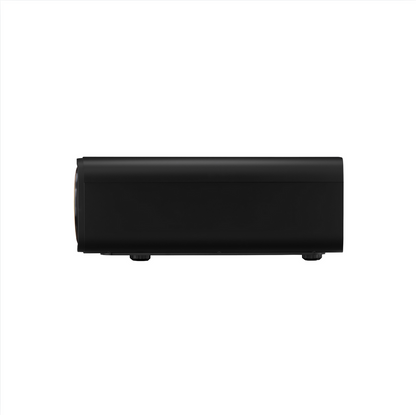

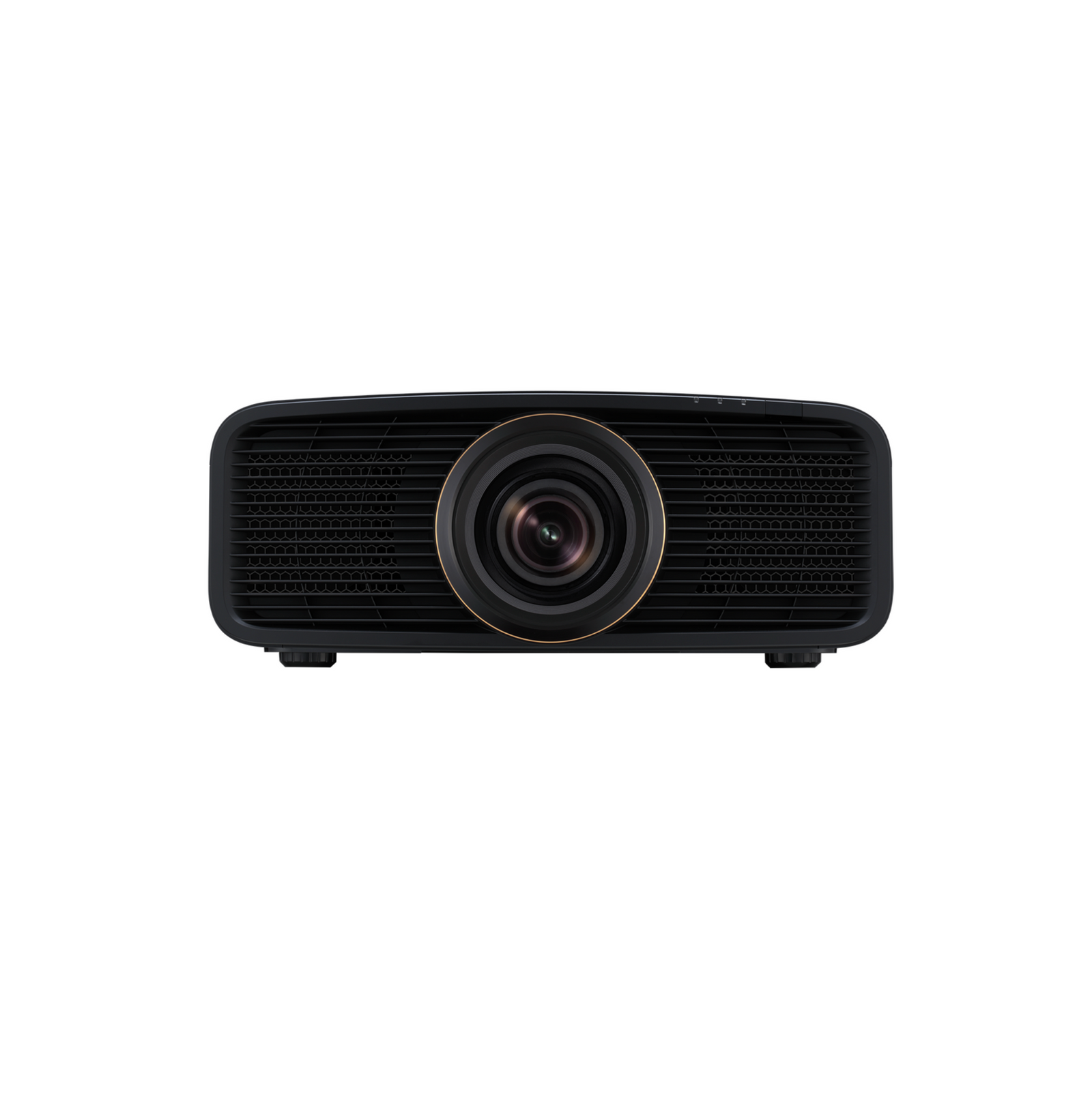

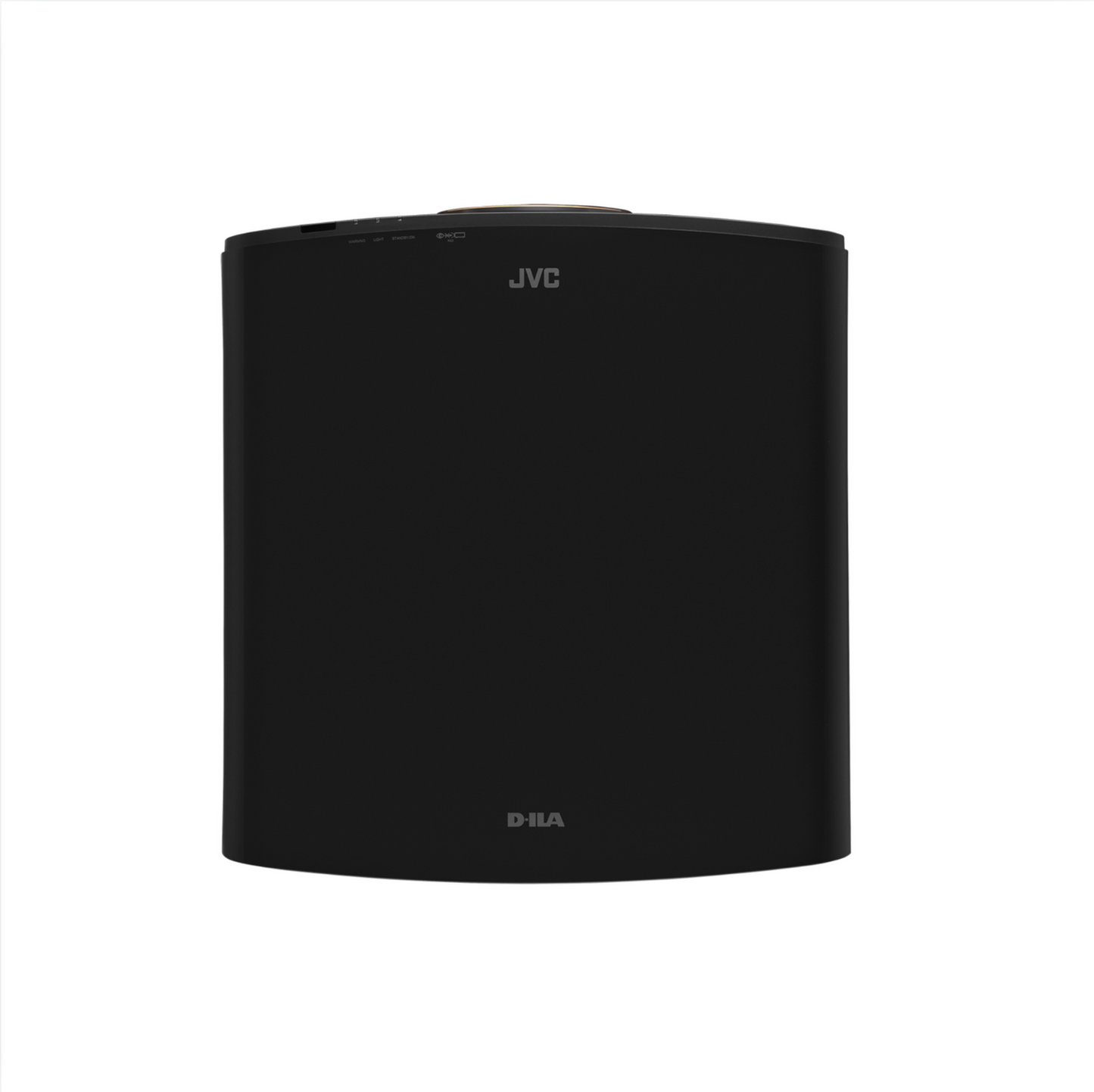

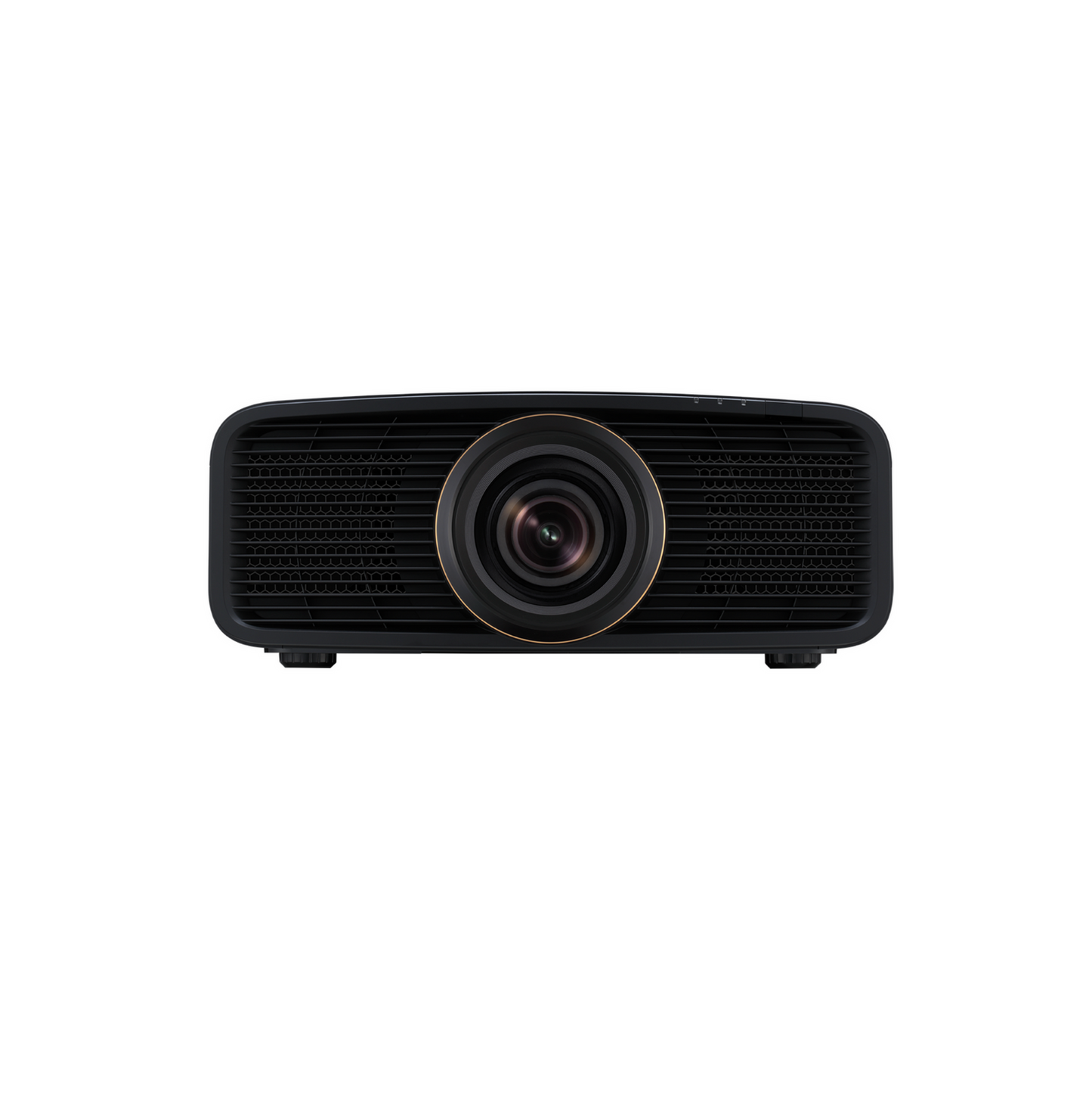

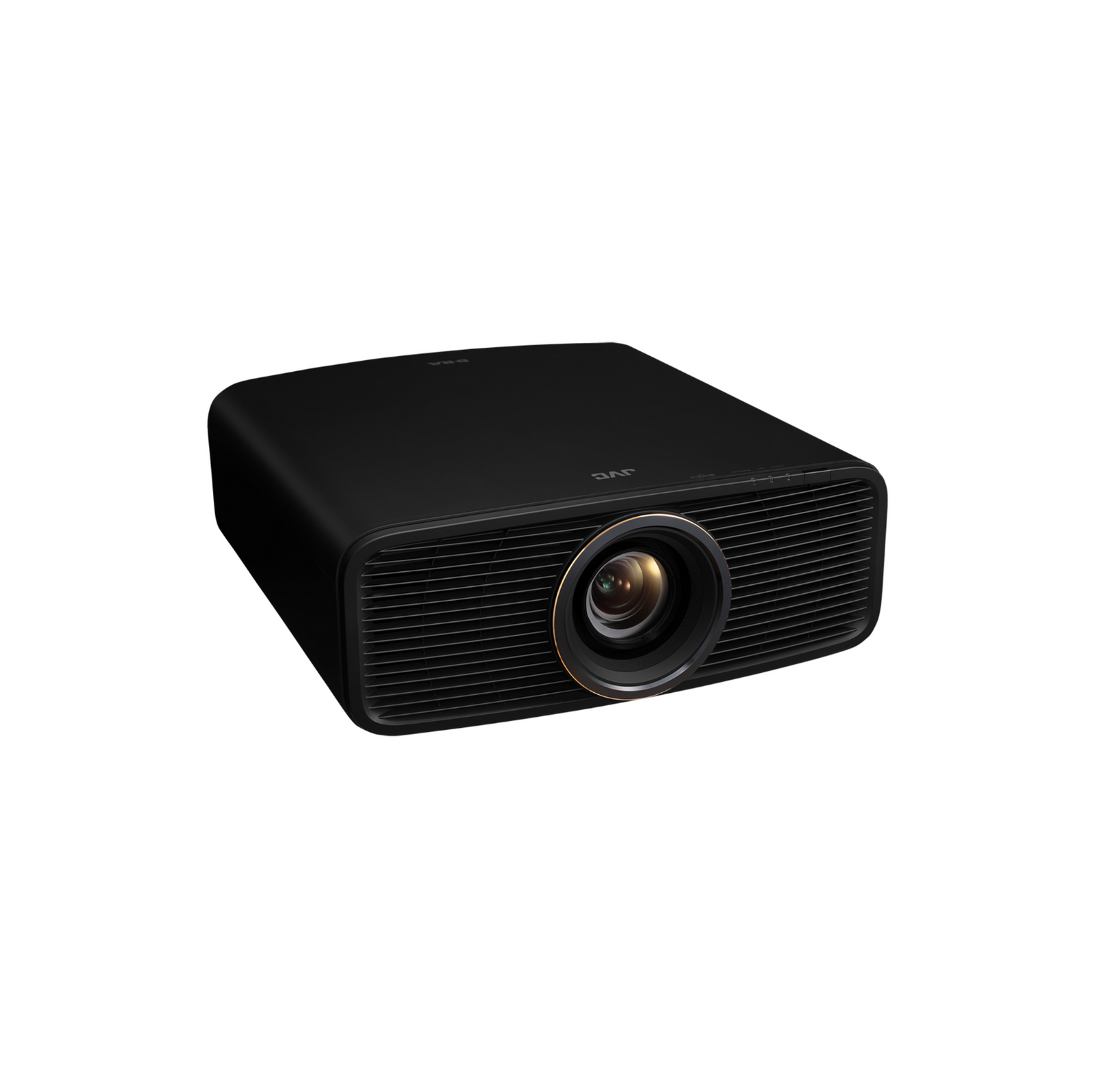

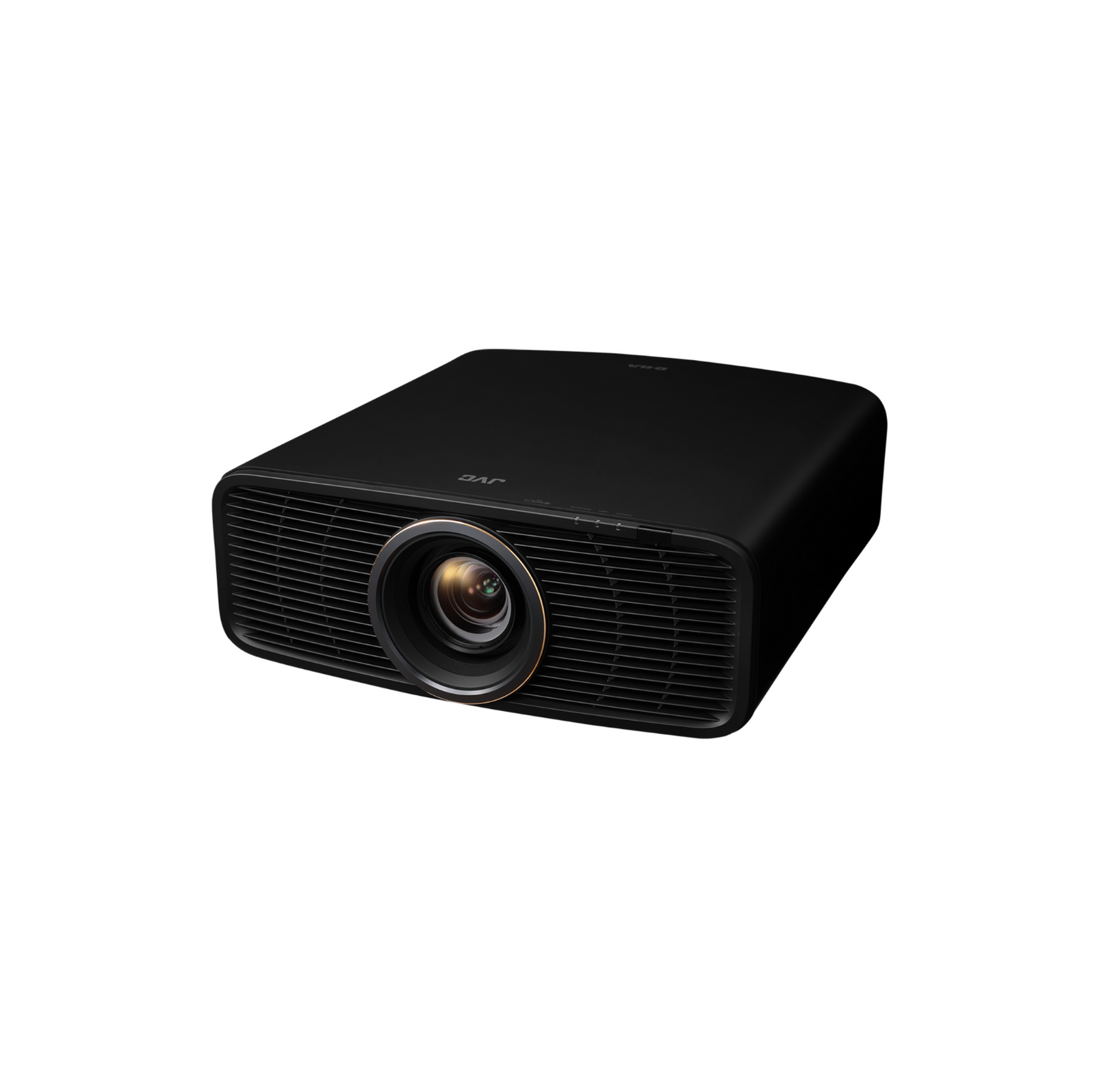

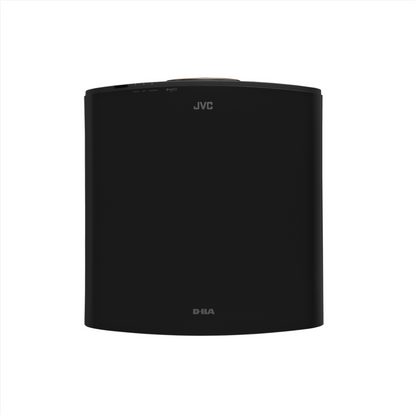

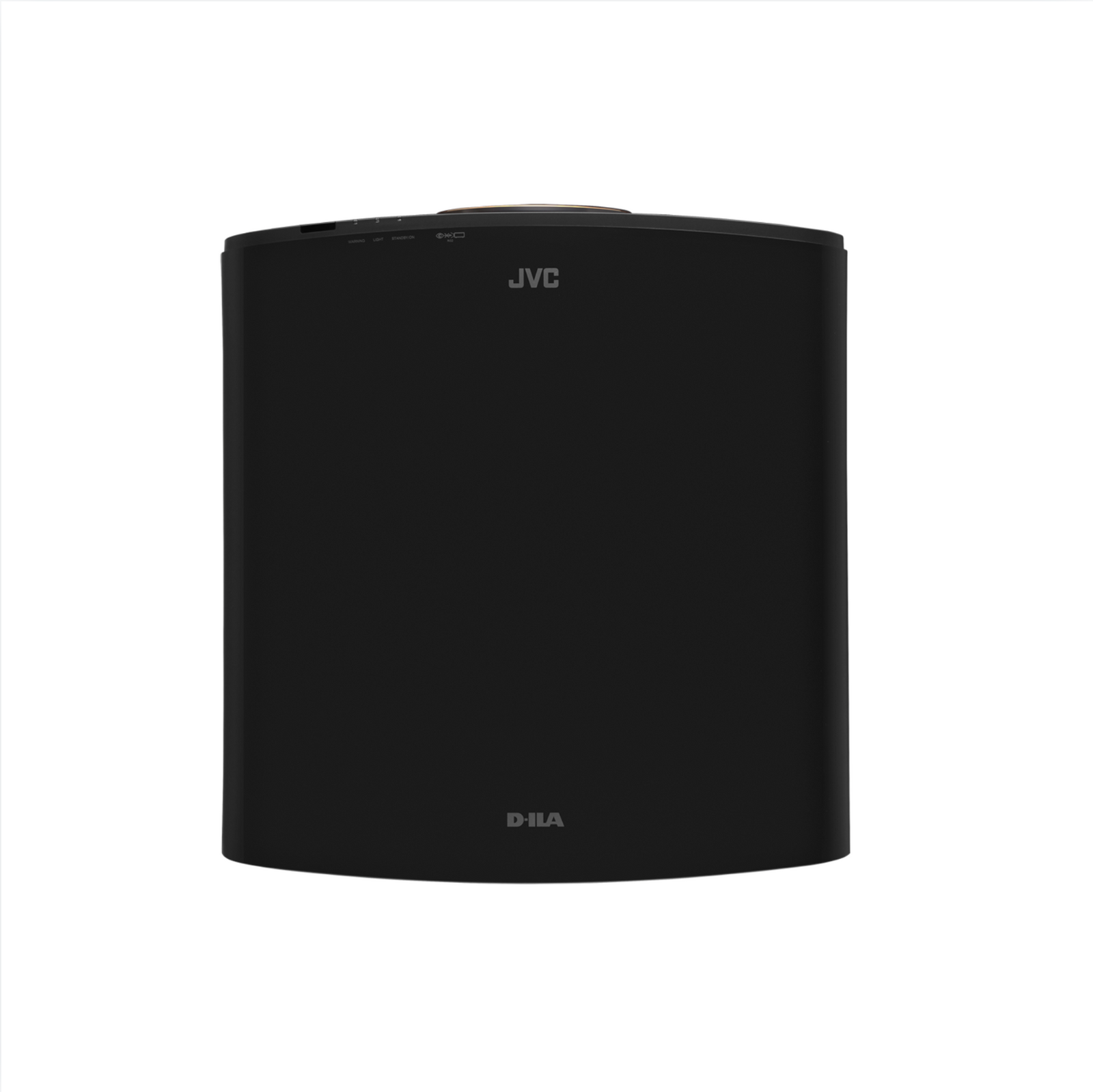

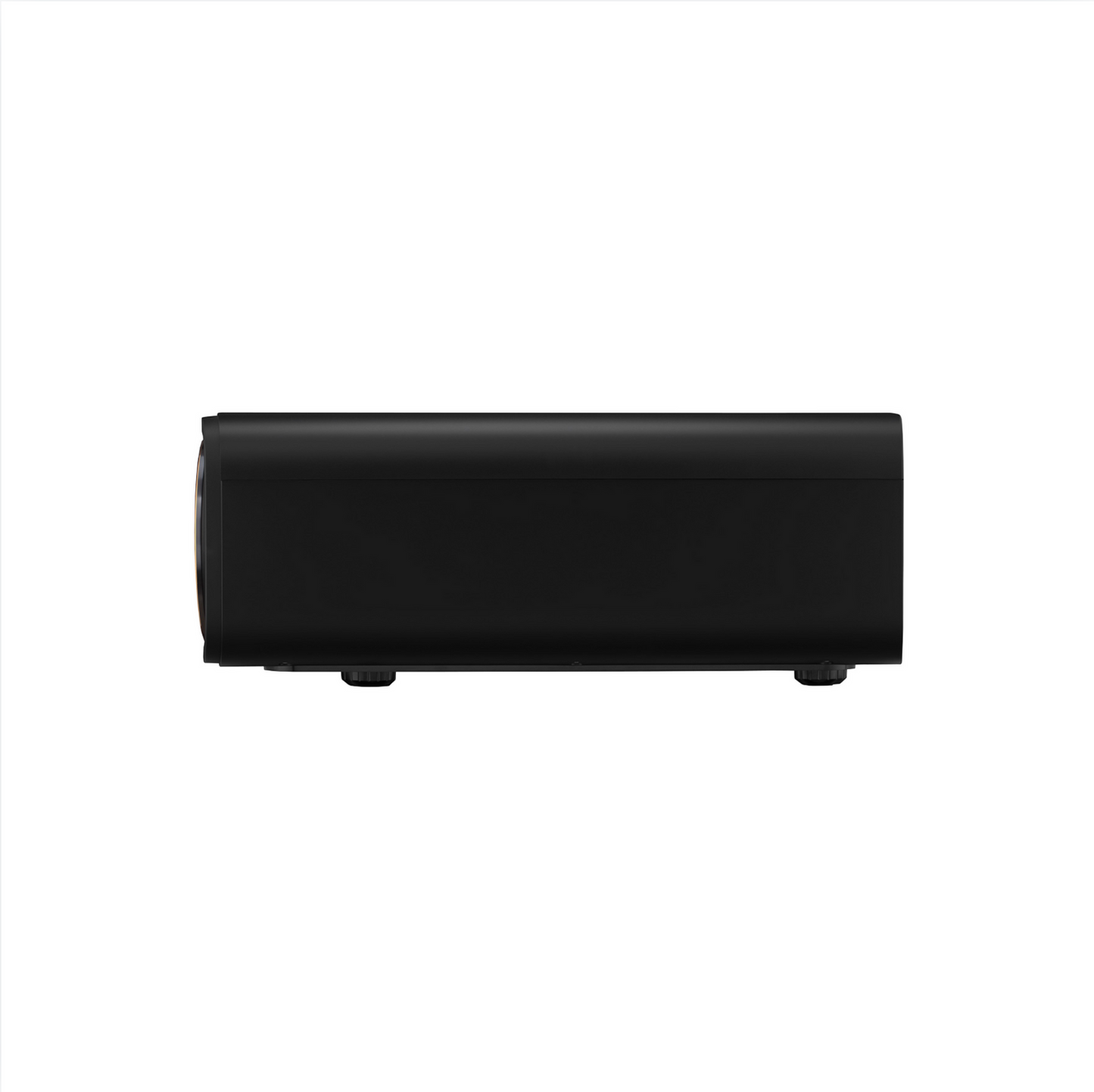

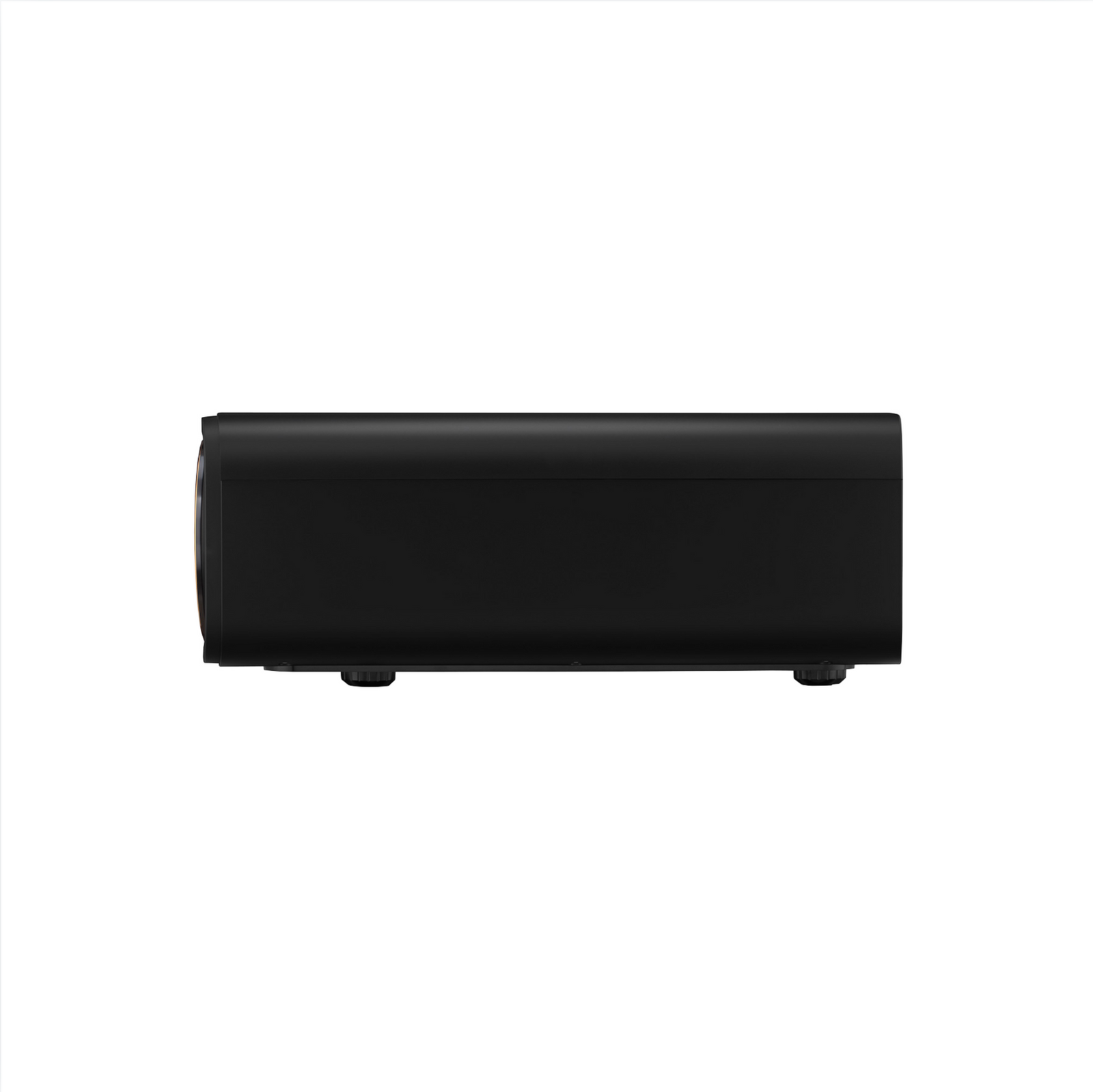

DLA-RS1200 Native 4K D-ILA Front Projector

The DLA-RS1200 is the worlds smallest 4K D-ILA projector available today*. The projector has been completely redesigned and includes a new casing, optical unit, lens system and circuit boards. Using JVC's proprietary BLU-Escent Laser light source with 2,000 lumens and Native 4K D-ILA devices to display 4,096 x 2,160 pixel images and a 40,000:1 Native contrast ratio. This projector features Gen2 Frame Adapt HDR to get the most out of HDR content, and vivid mode to display SDR content such as animations to satisfy a variety of users.

0.69-inch Native 4K D-ILA Devices (x3) / 40,000:1 native contrast / New BLU-Escent Laser 2,000-lumen / Gen2 Frame Adapt HDR with Deeper Blacks / New Picture mode “Vivid”

Exceptional Contrast, High Brightness, and Superior Resolution JVC Delivers Visual Excellence and Total Immersion

Third-generation, Native 4K D-ILA Device 8,192 x 4,320 pixels D-ILA device is the heart of projectors that plays an important role in projecting beautiful images. Device perfection continues to date – the third generation (Gen3) 0.69-inch native 4K D-ILA device has improved its alignment control of liquid crystals and enhanced the flatness of image pixels to offer 1.5-times* the native contrast ratio on the DLA-RS4200 compared to the Gen2 device.

Unparalleled Black Level and High Luminance The DLA-RS4200 boasts the industry’s highest native contrast of 150,000:1* with the Gen3 0.69-inch 4K D-ILA device and wire-grid optical engine, however in combination with the dynamic laser light control, which analyzes the incoming video signal to automatically control the amount of outgoing laser light, a dynamic contrast level of ∞:1 (infinity to 1) can be achieved in scenes with pitch blackness by completely shutting off the light source.

Light Source for Exceptional Brightness Another essential aspect of projectors lies in their light source. JVC’s D-ILA projectors feature “BLUEscent Laser” light source to achieve exceptional peak brightness of 3,300 lumens on the DLA-RS4200 and 2,700 lumens on the DLA-RS3200, both with longevity of 20,000 hours. Power efficiency improvements made on the BLU-Escent Laser also contributes to saving power.

*as of September 2024 for projectors featuring native 4K panel

Features & Specs

Power & Light Source

• Light Engine: BLU-Escent Laser Diode — Offers consistent brightness and long-term reliability
• Brightness: 2,000 ANSI Lumens
• Light Source Life: Approx. 20,000 hours (Normal mode)
• Power Consumption: 280W (In use) / 0.3W (Eco-Standby)
• Laser Control: 101-step dynamic laser light control for precise luminance adjustment

Image & Processing Features

• Imaging Device: Gen3 0.69-inch Native 4K D-ILA Devices (x3)
• Native Resolution: 4,096 x 2,160 pixels (Full 4K)
• Contrast Ratio: 40,000:1 (Native) / $\infty:1$ (Dynamic)
• HDR Processing: Gen2 Frame Adapt HDR with Theater Optimizer for frame-by-frame tone mapping
• HDR Compatibility: HDR10+, HDR10, HLG (Hybrid Log Gamma), and DML (Display Mastering Luminance)
• Picture Modes: Includes "Vivid" mode for SDR content/gaming and Filmmaker Mode™

Optical & Lens Control

• Lens Assembly: 80 mm large-aperture, 15-element, 11-group all-glass motorized 4K lens
• Zoom: 1.6x Motorized Zoom & Focus
• Lens Shift: Motorized ±70% Vertical and ±28% Horizontal (16:9 aspect ratio)
• Lens Memory: 5 customizable installation presets for different screen ratios and masks
• Throw Ratio: 1.34:1 to 2.14:1 (16:9)

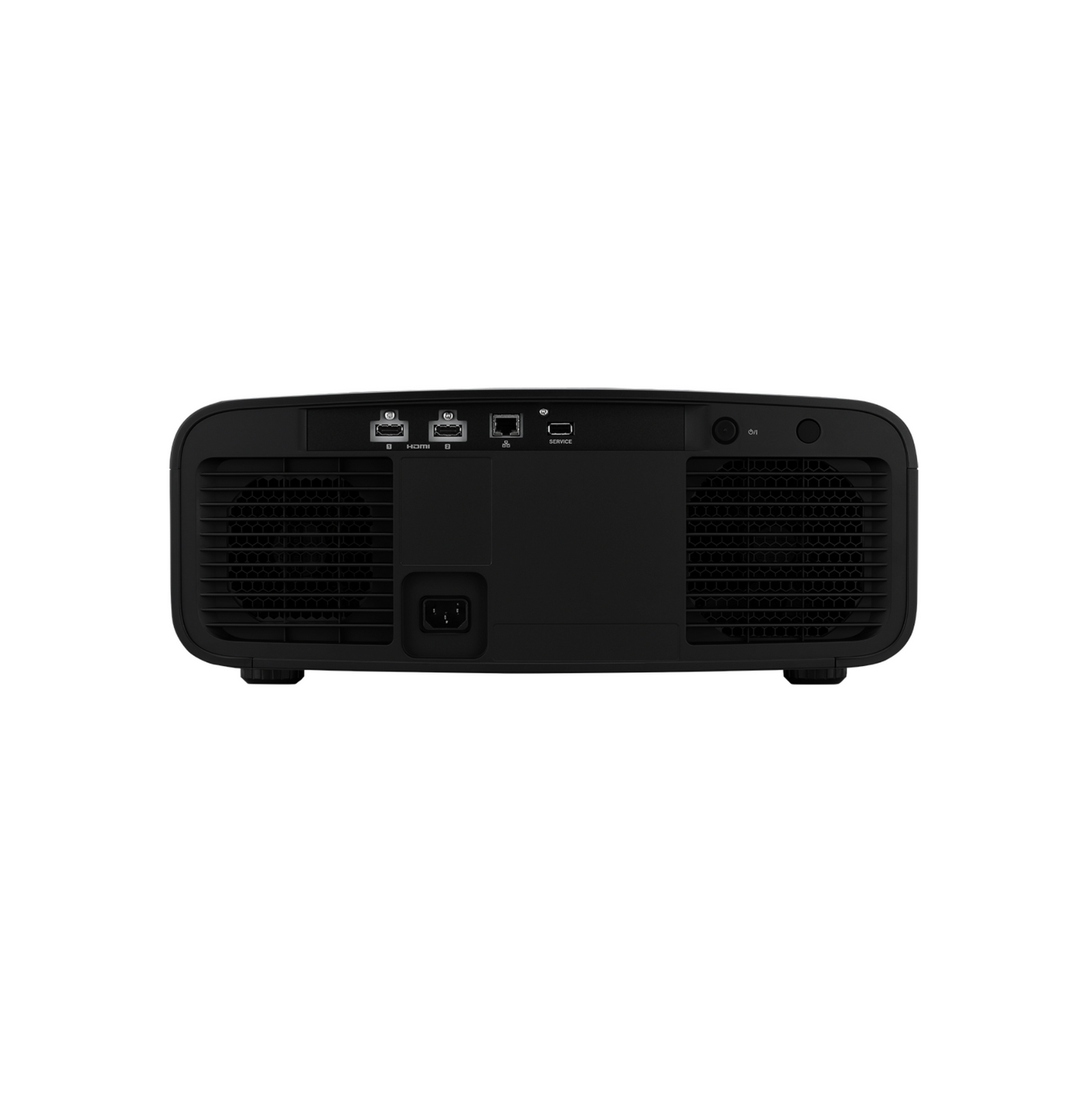

Inputs & Outputs

• HDMI Inputs: 2 x HDMI (32Gbps, HDCP 2.3, 4K/60p support)
• Control Ports: 1 x LAN (RJ45), 1 x RS-232C (D-sub 9-pin)
• Service Port: 1 x USB Type-A (for firmware updates and settings backup)
• Trigger: 1 x 12V Trigger (Mini-jack) for automated screen control

Physical Dimensions & Weight

• Dimensions (W x H x D): 17.72" x 7.13" x 18.86" (450 x 181 x 479 mm) — 35% smaller volume than previous generations
• Weight: 32.2 lbs (14.6 kg)
• Operating Noise: 23 dB (in Low/Normal mode)
• Exhaust Design: Rear exhaust with front air intake to allow for flexible shelf mounting

Design & Build

• Chassis: Completely redesigned compact chassis for versatile home theater placement
• Cooling System: Optimized airflow to minimize heat-related image distortion
• Calibration: ISFccc Certified with JVC Auto Calibration support (requires external sensor)
• Build Quality: High-rigidity construction with a focus on sustainable, reduced-plastic materials
