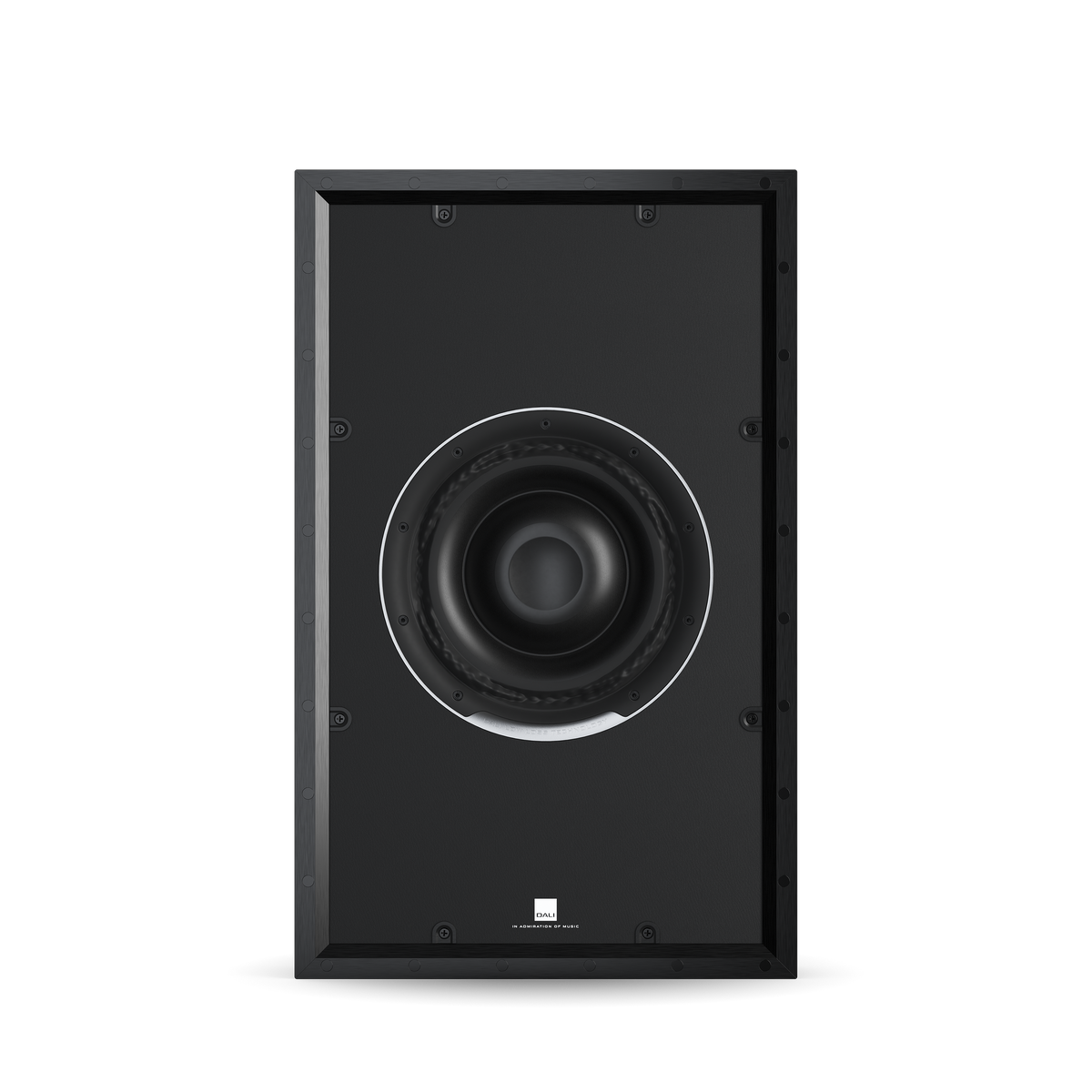

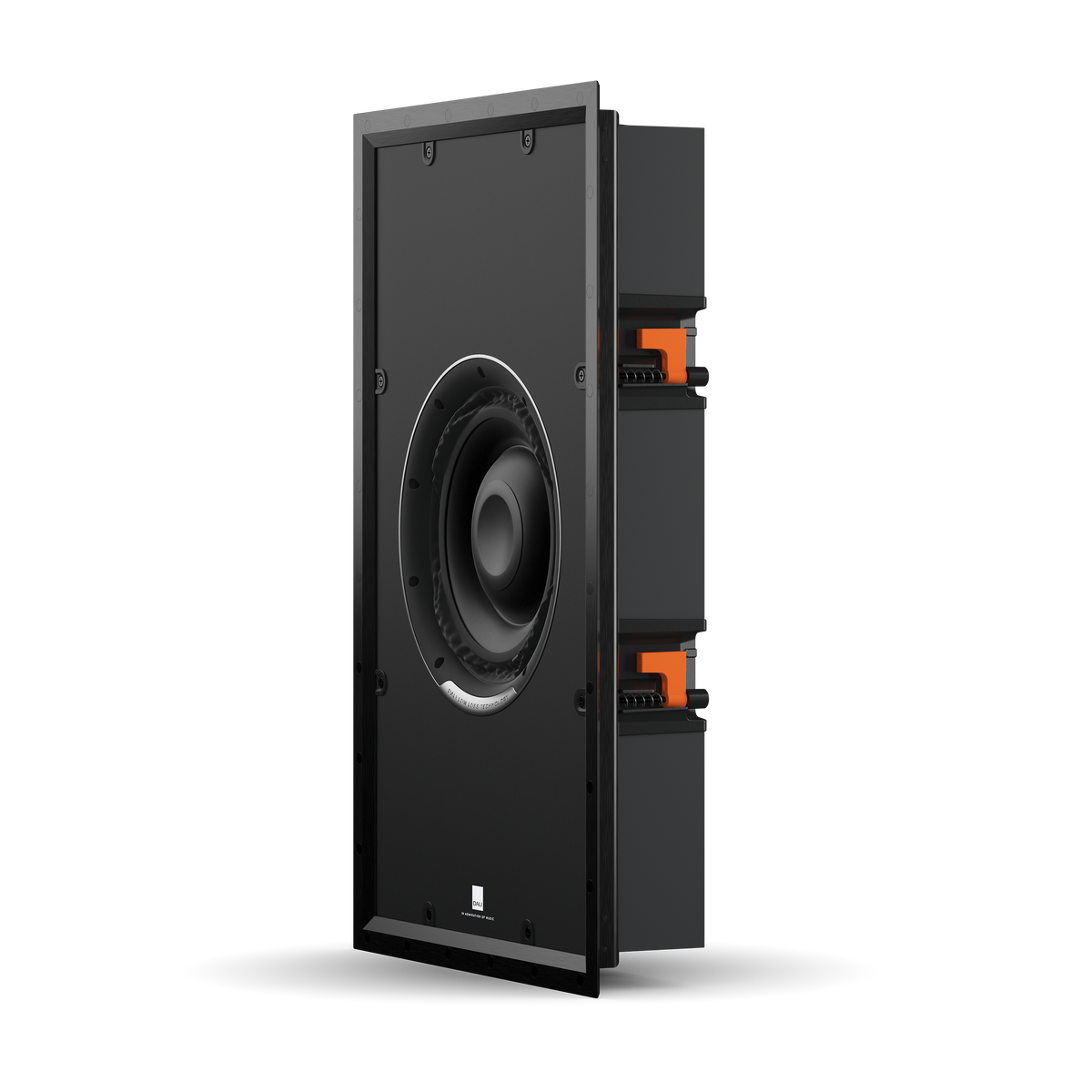

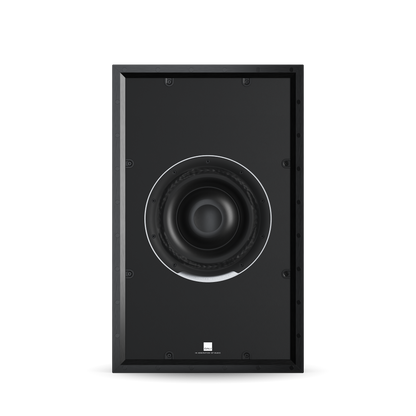

DALI PHANTOM IW SUB S-100 In-Wall Subwoofer

A shallow 10-inch passive installation subwoofer for discreet bass in stereo and home theatre systems. Suitable for in-wall installation, with optional arrangements for surface mounting. An external amplifier is required and sold separately.

Sold individually.

Specifications

• Frequency Range [+/- 3 dB] [Hz]: 26 - 250
• Sensitivity [2.83V/1m] [dB]: 84
• Maximum SPL [@ 1m] [dB]: 110
• Low Frequency Driver(s): 1 x 10” long stroke
• Outer Dimensions [HxWxD] [mm/inch]: 657 x 412 x 107 / 25.87 x 16.22 x 4.22 (inc. grille)
• Cutout Dimensions [HxWxD] [mm/inch]: 615 x 370 / 24.2 x 14.5
• Mounting Depth [mm/inch]: 102 / 4.02
• Weight incl. Grille [kg/lb]: 17.25 / 38.03
• Recommended Amplifier: DALI PHANTOM AMP-2500 DSP

Optional installation accessories

Available separately:

• PHANTOM S-80 on-wall frame

Contact Unify AV for pricing, availability and help selecting accessories for your installation.
