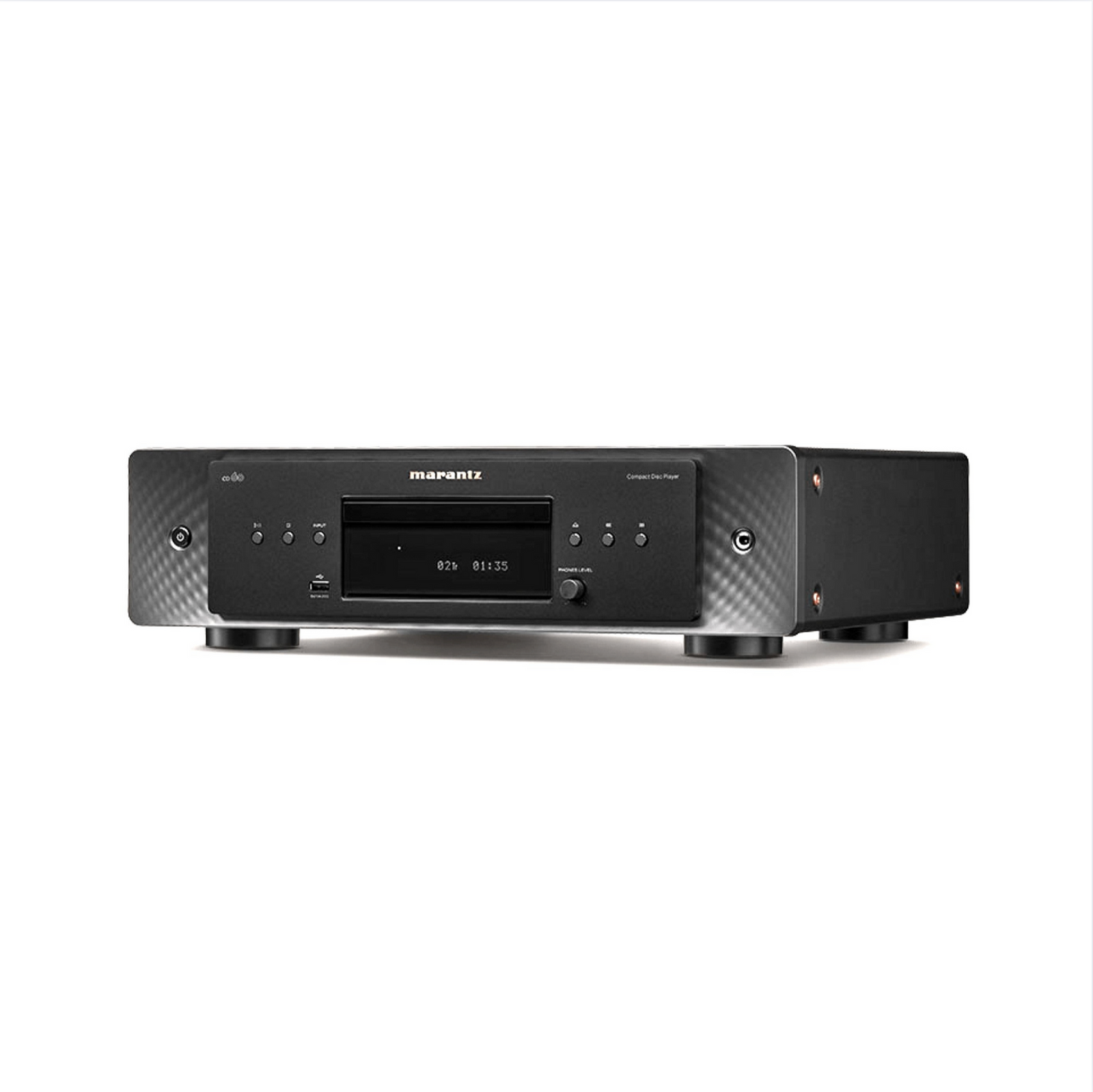

CD60 Premium CD Player with Modern Design and Custom HDAM

Built with high quality materials and Sound Master tuned to inspire listeners to discover new details in their favourite CDs.

Rich, Warm, and Spacious Sound

Expertly tuned by the legendary Marantz Sound Master for The Most Musical Sound. CD 60 is the CD player your cherished collection deserves.

Optimized HDAM Circuit

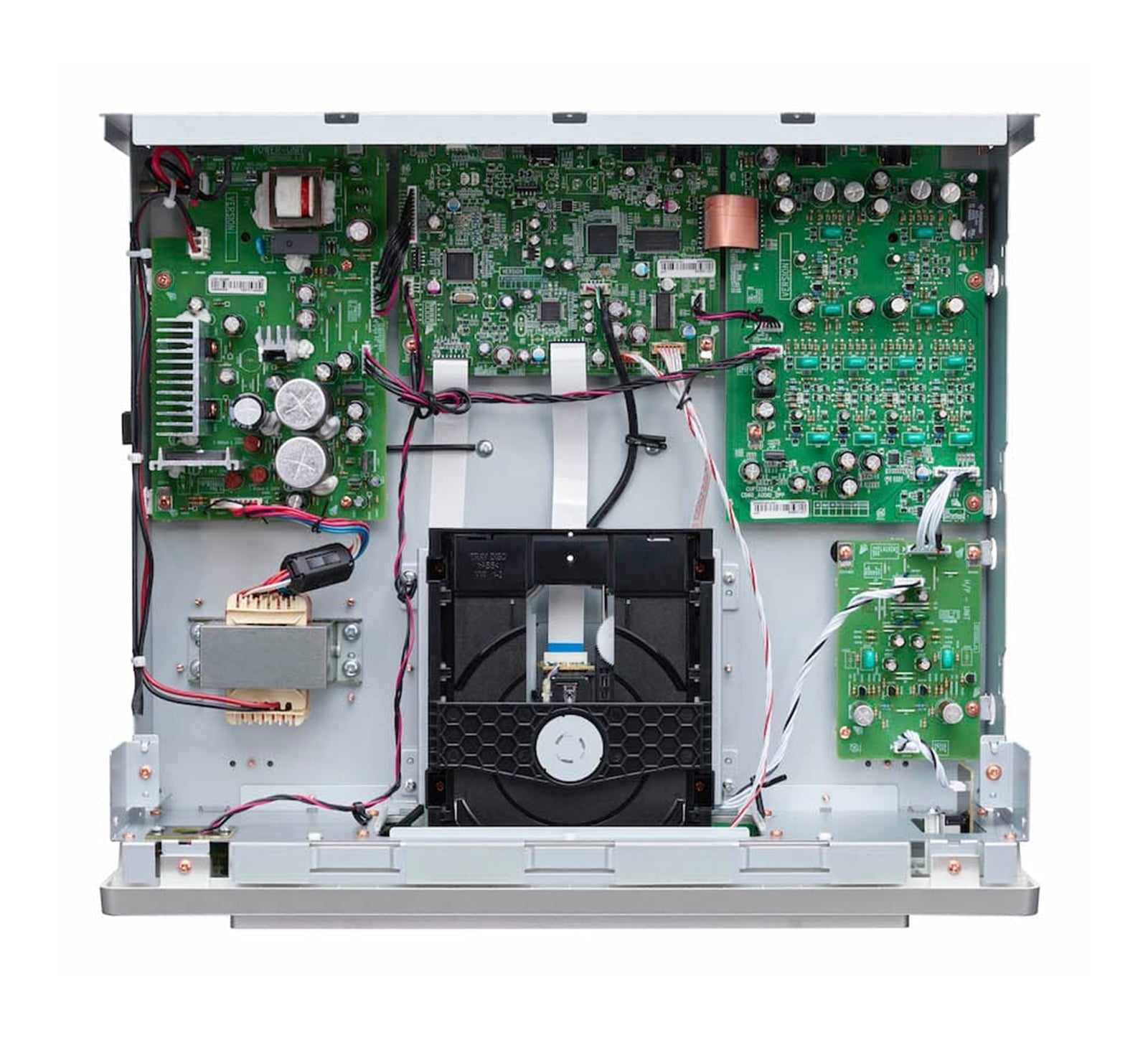

In the CD 60, the proprietary HDAM circuit has been further optimized from its previous version by placing the parts symmetrically on the audio board and creating a more direct signal path. This update improves the sound stage from the previous models in pursuit of The Most Musical Sound.

High-Current & Power Supply

The CD 60 power supply uses highspeed, high-current Schottky barrier diodes, higher value current storage capacitors and improved voltage regulators compared to predecessor models in this class. Oversize capacitors in the power supply improve current stability and reduced noise during highly demanding listening sessions.

Plays Hi-Res Audio & USB Sources

The CD 60 can play back MP3, WMA, AAC and WAV, FLAC HD, ALAC, AIFF (up to 192-kHz/24bit), and DSD (up to 5.6- MHz) files from a connected USB storage device.

General

• Unit (W x H x D mm): 442 x 129 x 396
• Net weight: 7.5kg
• Packaging Dimensions (W x H x D mm): 525×249×511

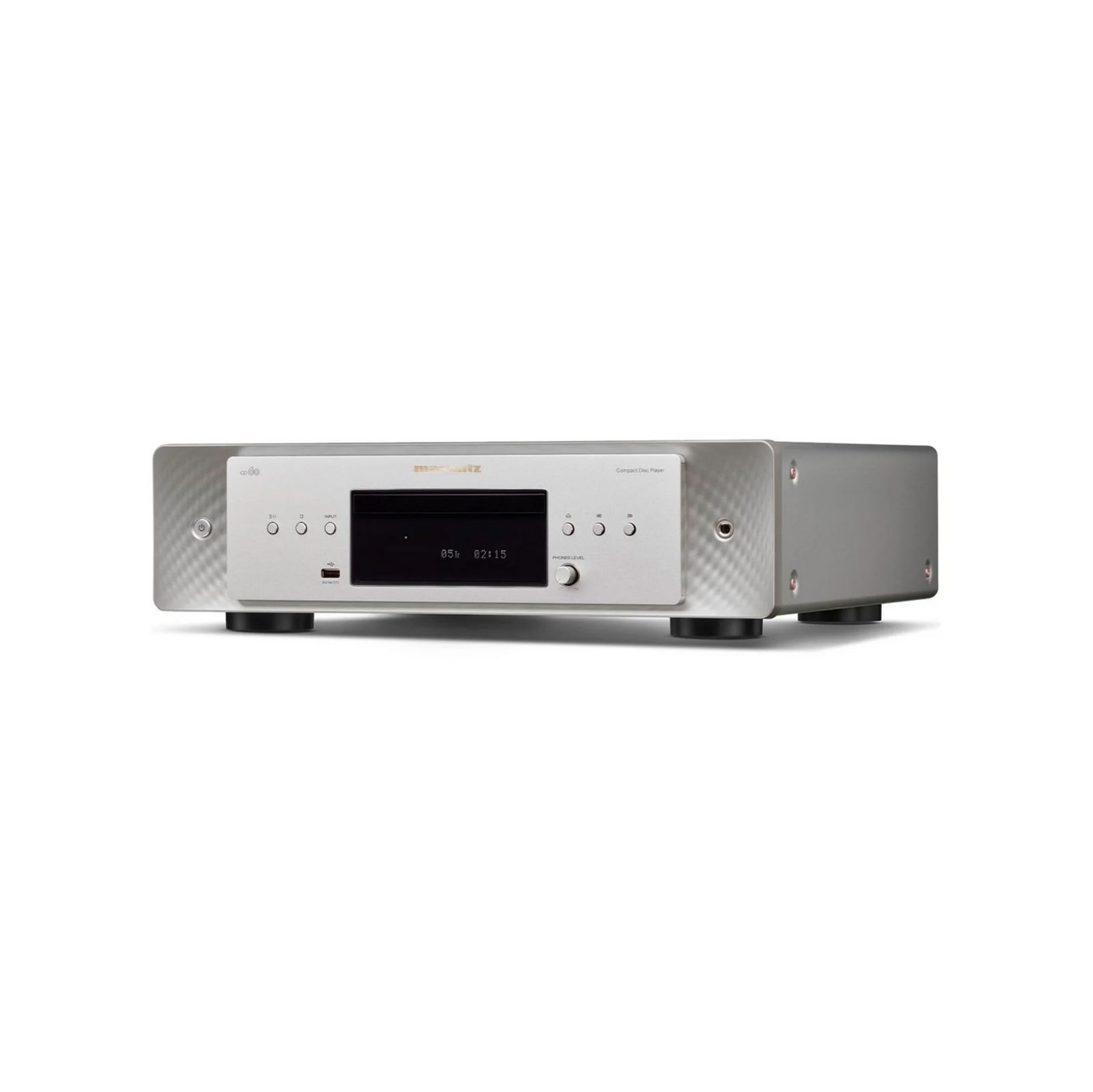

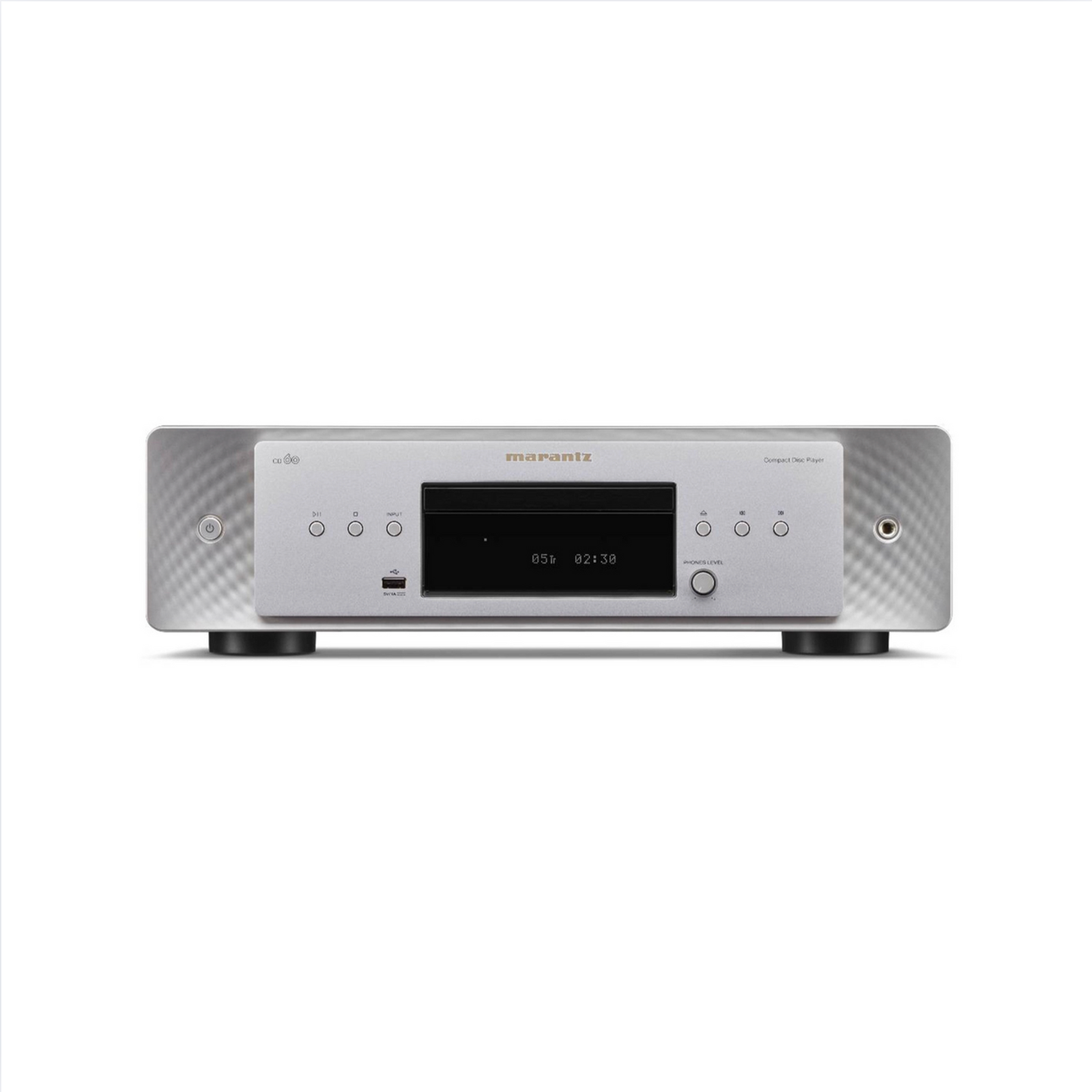

• Panel Color Available Colours: Silver/Gold and Marantz Black
• Front (Center) Panel: Aluminum


Specifications

• Frequency response USB DSD: 2Hz - 50kHz (-3dB)
• USB PCM: 2Hz - 50kHz (-1.5dB)
• CD: 2Hz - 20kHz
• Total Harmonic Distortion USB DSD: 0.0006%
• USB PCM 24bit: 0.0005%
• CD: 0.0015%
• Signal to Noise Ratio USB DSD: 110dB
• USB PCM 24bit: 118dB
• CD: 118dB
• Dynamic Range USB DSD: 110dB
• USB PCM 24bit: 118dB
• CD: 101dB
• Line Output Level 2.2Vrms
• Headphone Output Level 28mW / 32 ohms
• Power Consumption 38W
• at Standby 0.3W


Audio Features

• HDAM New HDAM + HDAM-SA2
• Power Transformer EI
• Headphone Amp High slew rate op-amp
• + HDAM-SA2
• H/P Amp Gain Setting Yes (Low / Mid / High)
• Digital Filter Filter 1, 2 Selectable

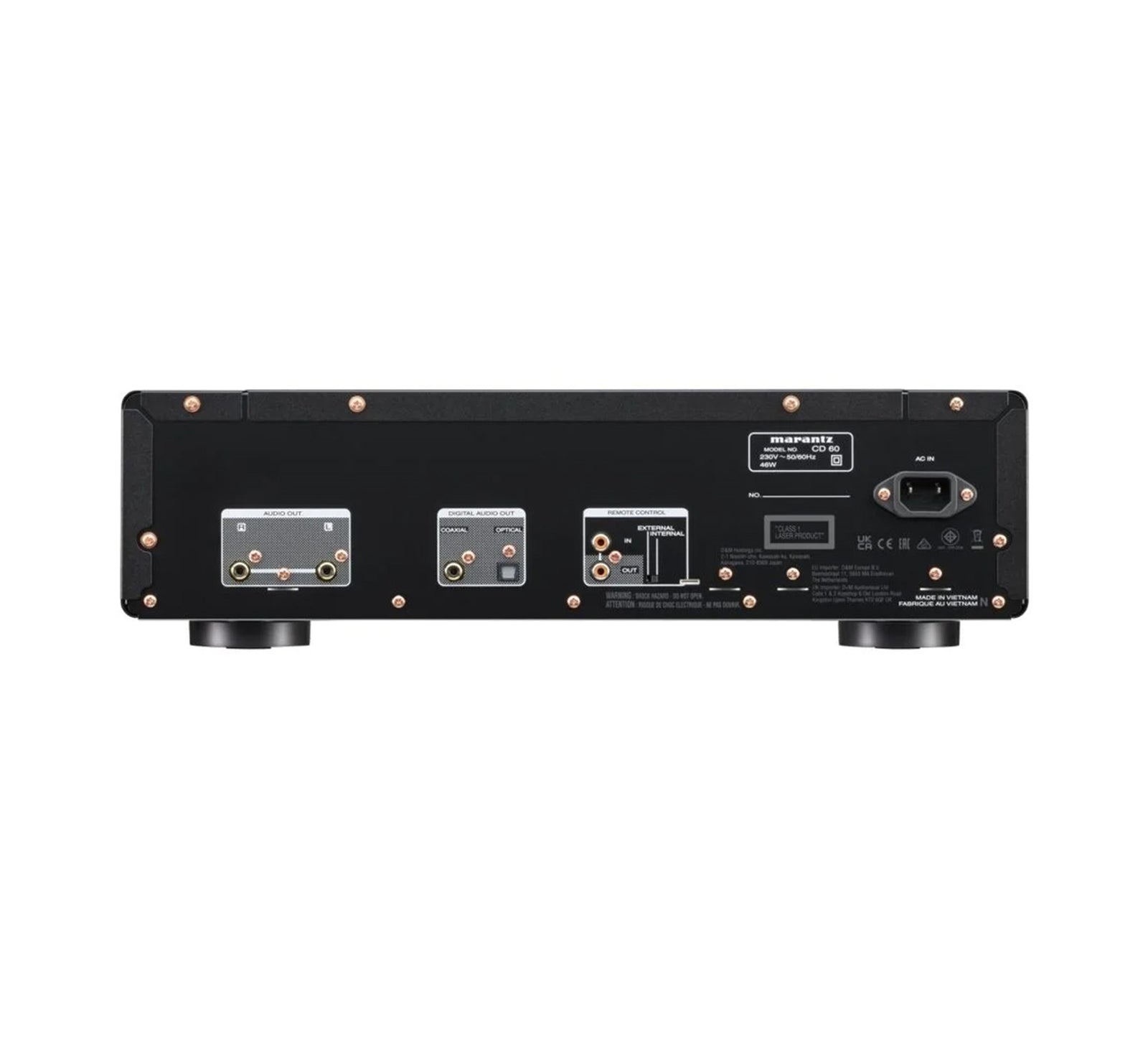

Connectivity / Playback Capability

• CD Compatibility CD / CD-R/RW / WMA / MP3 / AAC
• Data Disc Compatibility DSD / WAV / ALAC
• Fixed Analog Output (RCA) 1 (Gold Plated)
• Optical input / output (Maximum Support) 0 / 1
• Coaxial input / output (Maximum Support) 0 / 1
• Headphone Output 1
• Remote Control Bus Terminal Yes (RC-5 In / Out)
• w/ External / Internal Select Switch
• Flasher Input Yes (U ver)
• USB A 1 (Front)
• Mass Storage Class
• 5V/1A
• Support format FAT 16/32
• USB-A: FLAC / WAV / AIFF / ALAC / DSD Yes / Yes / Yes / Yes
• DSD Native Playback Yes
• USB Firmware Update Yes

Easy to use

• Remote Controller System Remote
• (Amp and CD Player Control)
• Unit control (Button) POWER, Play/Pause, Stop, Input, Open/Close, Fwd, Rev
• Unit control (Knob) 1
• Phones Level
• Dimmer for Front Display Bright / Dim / Dark / Off
• Control with App via Network Player (Use Remote Control Bus) Yes
• Last Function Memory Yes
• Timer Play (Need external audio timer) Yes
• On/Off selectable in Menu
• Auto Standby Mode Yes
• Other Stereo RCA Cable x1
• Remote connector cable x1
• Accessory Box Yes
• Battery Yes (AAA x2)
• Power Cord Yes
