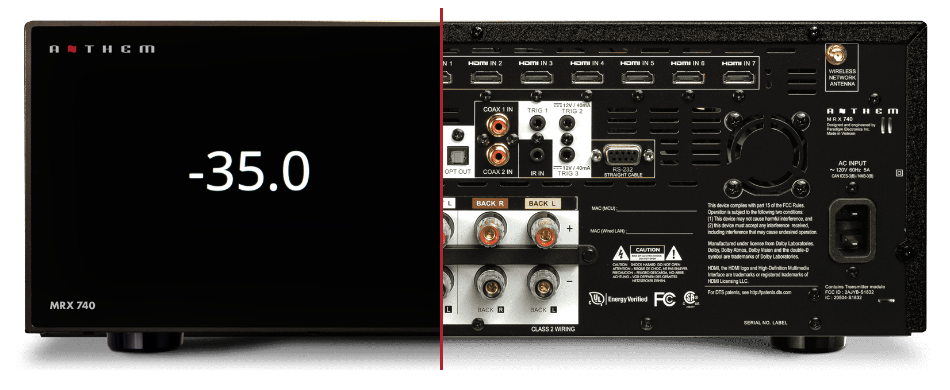

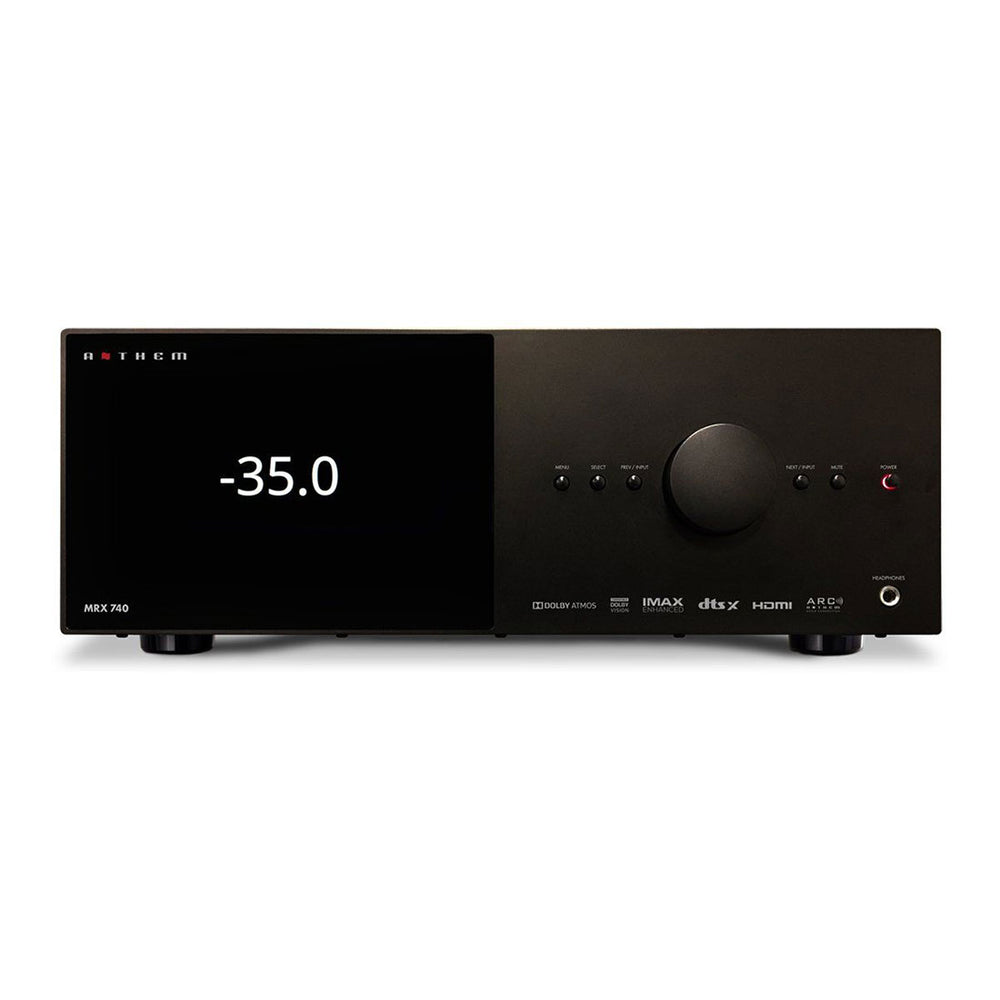

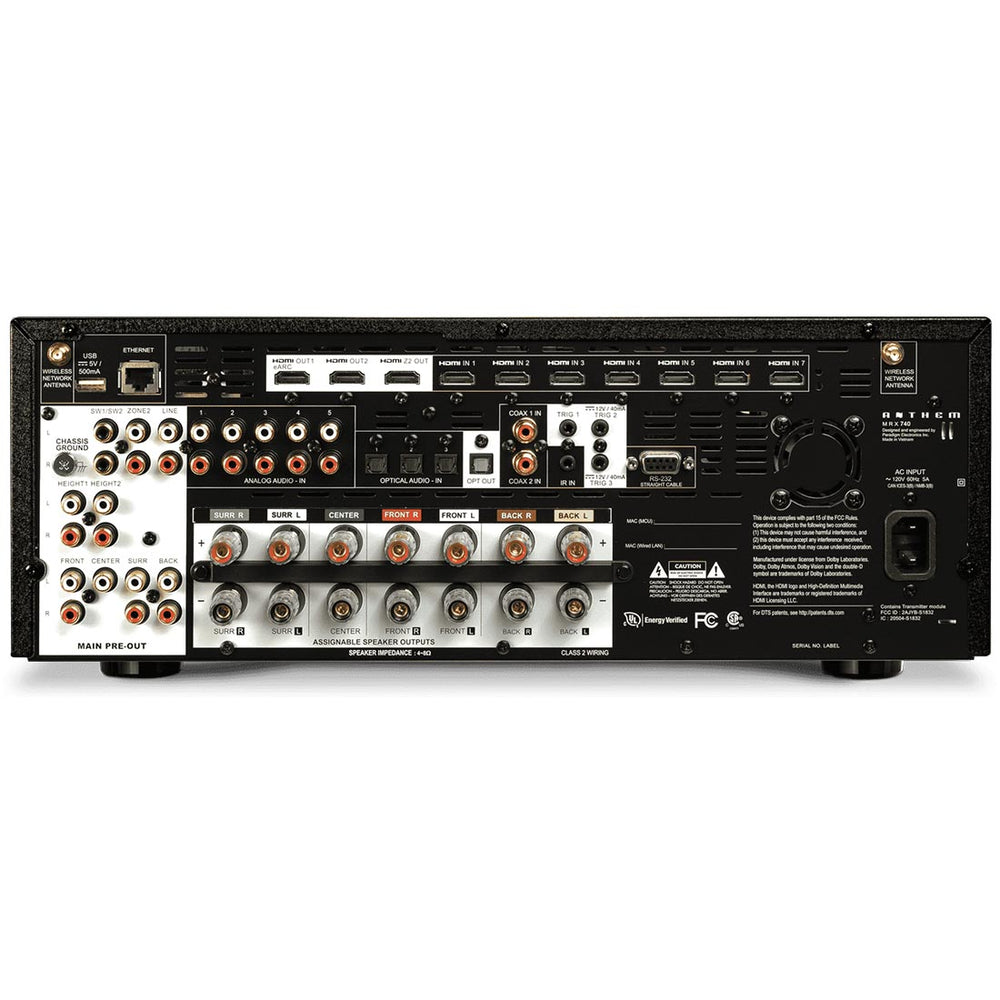

Anthem MRX 740 8K 11.2 Pre-Amplifier / 7 Amplifier Channels AV Receiver (MRX7408K)

Anthem MRX 740 8K 11.2 Pre-Amplifier / 7 Amplifier Channels AV Receiver

The MRX 740-8K is the successor to the best-selling Anthem MRX 720 Home Theater Receiver. This is the model we think will be our most popular one. It has seven powered channels built-in, offering 140 watts per channel. The amp section is a lot beefier than the MRX 540 so you will get better dynamics and speaker control with the MRX 740.

Anthem - Pute Performance, Pure Value

Anthem's MRX A/V Receivers are about maximizing audio performance that previously has been unobtainable at their respective price points. Building on the feature set of our previous models, we've added the newest version of ARC Genesis, a redesigned and more accurate calibration microphone, Anthem's Web User Interface, integrated streaming support, object-oriented audio codecs with support for up to 15.2 channels and the clean power delivery Anthem is known for with up to 140 watts per channel.

The MRX 540, 740 and 1140 are a great way to bring premium audio to any home theater or media room. Seamlessly integrate your smart TV or projector with 7 dedicated 8K HDMI inputs that support 8K/60Hz or 4K/120Hz pass-through and 3 dedicated outputs with eARC. With MRX, you can enjoy 8K quality video from all of your 8K source devices in amazing clarity.

Complexity Simplified

At Anthem, our goal is to shape how you interact with your technology, so we went the extra mile to ensure no detail is overlooked while providing the utmost flexibility when it comes to device setup. Using a phone, tablet or laptop, owners can easily access any function or setting and make changes on the fly. Power the primary or secondary zone on and off, adjust volume, change audio modes, tweak channel trims and more, for a perfect surround sound experience. You're in control, and it's never been easier.

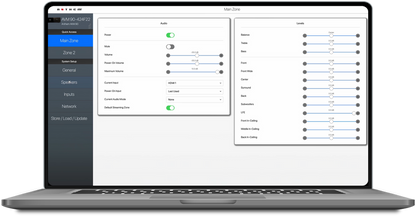

The On-Screen User-Interface Re-Invented

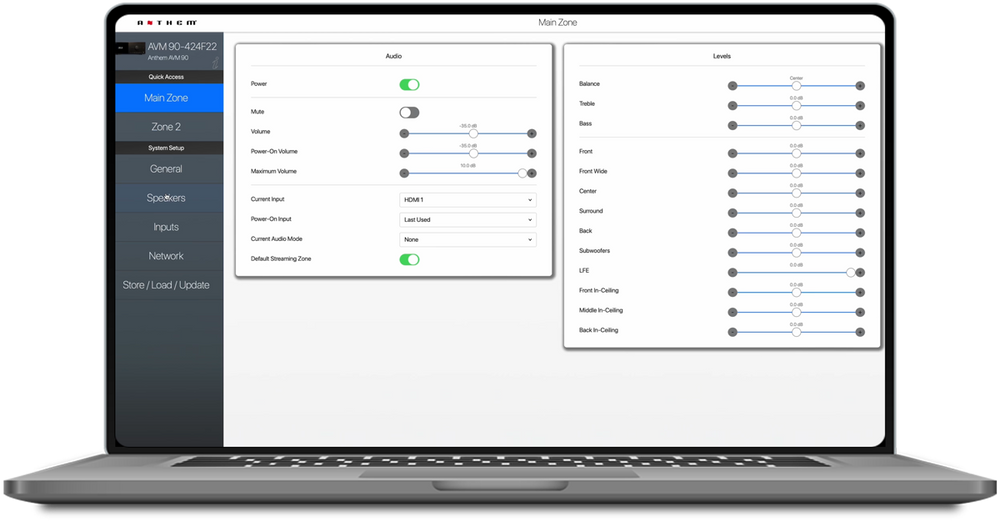

The Anthem Web User Interface was specially designed for easy setup. Nothing could be more simple than on-site configuration and calibration using our intuitive web based controls. The specially designed, adaptive web based user interface works on any device. Custom configure everything the new AVM/MRX series has to offer.

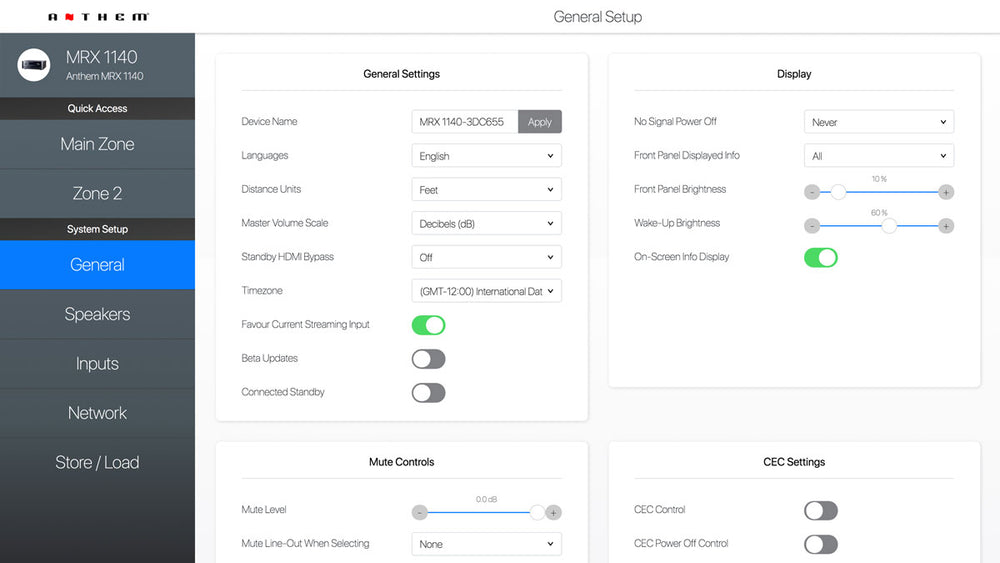

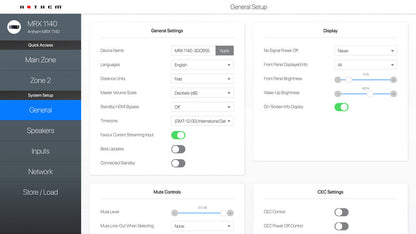

General Setup

• Custom Name Your Device
• Configure User Preferences
• Adjust Display Settings
• Adjust CEC Settings
• Plus More

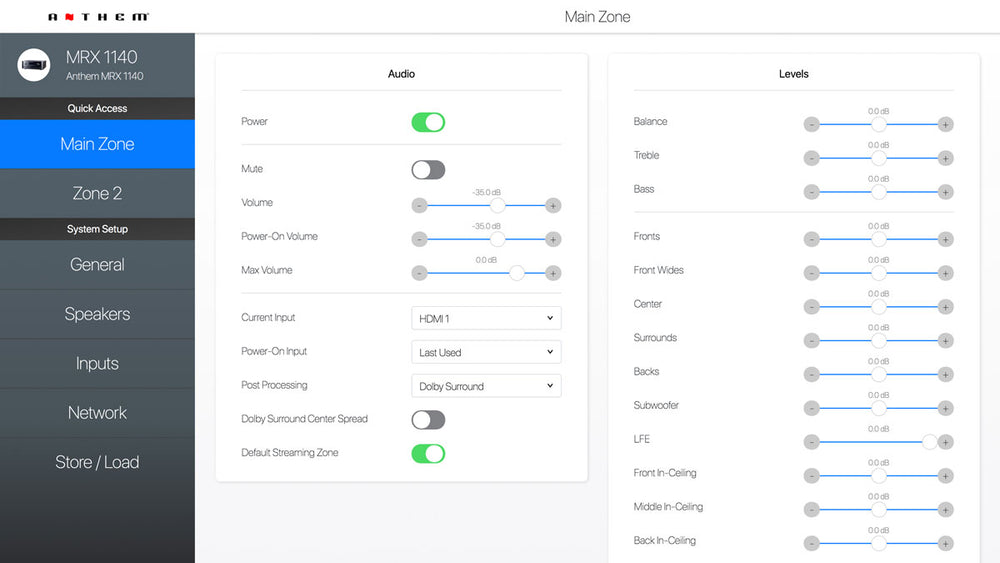

Main Zone

• Toggle Power
• Adjust Volume
• Select Current Audio Mode
• On-The-Fly Level Adjustments
• Plus More

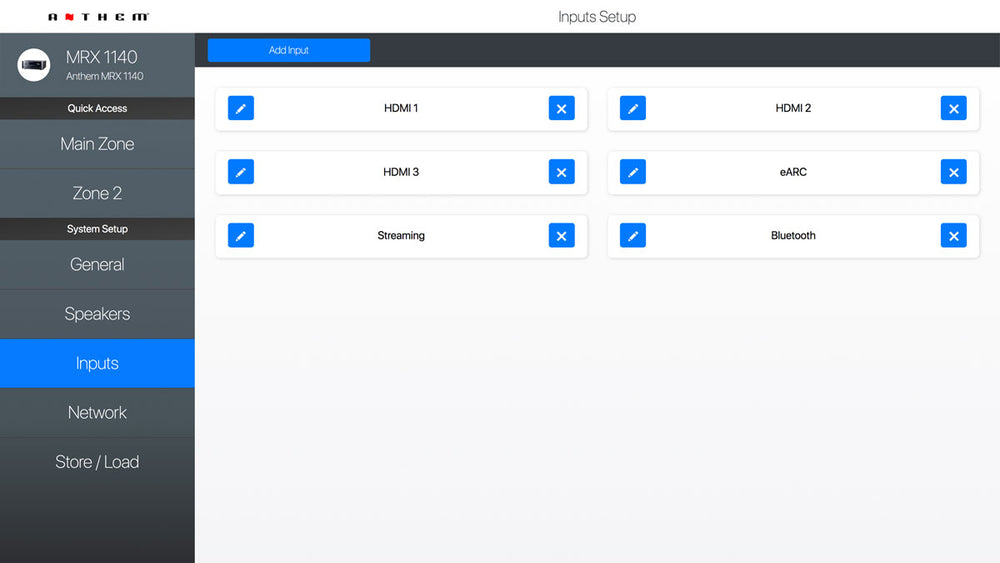

Input Setup

• Add/Delete Inputs
• Customize Input Names
• Configure Input Settings
• Toggle ARC On/Off
• Plus More

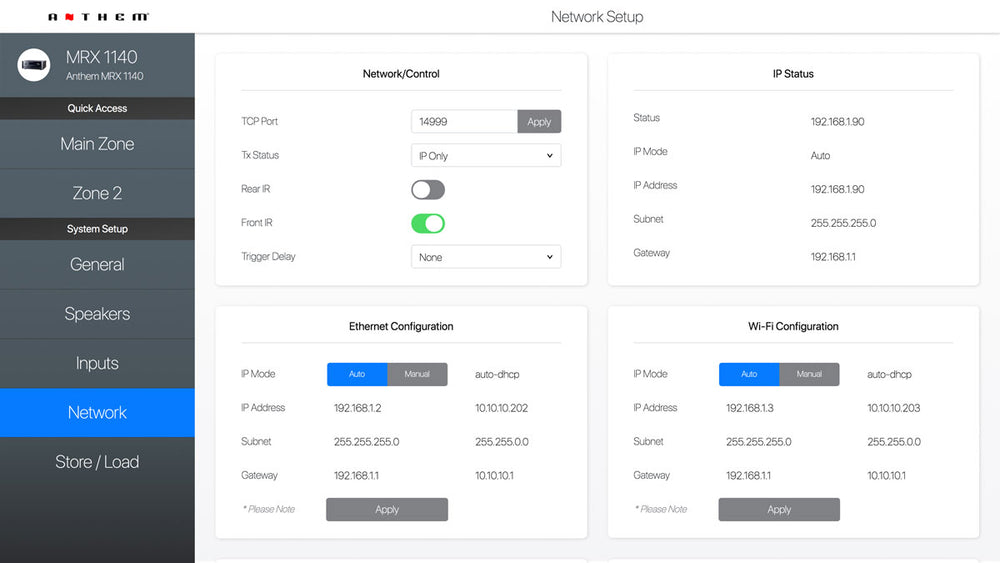

Network Setup

• Configure Network Settings
• Configure Trigger Settings
• Configure IR Settings
• Adjust Tx Status
• Plus More

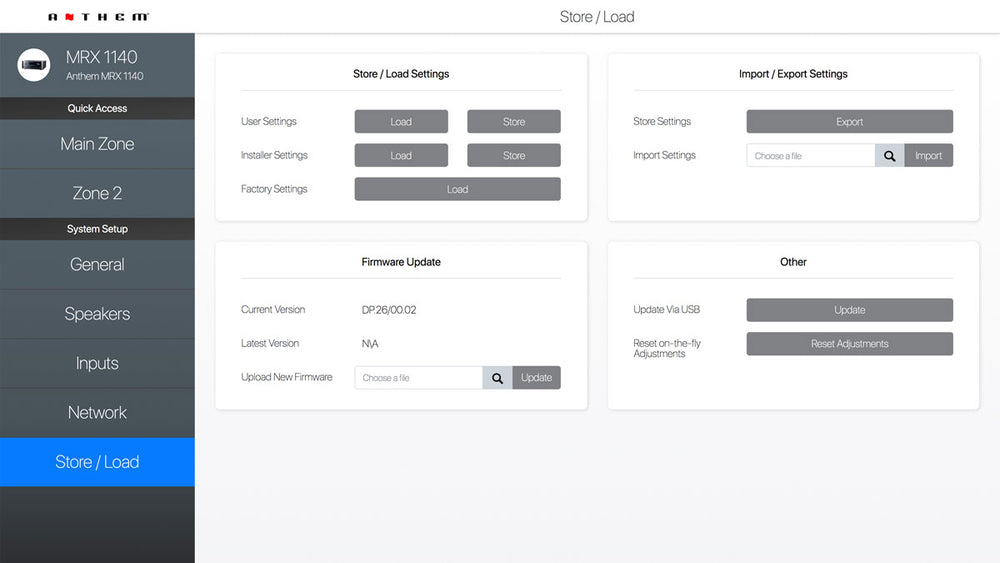

Store Load

• Store/Load Settings
• Import/Export Settings
• Reset On-The-Fly Adjustments
• Update Firmware

Zone 2

• Zone 2 Volume
• Zone 2 Max Volume
• Power-On Volume
• Zone 2 Input
• Zone 2 Power-On Input
• Default Streaming Zone

Advanced 8K HDMI Platform with e-ARC Support

Feel the power of every frame with the MRX Series and its advanced 8K HDMI 2.1 Platform with HDCP 2.3. Showcasing 7 dedicated 8K inputs which support 8K/60Hz or 4K/120Hz pass-through and 3 dedicated outputs with Enhanced Audio Return Channel, you can enjoy 8K quality video from all of your 8K source devices in amazing clarity. Also featuring the latest HDMI technology and specification, the MRX 540, 740 and 1140 allow you to take your home entertainment to the next level with HDR10+, Dynamic HDR10+, ALLM and VRR support. The possibilities are limitless; unlock the true potential of your media with the industry’s most flexible and feature-rich HDMI platform.

Enhanced Audio Return Channel (e-ARC)

e-ARC simplifies connectivity, provides greater ease of use, and supports the most advanced audio formats and highest audio quality. It ensures full compatibility between audio devices and upcoming HDMI 2.1 products.

Dynamic HDR

Dynamic HDR support ensures every moment of a video is displayed at its ideal values for depth, detail, brightness, contrast and wider color gamuts—on a scene-by-scene or even a frame-by-frame basis.

Enhanced Gaming Features

Enhanced gaming features ensure an added level of smooth and seamless motion and transitions for gaming, movies and video Variable Refresh Rate (VRR) reduces or eliminates lag, stutter and frame tearing for more fluid and better detailed gameplay. Auto Low Latency Mode (ALLM) allows the ideal latency setting to automatically be set allowing for smooth, lag-free and uninterrupted viewing and interactivity. https://cdn.pmlsound.com/anthem/avm90/videos/avm90-gaming-webb_.mp4

Experience Gaming Like Never Before on an MRX

It’s never been a more exciting time to be a gamer. With the latest consoles offering up to 4K/120Hz graphics, realistic HDR and Dolby Vision dynamic range, and immersive Dolby Atmos sound, you have to make sure your Home Theater gear won’t hold you back. Enter the MRX Series, our most feature-rich AV receivers to date!

Channel Re-Assignment

The built in high performance amplifier modules can be configured in many ways to suit the specific speaker configuration. Unused amplifier channels can be re-assigned to Bi-Amplify demanding front speakers, power surrounds, presence speakers, or a second zone (Available on MRX 1140 and MRX 740). Configure amplifier channels for your system's needs, then fully optimize the presentation with ARC Genesis.

Robust Integration

Our latest Anthem MRX series features external control and IP control capabilities for easy customization and compatibility with third-party integration solutions. It offers IP control capability for major third-party control devices including:

Design

At Anthem, we have one simple goal – to design, engineer and manufacture audio/video products that deliver premium performance and convenience at a reasonable price. We do this by spending thousands of hours selecting and testing components, carefully designing our own circuit topologies, and backing them with robust power supplies that ensure maximum long-term quality and reliability. We achieve this with our team at the Paradigm/Anthem Research Center and their decades of combined experience.

Anthem Remote App

Gain unprecedented command over your network-enabled Anthem A/V Receiver, Processor or Pre-amplifier. The Anthem Remote App uses a Wifi connection to simplify the configuration of supported Anthem devices. App-based controls include volume level, muting, input selection, power, listening modes, bass, treble, level trims, menu navigation, and Anthem Room Correction (ARC) control.

Remote App Features

•  A Wi-Fi Smart Remote Control: Turn your smartphone or tablet into a Wi-Fi smart remote control for your Anthem network-enabled products.
•  Controls Both Audio Zones: Independent control of both audio zones allows you to quickly and effortlessly adjust power, volume, and input selection with the press of a button.
•  Features & Functions: Commonly used features and functions are conveniently grouped to ensure quick and easy access.
•  User Experience: Consistent user experience across all network-enabled Anthem products ensures a great experience every time.
•  Web-user Interface: Direct access to the Anthem MRX/AVM x40 web-user interface allows complete control and setup functionality from your phone or tablet.
•  ARC On/Off Button: Toggle ARC on/off with the press of a button and instantly hear the benefits of the world's most advanced and sophisticated room correction platform.

 ARC Genesis is the newest software that works with many ARC enabled Anthem or Paradigm product. New features include support for both Mac and Windows; new target curve adjustment options including deep bass and high frequencies; improved algorithms and much more. ARC Genesis is backwards compatible with many Anthem and Paradigm products that are ARC or PBK enabled. For a complete list, please visit AnthemARC.com. This third generation of Anthem Room Correction software represents a significant leap forward in room correction with the most comprehensive set of features yet. ARC Genesis transforms the audio performance of compatible speakers or electronics while retaining the unique character of any room. Proprietary Digital Signal Processing (DSP) software works in tandem with a calibrated microphone (provided with many ARC and PBK enabled products) to provide astonishing improvements to the sound you hear.

The Anthem Advantage

Backed by over 35 years of home-grown,hands-on design, and innovative audio engineering experience, Anthem products provide an unprecedented level of reliability and functionality; delivering one of the industry’s highest performance/price ratios. This is just one reason why Anthem electronics are the choice of knowledgeable audiophiles, professional musicians and engineers the world over.

Features & Specs

PREAMPLIFIER
Maximum Output (<0.1% THD): 5.2 VRMS, 7.1VRMS
Frequency Response: 20Hz – 30KHz +/-0.2dB
THD+N (2 Vrms output): -100 dB
S/N Ratio (2 Vrms output, IEC-A filter): 110 dB

PREAMPLIFIER + AMPLIFIER (1 W OUTPUT)
MRX 740 SNR: 86dB others

SPEAKER IMPEDANCE
Compatible with 4 Ohms or higher impedance.

MAXIMUM CONTINUOUS OUTPUT (1% THD)
Channels 1-5, Two Driven into 8 Ohms: 140 W
Channels 1-5, Two Driven into 6 Ohms: 170 W
Remaining Channels, Two Driven into 8 Ohms: 60 W
Remaining Channels, Two Driven into 6 Ohms: 75 W

POWER CONSUMPTION
Typical Load: 485 W
Standby: 0.3 W
Standby IP Control Enabled: 1.8 W
Standby HDMI Bypass Enabled: 4.9 W

DIMENSIONS
Height (without feet): 6" (15.24 cm)
Height with Rackmount Kit: 4U
Width: 17" (43.18 cm)
Depth (including wifi ant not power cord): 14-1/2" (36.4 cm)
Weight: 33.2 lb (15.1 Kg)

POWER REQUIREMENT
120 V version: In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz.
220-240 V version: In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz.

Features and Functions

Features include:
New Electronics platform, up to 7.2 pre-amplifier channels with 7 amplifier channels, HDMI 2.0b HDCP 2.2, and HDMI 2.1 (8K)
All object-oriented audio codecs have been updated to the latest version of DTS:X and Dolby Atmos.
IMAX Enhanced
ARC Genesis now features a more precise microphone, ensuring better results in any listening environment.
Platform Agnostic Streaming with AirPlay2, Google Chromecast (Audio), Bluetooth v4.2, and Spotify Connect and Roon (coming soon!)
Reliable Networking Platform with web-based setup and over-the-air updates
Next-Generation DSP Platform
Modernized Design with high resolution front panel display
Amp matrixing with up to 6 re-assignable channels
Independent HDMI Zone 2 output.

Audio Features:
11.2 pre-amplifier channels with 7 amplifier channels. 140 watts per channel continuous power into 8 ohms.
Amp matrixing with up to 6 re-assignable channels
Two paralleled subwoofer outputs
Auto Subwoofer Phase Adjustments (ARC Genesis)
Auto Subwoofer Polarity Adjustments (ARC Genesis)
Latest Implementation of ARC Genesis
Four Speaker Profile Memories
2” / 5 cm Speaker Distance Increments
0.5dB Level Increments
Super Sub Front Setting

HDMI & Video:
Dolby Vision
IMAX Enhanced
HDMI 2.0b & HDCP 2.2 (hardware upgradeable to HDMI 2.1 8K)
HDMI eARC
4:4:4 Subsampling @4K60 (18.2 Gbps)
High Dynamic Range (HDR)
Hybrid Log Gamma (HLG)
BT.2020 Color Gamut
4K 50/60 Switching
Zone 2 HDMI Output
Dual HDMI Outputs
Standby Pass-Through

Decoding:
Dolby Atmos
Dolby HD
DTS:X
DTS-HD Master Audio

Custom Installation:
IP Control
RS-232 Control
IR Input
Three 12V Trigger Outputs
Pre-made Control Drivers
Save and Load Settings
Import and Export Settings
Rackmount kit (sold separately)

Streaming:
Apple Airplay
Apple Airplay 2
Google Chromecast Audio
Bluetooth
Spotify Connect (coming soon!)
Roon (coming soon!)

Listening Modes:
Anthem Logic
Dolby Surround
DTS Neural:X
DTS Virtual:X
Stereo
All Channel Stereo
Mono
All Channel Mono

Additional Features:
Anthem Web User Interface
Advanced Load Monitoring (ALM)
30 Input Configurations
Input trim adjustments
Power-on Input Assignment
Auto Power Off
Eco Mode (standby)
Over-the-air Network updates
USB updates
Beta updates (over-the-air)
Backlit Remote Control

Preamplifier
Maximum Output (<0.1% THD) – 5.2 VRMS, 7.1VRMS
Frequency Response – 20Hz – 30KHz +/-0.2dB
Frequency Response, Analog-Direct – N/A
THD+N (2 Vrms output) – -100 dB
S/N Ratio (2 Vrms output, IEC-A filter) – 110 dB
Preamplifier + Amplifier (1 W Output)
SNR: 91 dB ch 1-5, 86dB others
Speaker Impedance
Compatible with 4 Ohms or higher impedance.
Maximum Continuous Output (1% Thd)

Channels 1-5, Two Driven into 8 Ohms – 140 W
Channels 1-5, Two Driven into 6 Ohms – 170 W
Remaining Channels, Two Driven into 8 Ohms – 60 W
Remaining Channels, Two Driven into 6 Ohms – 75 W
Power Consumption

Typical Load – 485 W
Standby – 0.3 W
Standby IP Control Enabled – 1.8 W
Standby HDMI Bypass Enabled – 4.9 W
Dimensions
Height (without feet) – 6" (15.24 cm)
Height with Rackmount Kit – 4U
Width – 17" (43.18 cm)
Depth (including wifi ant not power cord) – 14-1/2" (36.4 cm)
Weight – 33.2 lb (12.8 kg)

Dimensions

Shipping Weight: 40.0lb
Product Weight: 31.0lb
Shipping Dimensions: 11" x 21" x 24.5"
Product Dimensions: 13.2" x 17" x 6.50"
