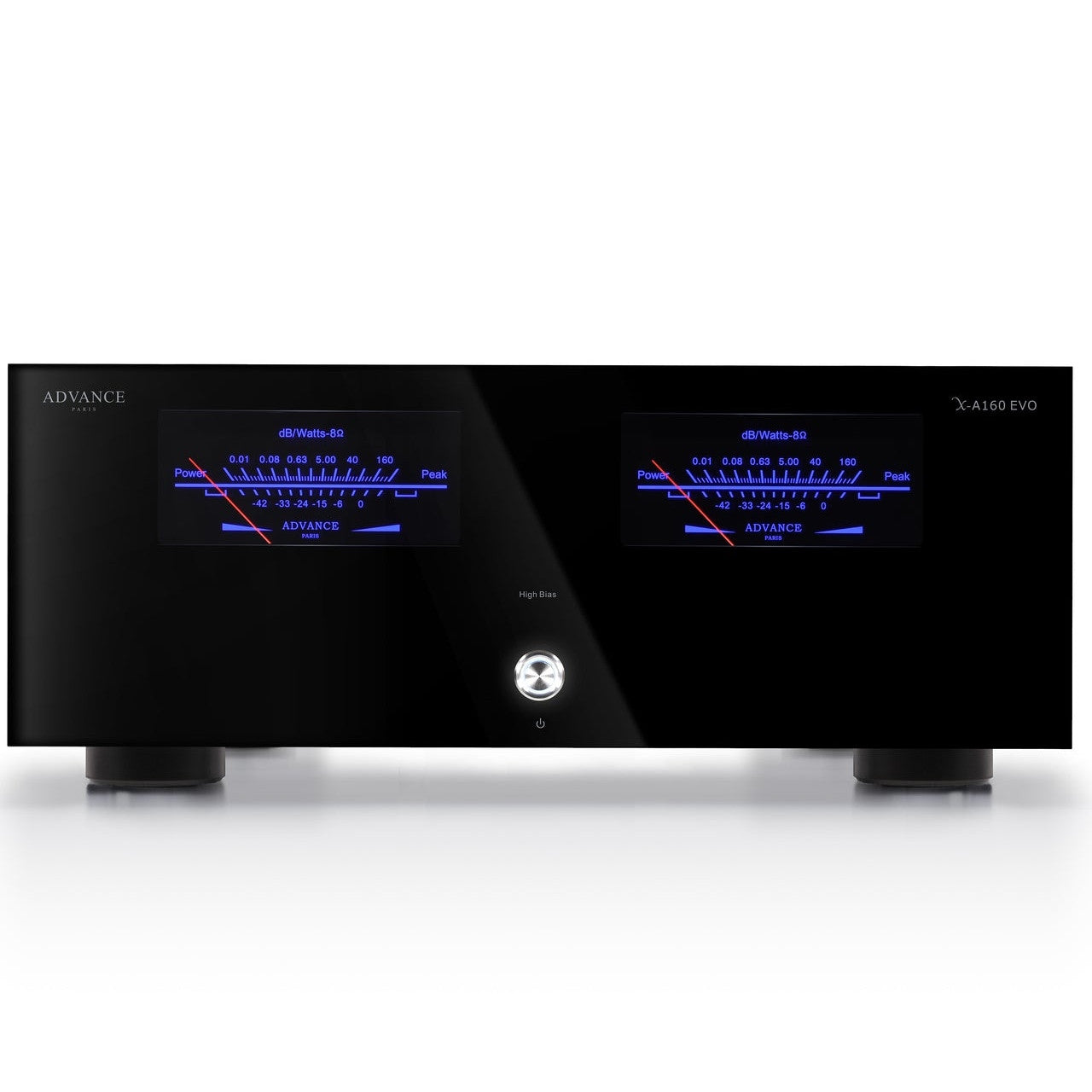

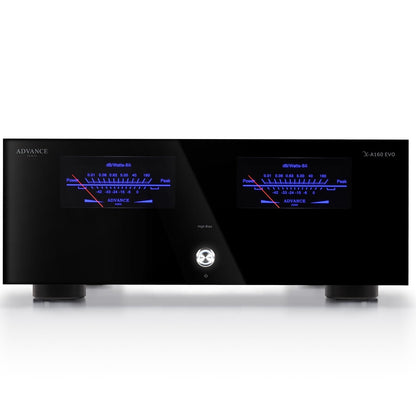

Advance Paris X-A160 EVO Power Amplifier
$2,845.00 CAD
Regular price
$2,845.00 CAD
Sale price
$2,845.00 CAD
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
New diagrams, power transistors identical to the MAA 1000, new power supply, more power, more music, more modern presentation such is the X-A160EVO.

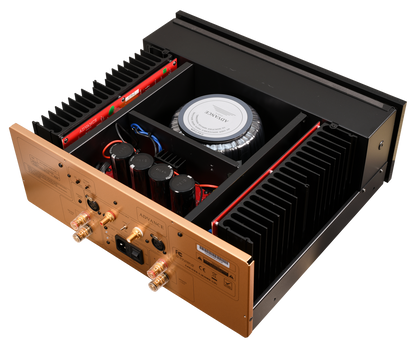

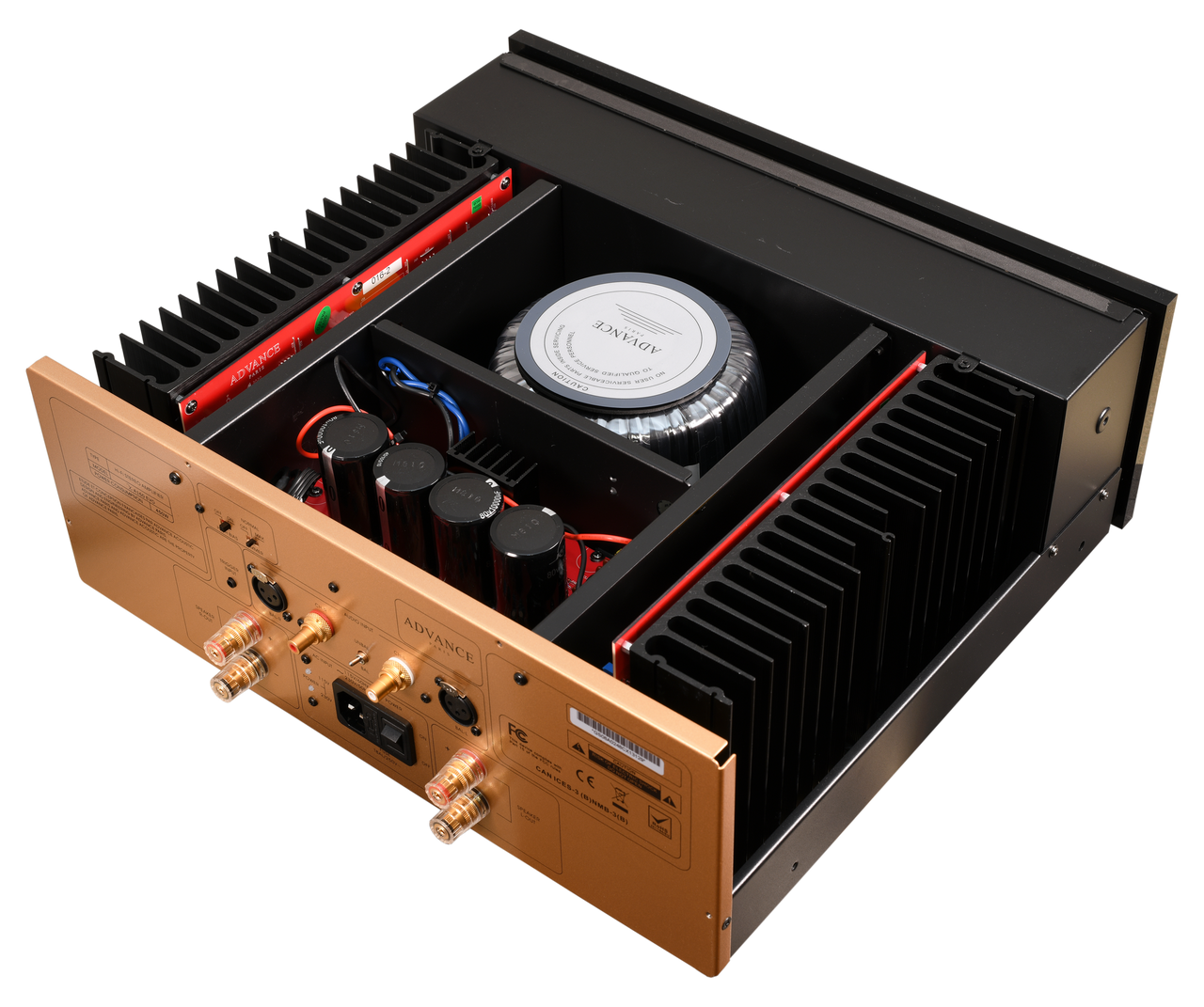

The X-A160EVO amplifier consists of an ultra-rigid, compartmentalized chassis, providing effective shielding, thus eliminating any risk of radiation between the various circuits of the device.
The use of “Audiophile” type components guarantees a reproduction of your favorite music with finesse and subtlety.
The high power supply associated with the "very high current" power transistors (NJW0281G – NJW0302G) of the MAA 1000, restores the most demanding dynamics.

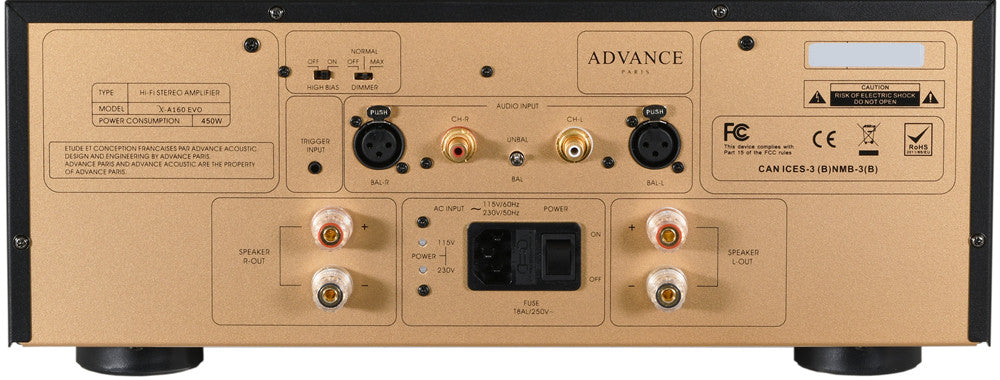

The X-A160EVO delivers a power of 160 Watts per channel in class AB*, a switch located at the back of the device allows the X-A160EVO to deliver the first Watts in class A*. Beyond this power, switching to class AB** takes place automatically when Hi-Bias is selected.
|
Output power 8Ω |
2 x 160 W RMS |
|
Output power 4Ω |
2 x 240 W RMS |
|
Bandwidth |
10 Hz - 80 kHz |
|
Distortion |
< 0.07% |
|
Signal-to-noise ratio |
> 120 dB |
|
Channel separation |
> 80 dB |
|
Input impedance Unbalanced |
20 KΩ |
|
Input impedance Balanced |
38 KΩ |
|
Mains voltage |
115-230V |
|
Standby power consumption |
< 0,5W |
|
Max. power consumption |
500W |
|
Transformer power |
700W |
|
Transformer |
Toroidal |
|
Height |
160 mm |
|
Width |
440 mm |
|
Depth |
430 mm |
|
Net weight |
19 kg |
|
Product type |
Power block |
|
VU-Meter |
Yes |
