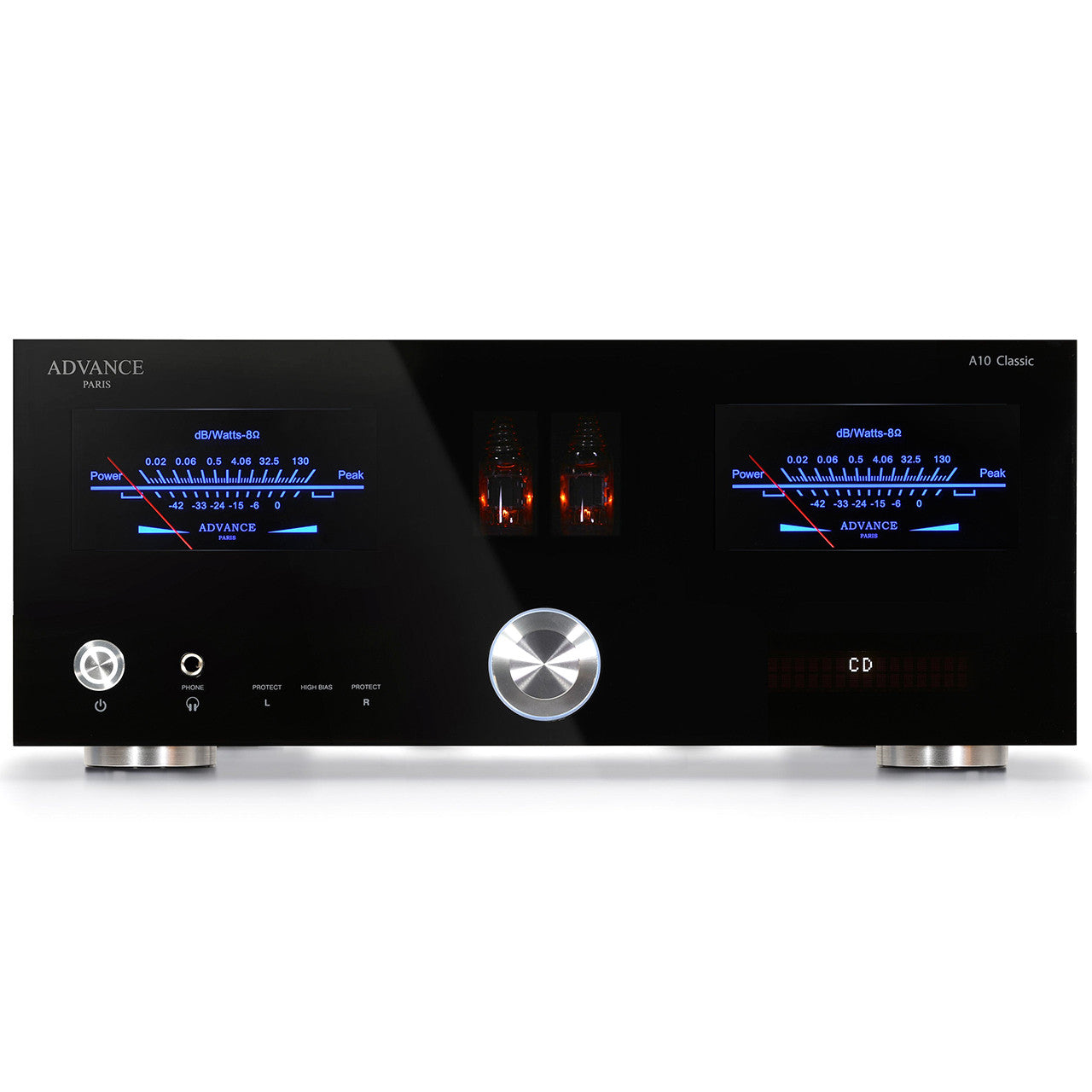

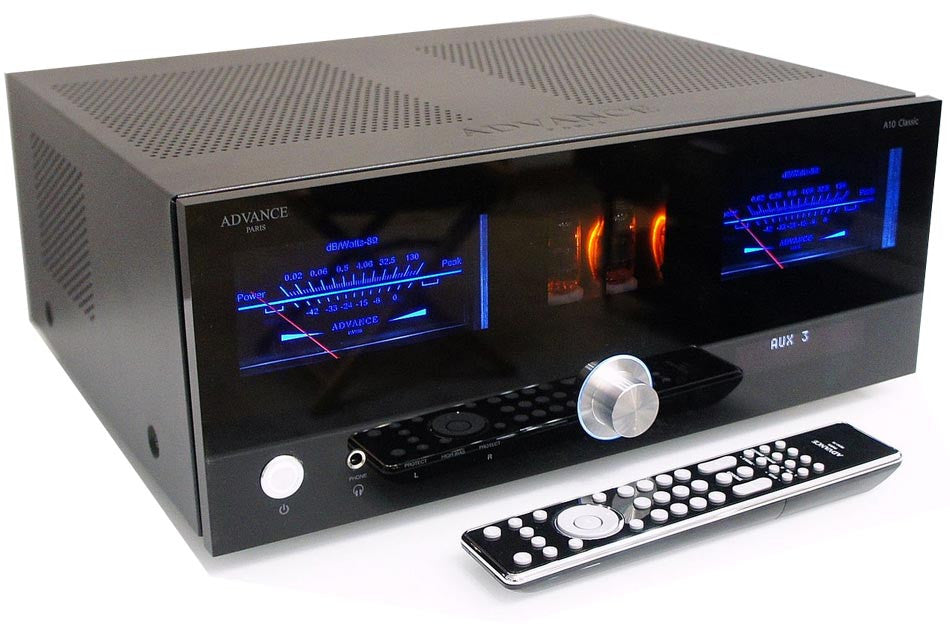

With our new A10 CLASSIC amplifier, our aim was to offer an audiophile integrated amplifier inspired by the famous X-i1100, acclaimed for its musicality and liveliness.
The A10 is fully future-proofed and easy to use. While its classic design remains timeless, it combines an ECC81/12AT7 tube preamplifier with a 2x130W class AB push-pull amplifier.
In short, the best of both worlds!
Modernity is also on display, thanks to a microprocessor that manages all the functions called up by the encoder: a long or short press accesses the menus.
We can scroll through the inputs: 6 analog on RCA with an MM phono with three capacitance settings (100, 200, 320 pf), a balanced line on XLR, 5 digital including 3 optical, an S / PDIF and a USB audio, plus a connector for an aptX XFTB01 or XFTB02 bluetooth receiver (optional).
A USB-A socket accepts MP3 audio files from a portable music player or USB memory stick. Original: two HDMI sockets, one for a DVD to benefit from the A10's audio signal quality, and an HDMI ARC socket to connect a CEC protocol display, can be activated in the system configuration menu.
Also shown here are system information, speaker selection (A, B or A+B), loudness, bass, treble or bypass settings, and auto sleep (or not) from 5 to 90 min.
The trigger In/Out input switches the A10 on and off remotely, or from the A10 to another device connected via the minijacks.
The A10 offers the possibility of connecting two subwoofers. A Pre-Out output allows connection of an additional power amp.
A fixed Rec Out output is intended for a cassette, MD or other type of recorder.

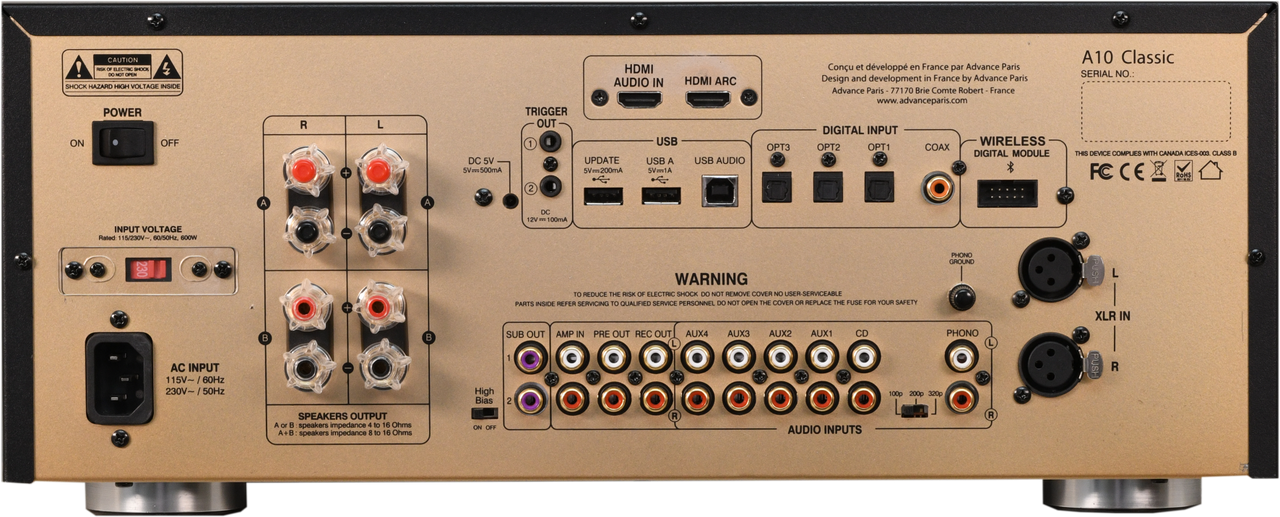

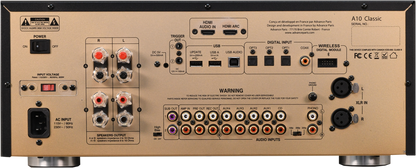

At the rear, the High Bias switch activates Class A polarization on the first watts of the power stage.
The A10 is a real winner, and can even hold its own against much more ambitious and expensive models.
Tube pre-amplification
The A12 Classic is equipped with 2 tubes on the pre-amplification section for a musical, non-aggressive sound.
|
Output power 8Ω
|
2 x 130 W RMS
|
|
Output power 4Ω
|
2 x 190 W RMS
|
|
Bandwidth
|
(-3dB) 10Hz-35kHz
|
|
Tone
|
+/- 10 dB
|
|
Distortion
|
< 0.1%
|
|
Signal-to-noise ratio
|
> 90 dB
|
|
Channel separation
|
> 70 dB
|
|
Input impedance
|
47KΩ
|
|
Phono input impedance
|
47KΩ
|
|
Amplifier input level
|
< 300mV
|
|
Phono MM/MC input level
|
2.5mV
|
|
Mains voltage
|
115-230V
|
|
Max. power consumption
|
400
|
|
Transformer
|
1
|
|
Width
|
430 mm
|
|
Height
|
175 mm
|
|
Depth
|
385 mm
|
|
Net weight
|
14.5 kg
|
|
Gross weight
|
17 kg
|
|
CD input
|
1
|
|
Tuner input
|
1
|
|
Auxiliary input
|
4
|
|
Analog RCA input
|
1
|
|
Record output
|
1
|
|
Subwoofer output
|
2, Mono, Low-pass 400 Hz
|
|
Amplifier-preamplifier
|
Disconnectable
|
|
Optical input
|
1
|
|
USB A input
|
1
|
|
USB B input
|
1
|
|
Pair of speakers output
|
1
|
|
5-Volt output WTX 500
|
1
|
|
Settings
|
Treble, Balance, Bypass, Hi Bias switch, Bass, Volume
|
|
VU-Meter
|
Yes
|
|
Tubes
|
Yes
|
|
DAC
|
ESS 9018
|
