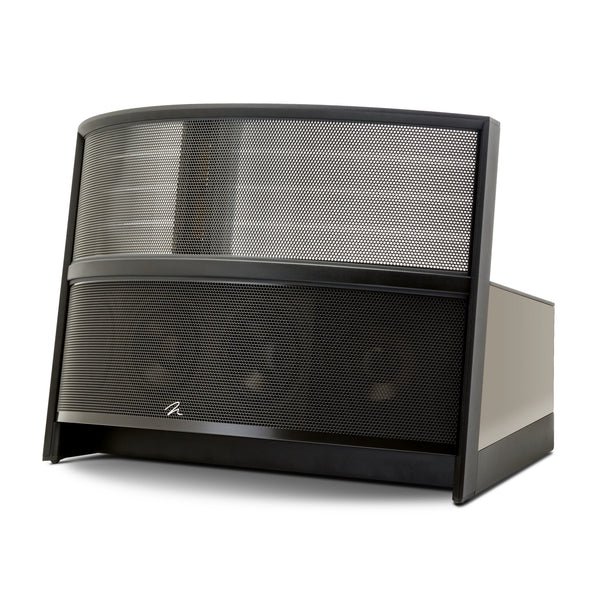

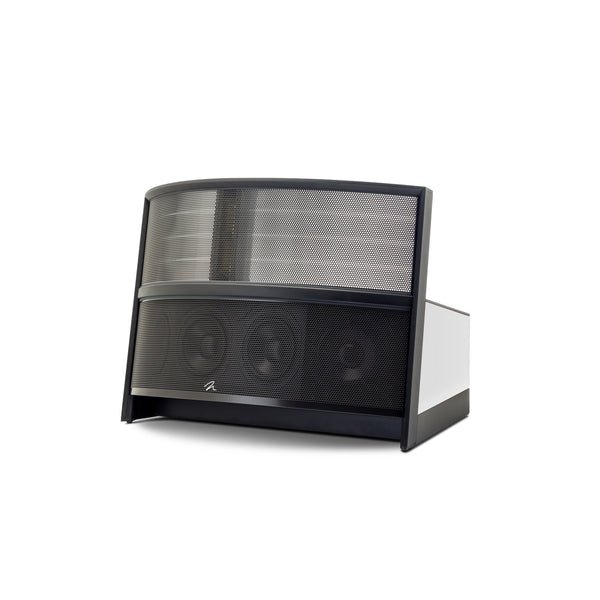

MartinLogan Illusion ESL C34A Centre Speaker
The ultimate centre speaker, with a 34-inch wide XStat CLS electrostatic transducer with the detailed imaging capability of Folded Motion XT tweeters, four 6.5-inch PoweredForce Forward woofers powered by a 250-watt Class-D amplifier
Frequency Response 45–23,000 Hz ±3dB
Recommended Amplifier Power 20—600 watts per channel
Horizontal Dispersion 30°
Sensitivity 90 dB/2.83 volts/meter
Impedance 6 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency 500, 2000 Hz
High Frequency Transducer Two 1.25" x 2.4" (3.2cm x 6.1cm) Folded Motion XT Transducers with 4.5" x 2.75" (11.4cm x 7cm) diaphragm.
Mid Frequency Transducer Patented CLS™ XStat™ electrostatic transducer.Panel Dimensions: 8" x 34.5" (20.3 x 87.6cm) » Radiating Area: 276 in² (1,778 cm²)
Low Frequency Transducer Four 6.5" (16.5cm) cast basket, high excursion, rigid aluminum cone with extended throw drive assembly, non-resonance asymmetrical chamber format.
Amplifier 1x 250 watts/channel (4 ohms), 500 watts peak
Weight:90 lbs. (40.9 kg)
Dimensions: 23.75" H x 32.35" W x 23.1" D
Warranty: 5 years parts and labour
