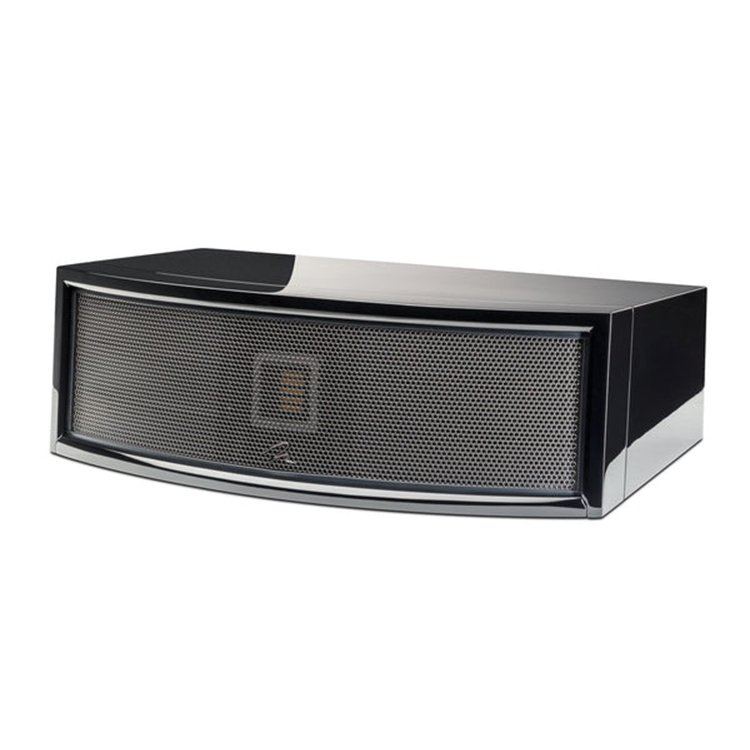

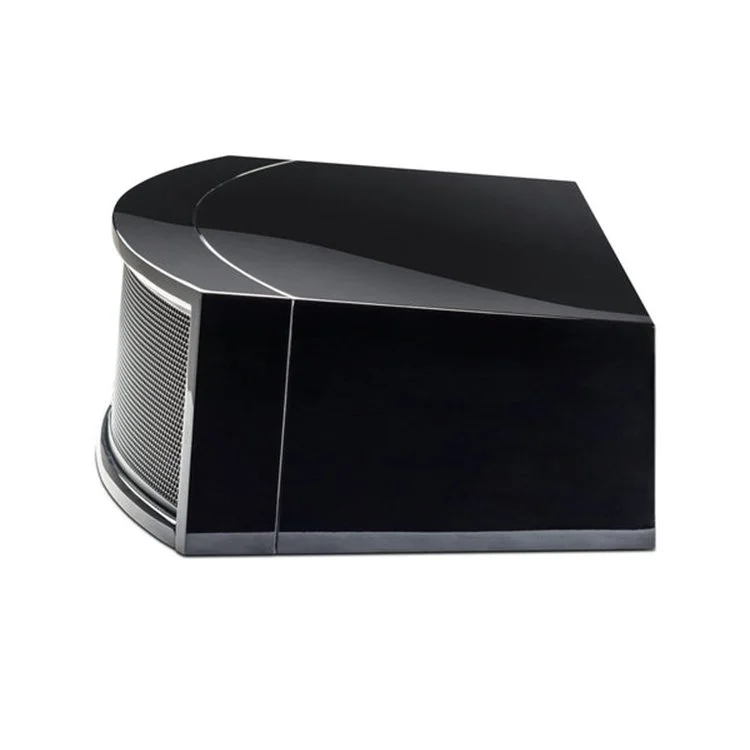

MartinLogan ElectroMotion ESL C Centre Speaker
The ElectroMotion ESL C Centre Speaker pairs perfectly with ESL and motion series speakers. With the exceptional mid-range dynamics of an electrostatic panel, the remarkable details delivered by a Folded Motion Tweeter
Frequency Response 66–23,000 Hz ±3dB
Recommended Amplifier Power 20—300 watts per channel
Horizontal Dispersion 30°
Sensitivity 89 dB/2.83 volts/meter
Impedance 4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency 600, 3400 Hz
High Frequency TransducerOne 1" x 1.4" (2.6cm x 3.6cm) Folded Motion Transducer with 5.25" x 1.75" (13.3cm x 4.4cm) diaphragm.
Mid Frequency TransducerXStat™ CLS™ electrostaic transducer. Panel Dimensions: Two 6.375" x 9" (16.2 x 22.8cm) Radiating Area: 114 in² (740 cm²)
Low Frequency Transducer Two 5.25" (13.3 cm) high excursion, high-rigidity aluminum cone with extended throw driver assembly, non-resonance asymmetrical chamber format.
Weight:32 lbs. (22.7 kg)
Dimensions: 7.6" H x 22.8" W x 16.1" D
Warranty:5 years parts and labour
