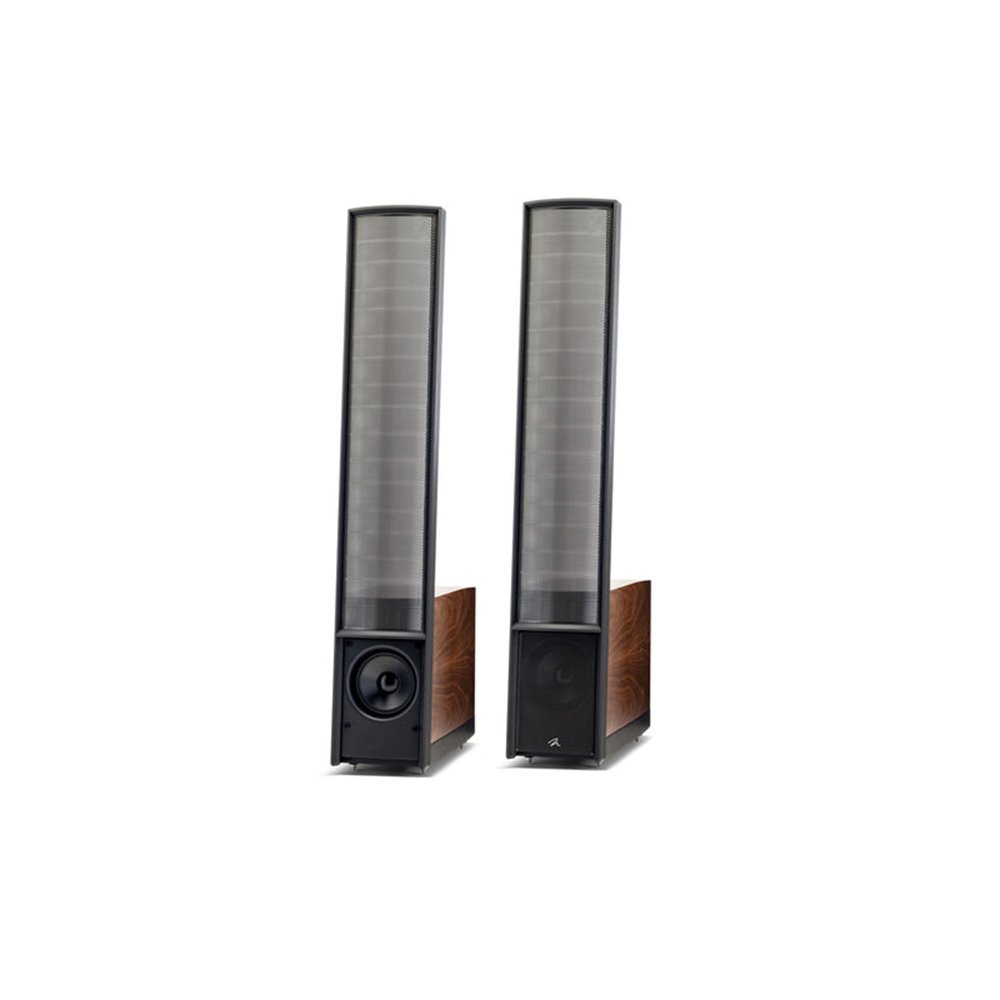

MartinLogan Classic ESL 9 Tower Speakers - Pair
The MartinLogan Classic ESL 9 are a passive design pair of ESL speakers with a 9.2" wide electrostatic transducer and dual 8 inch woofers. These speakers produce a rich transparent sound.
Price is for 2 speakers (1 pair)
Frequency Response 34–23,000 Hz ±3dB
Recommended Amplifier Power 20—400 watts per channel
Horizontal Dispersion 30°
Vertical Dispersion 44" (112cm) line source
Sensitivity 90 dB/2.83 volts/meter
Impedance 4 Ohms, 0.8 at 20kHz Compatible with 4, 6, or 8 Ohm rated amplifiers
Crossover Frequency 380Hz
High Frequency Transducer XStat™ CLS™ electrostatic transducer
Panel Dimensions: 44" x 9.2" (112 x 23cm) » Radiating Area: 405 in² (2,576 cm² )
Two 8” (20.3 cm) cast basket, high excursion, rigid aluminium cone woofers with extended throw drive assembly, non-resonance asymmetrical chamber format
Custom-wound audio transformer, air core coils, low DCR steel laminate coils, polyester capacitors
Weight: 78 lbs. (35.4 kg)
Dimensions: 59.8" H x 10.4" W x 25.4" D
Warranty: 5 years parts and labour
