Dali Opticon 1 MK2 Bookshelf Loudspeaker (pr)
The OPTICON 1 MK2 is a compact stand mount speaker designed to be installed close to room boundaries, while the Dual Flare reflex loaded enclosure enables the OPTICON 1 MK2 to deliver remarkable bass performance for its size that integrates perfectly with the inherent midrange and high frequency quality of its drivers.

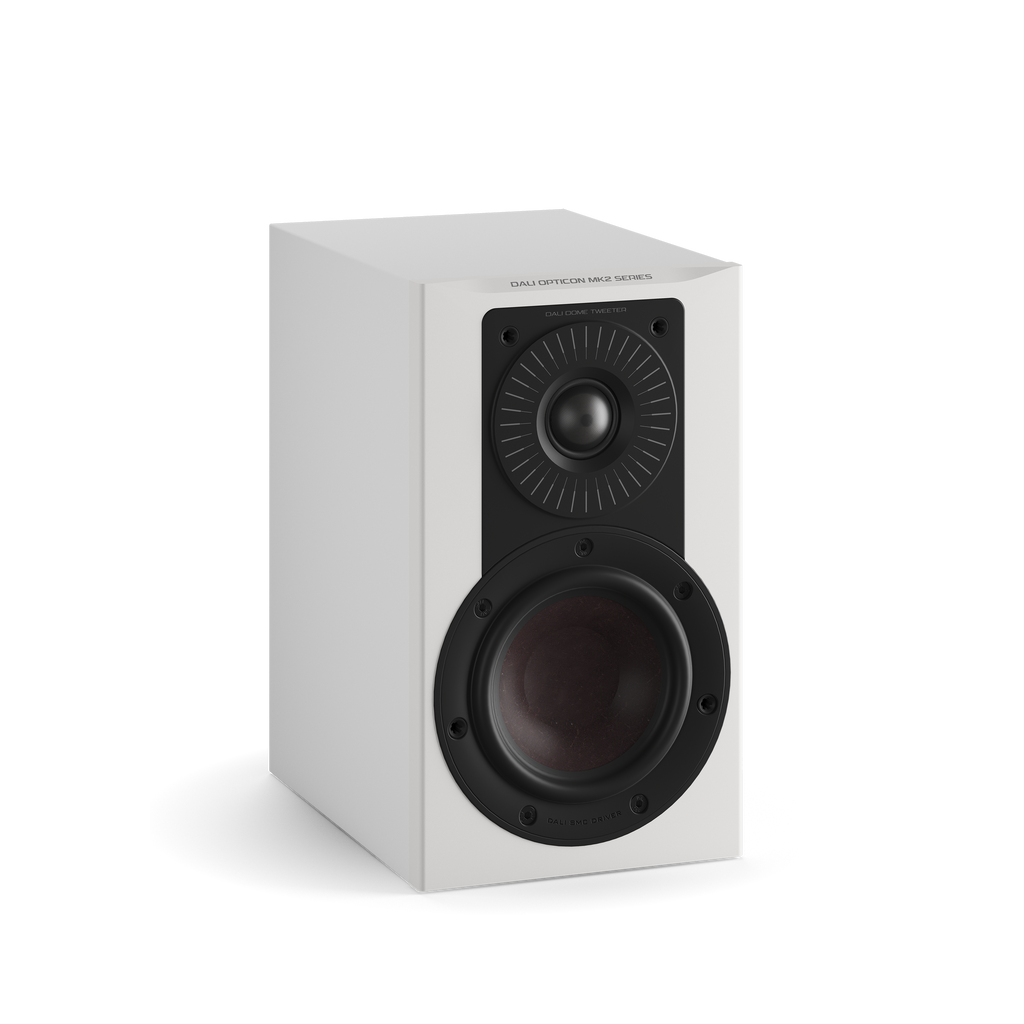

The compact OPTICON 1 MK2 speaker is a true 2-way compact performer holding a 4¾" wood fibre woofer matched with a new large 29 mm soft dome tweeter derived from the CALLISTO series.
The OPTICON 1 MK2 offers a level of performance unavailable from any other OPTICON model. The stand mount speaker is a natural distributor of high performance audio in compact to medium sized listening spaces where it has room to breathe and deliver its dynamic and explicitly defined performance.
The manufacturing of the compact speaker remains fully Danish - as with the MK1 series. Fully assembled at our factory in Denmark - from components produced in-house or sourced from the best local specialist manufacturers and further afield.
The OPTICON 1 MK2 is available in Satin Black, Satin White and Tobacco Oak.
SPECS
Frequency Range (+/-3 dB) [Hz]: 62 - 26,500
Sensitivity (2,83 V/1 m) [dB]: 86
Nominal Impedance [ohms]: 4
Maximum SPL [dB]: 105
Recommended Amplifier Power [W]: 25 - 100
Crossover Frequency [Hz]: 2,000
Crossover Principle: 2-way
High frequency driver, Quantity: 1 x 29 mm
High frequency driver, Diaphragm type: Soft Textile Dome
Low frequency driver, Quantity: 1 x 4 3/4"
Low frequency driver, Diaphragm type: Wood Fibre Cone
Enclosure type: Bass Reflex
Bass Reflex Tuning Frequency [Hz]: 61.5
Connection Input: Single Wire
Recommended Placement: On-Wall Shelf or stand
Recommended Distance From Wall [cm]: 2 - 80
Dimensions With Base (HxWxD) [mm]: 261 x 152 x 231
Weight [kg]: 4.5
Accessories Included: Manual, Rubber Bumpers, Wall Bracket
