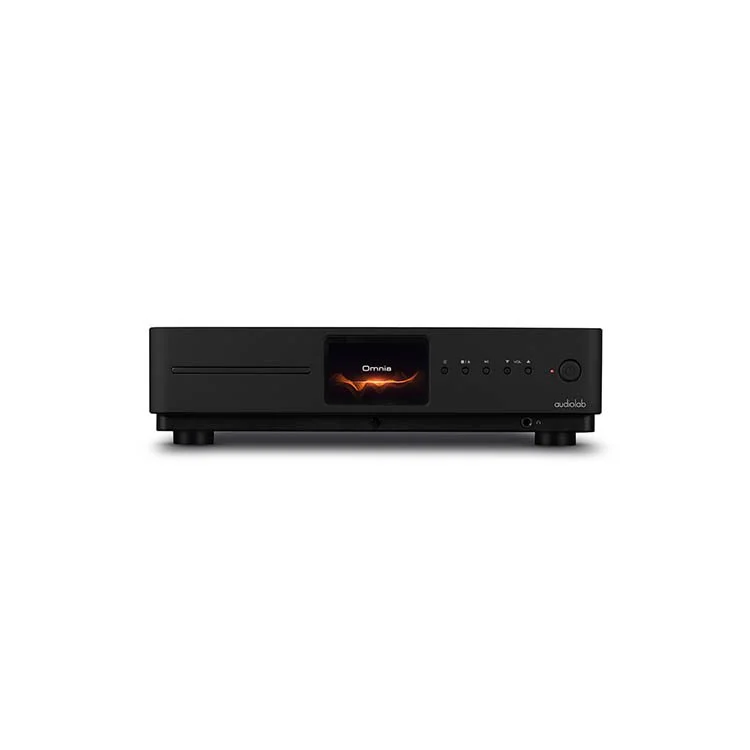

Audiolab Omnia - All-in-One Wireless Music Player
Blurring the lines that generally differentiate hi-fi and lifestyle, Omnia brings all of the pedigree that helps make audiolab electronics the connoisseur’s choice. Yet, indulgence in design, material aesthetics, and useability mean it has all of the functionality to make it a sleek, convenient and easy-to-use center-piece, for an uncompromising home audio system.
The audiolab Omnia maintains the award-winning, instantly recognisable, audiolab design cues. Unfussy yet striking in appearance, the curved, brushed aluminum chassis is ‘typical audiolab’ but evolved to suit the modern-day living environment. Omnia is attractive but discreet, offering the perfect balance for living rooms and listening rooms alike.
In a world where music is more available than ever and sources more varied than ever, Omnia doesn’t discriminate. However you listen to your music, Omnia has got you covered. To sum it up, the audiolab Omnia is a cd player, integrated amplifier, wireless streaming player, DAC, headphone amplifier, and pre-amp – in one single unit!
High-Performance CD Drive
Extremely robust and reliable; the Omnia’s CD drive builds on the class-leading 6000CDT CD transport with a read-ahead digital buffer to reduce disc-reading failures. Such is the performance of this CD mechanism, Omnia is able to play scratched and damaged CDs that are unreadable by conventional mechanisms.
Connectivity Options for Traditional Audio Sources
Utilising high-quality analogue preamp circuitry, akin to the acclaimed audiolab 6000 series, coupled to line-level RCA inputs to connect analogue sources, the preamp circuitry is kept as simple as possible. Using high-quality components to maintain signal purity, with line input signals passing to a precision analogue volume stage, Omnia is an outstanding pre-amp, in its own right.
A dedicated MM phono input means a turntable can be directly connected to Omnia via a high-quality, low-noise, phono stage with precise RIAA equalisation. This phono stage is continue evolution on the award winning 6000 series – engineered to make the most of the music nestling within an LP’s grooves.
Networked Audio Playback
For networked audio playback, the audiolab Omnia is equipped with an ethernet port, lending itself to a wired connection and the wider bandwidth requirements of high-resolution digital audio.
For the most convenient access to wireless music playback, Omnia offers Bluetooth connectivity with high-quality, low latency, with the Bluetooth aptX standard.
The 6000A Play’s Wi-Fi networking is powered by DTS Play-Fi: an app-controlled platform enabling high-quality, whole-home wireless audio, capable of streaming hi-res music up to 24-bit/192kHz and supported by a greater range of established audio brands than any other wireless platform.
USB DAC Section & More
The USB DAC section is based upon audiolab’s long-term partner, and multi-award-winning, pedigree. The new ESS9038 Q2M SABRE 32 Reference DAC performs D/A conversion, utilising ESS Technology’s 32-bit HypersStream II architecture and Time Domain Jitter Eliminator to deliver ultra-low noise and high dynamic range.
No company knows more about making the most of this technically excellent, but challenging, DAC technology than audiolab; the universally acclaimed M-DAC was one of the first home audio components to incorporate an ESS chip back in 2011, and the company has been honing its implementation ever since.
Via the USB DAC section, the audiolab Omnia also offers full decoding of MQA (Master Quality Authenticated). MQA is an award-winning British technology that delivers the sound of the original master recording. The Omnia includes MQA decoder technology, which enables you to play back MQA audio files and streams – received via the USB input – at the original file’s full resolution and passes the signal through its DAC and preamp stages. MQA files are available via subscription to TIDAL’s ‘HiFi’ tier (among other sources).
Like To Use Headphones
The Omnia incorporates a dedicated headphone amp with current-feedback circuitry. Its gain bandwidth and high slew rate ensure a dynamic, detailed and engaging performance with all manner of headphone types – more boxes ticked for this most all-in-one of all-in-one systems!
Specs
General Description: Integrated Amplifier
Design Philosophy and Core Technology:
2x50W (8ohm) / 2x75W (4ohm) Class AB
ES9038Q2M 32-bit DAC
- 4.3" (800x480mm) large size full view IPS LCD
Built in certified hardware MQA Full decoder (PC USB, Coax/Optical)
CD playback compatible with CD, CD-R, CD-RW discs
USB memory device support (MP3/WMA/AAC/WAV)
DTS Play-Fi technology (IEEE 802.11 a/b/g/n/ac)
Streaming service support includes Amazon Music, Spotify, TIDAL, KKBox, SiriusXM, Napster, Internet Radio, Deezer, iHeartRadio, PANDORA, Qobuz, QQmusic and more
Multi-room / multi speaker group support
Bluetooth 5.0 (aptX/aptX LL) streaming
Low Noise Moving Magnet Phono stage
Dedicated Current-Feedback Headphone AMP
Integrated / PRE-POWER / PRE only Modes
Android / iOS / Kindle Fire / Windows PC Control Support
USB firmware upgrade input
Inputs:
3 x Analogue, 1 x Phono (MM) , 1 x Power Amplifier, 2 x SPDIF (Coax),
2 x SPDIF (Optical), 1 x DTS Play-Fi Streaming, 1xPC USB(USB B),
1xUSB HDD(USB A), 1 x Bluetooth(aptX/aptX LL), 1 x 12V Trigger
Outputs:
1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger
Sampling Frequency:
Optical / Coaxial:44.1kHz ---192kHz
Optical / Coaxial: 44.1kHz ---192kHz
PC USB: 44.1kHz - 768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
Preamplifier Section
Gain:
+8dB (Line)
+47dB (Phono MM)
Input Sensitivity:
720mV (Line, Volume = 0dB)
3.1mV (Phone MM, Volume=0dB)
Input Impedance:
10K (Line)
47K // 100pF (Phono MM)
Total Harmonic Distortion (THD):
< 0.0004% (1KHz @ 2V, Volume = 0dB)
Frequency Response:
20Hz-20kHz (+/-0.1dB)
Output Voltage:
2.3V max. (Volume = 0dB)
Output Impedance: 100 ohm
Signal-to-Noise Ratio:
>110dB (Line,A-weighted)
76dB (Phono MM,A-weighted)
DAC
D to A Converte: ES9038Q2M
Total Harmonic Distortion (THD): < 0.0006% (1KHz @ 0dBFS)
Output level (0dBFS, 1KHz): 2.1Vrms
Max. Sampling Frequency:
Optical, Coaxial: 192KHz
Ethernet,Wi-Fi: 192KHz
USB A：48kHz
PC USB: PCM768kHz, DSD512
Signal-to-noise Ratio (S/N): 114dB (A-weighted)
Power Amplifier Section
Gain: +29dB
Rated Power Output:
2 x 50W (8 ohm, THD < 1%)
2 x 75W (4 ohm, THD < 1%)
Frequency Response: 20Hz-20kHz (+/-0.3dB)
Total Harmonic Distortion (THD): < 0.003% (1kHz @ 40W / 8ohm)
Input Sensitivity: 720mV
Signal-to-Noise Ratio (S/N): 110dB (A - weighted)
Max. Output Current: 9A
Headphone Amplifier
Total Harmonic Distortion (THD): < 0.01% (1kHz, 50mW )
Output Impedance: 10ohm
Load impedance: 20-600 ohm
General
Standby Power Consumption: < 0.5W
Net Weight: 9.1kg
Gross Weight: 11kg
Dimensions (mm) (W x H x D): 440 x156 x 327
Carton Size (mm) (W x H x D): 540 x 412 x 210
Finish: Black / Silver
Power Requirements (depending on region):
220-240V ~ 50/ 60Hz
100-120V ~ 50/ 60Hz
Standard Accessories: Power Cord, Remote Control, User Manual, Antennas, etc.
